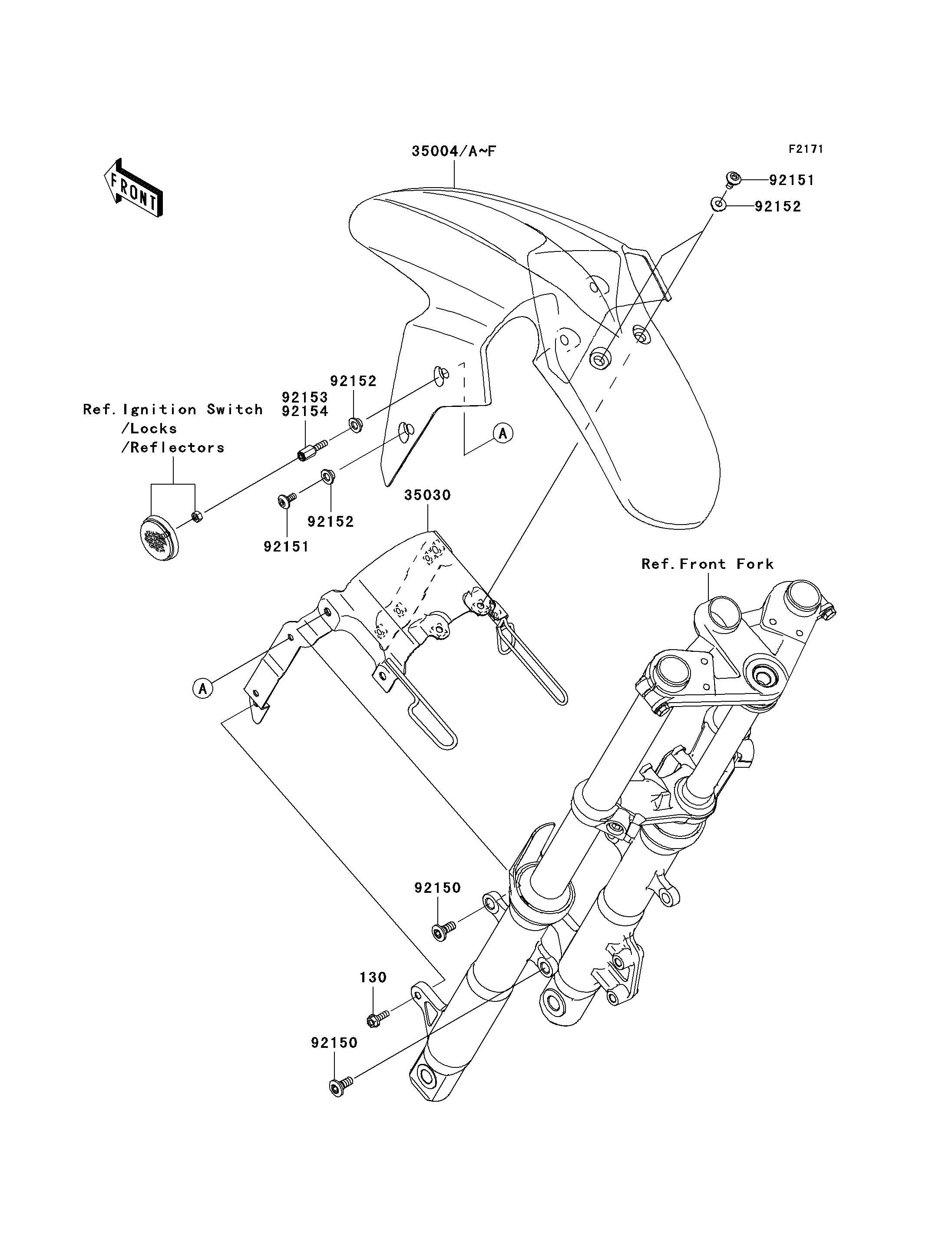

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X18 | 130 | 130BB0618 | 2 | ||
| FENDER-FRONT,EBONY | 35004A | 35004-0079-H8 | 1 | ||
| BRACE-ASSY,FRONT FENDER | 35030 | 35030-0006 | 1 | ||
| BOLT,SOCKET,8X20 | 92150 | 92150-1760 | 4 | ||
| BOLT,SOCKET,6X14 | 92151 | 92151-1654 | 4 | ||
| COLLAR,6.8X10(16)X6.6 | 92152 | 92152-0842 | 6 | ||
| BOLT,6MM | 92153 | 92153-1789 | 2 | ||
| FENDER-FRONT,M.I.BLUE | 35004E | 35004-0079-35C | 1 | CN |
| BOLT-FLANGED,6X18 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| FENDER-FRONT,EBONY | |
| REF # | 35004A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACE-ASSY,FRONT FENDER | |
| REF # | 35030 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,8X20 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X14 | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6.8X10(16)X6.6 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BOLT,6MM | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| FENDER-FRONT,M.I.BLUE | |
| REF # | 35004E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
