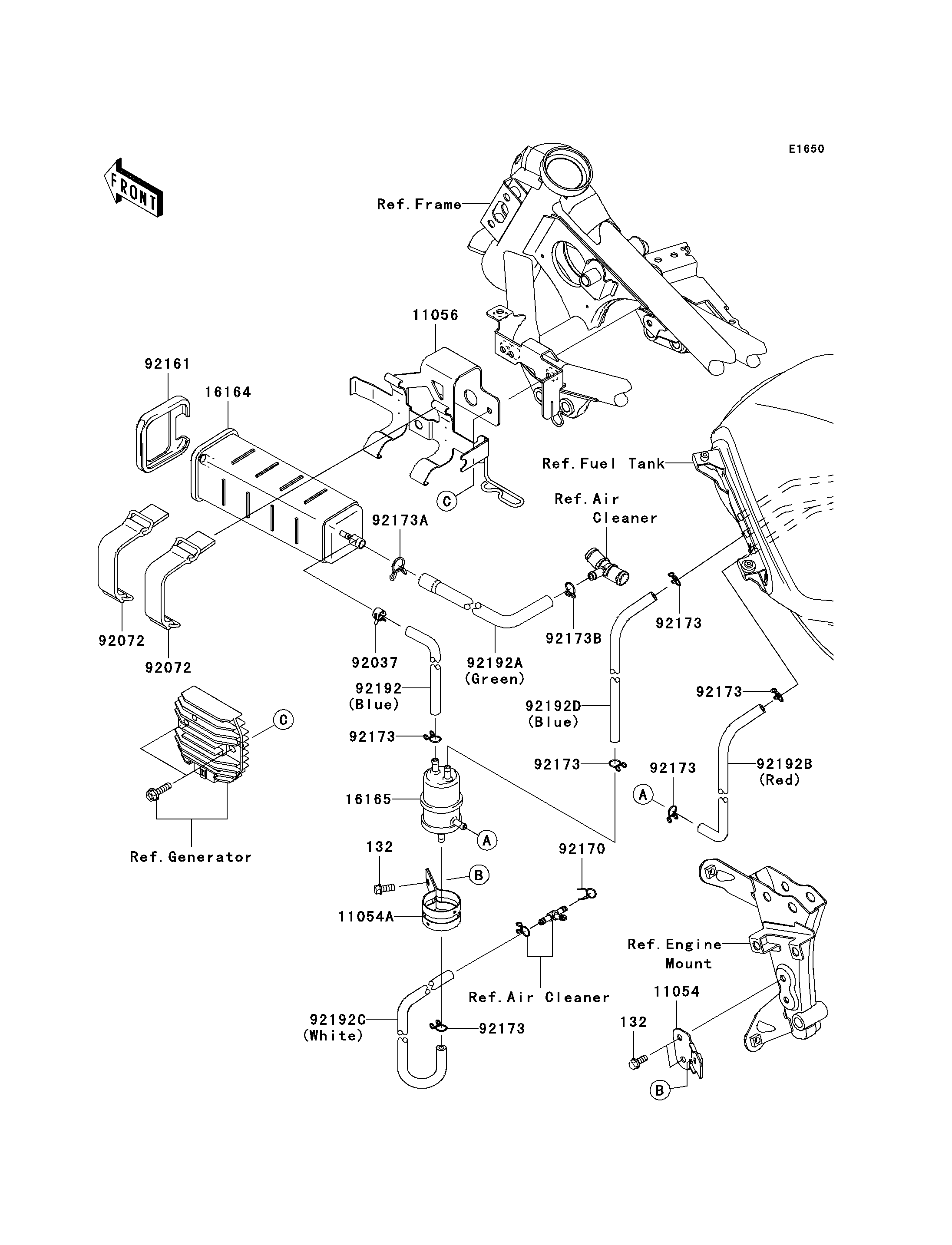

2011 NINJA® 250R - Fuel Evaporative System(CA)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL,6X14 | 132 | 132BA0614 | 3 | CA | |
| BRACKET,SEPARATOR | 11054 | 11054-1559 | 1 | CA | |
| BRACKET | 11054A | 11054-1560 | 1 | CA | |
| BRACKET,CANISTER | 11056 | 11056-0122 | 1 | CA | |
| CANISTER | 16164 | 16164-0009 | 1 | CA | |
| SEPARATOR | 16165 | 16165-1001 | 1 | CA | |
| CLAMP | 92037 | 92037-1601 | 1 | CA | |
| BAND,L=90 | 92072 | 92072-0135 | 2 | CA | |
| DAMPER | 92161 | 92161-0762 | 1 | CA | |
| CLAMP | 92170 | 92170-1450 | 1 | CA | |
| CLAMP | 92173 | 92173-0050 | 6 | CA | |
| CLAMP,14MM | 92173A | 92173-0192 | 1 | CA | |
| CLAMP,11.5MM | 92173B | 92173-0197 | 1 | CA | |
| TUBE,SEPARATOR-CANISTER,BLUE | 92192 | 92192-0464 | 1 | CA | |
| TUBE,CANISTER-FITTING,GREEN | 92192A | 92192-0465 | 1 | CA | |
| TUBE,SEPARATOR-TANK,RED | 92192B | 92192-0466 | 1 | CA | |
| TUBE,SEPARATOR-FITTING,WHITE | 92192C | 92192-0467 | 1 | CA | |
| TUBE,TANK-SEPARATOR,BLUE | 92192D | 92192-0813 | 1 | CA |
