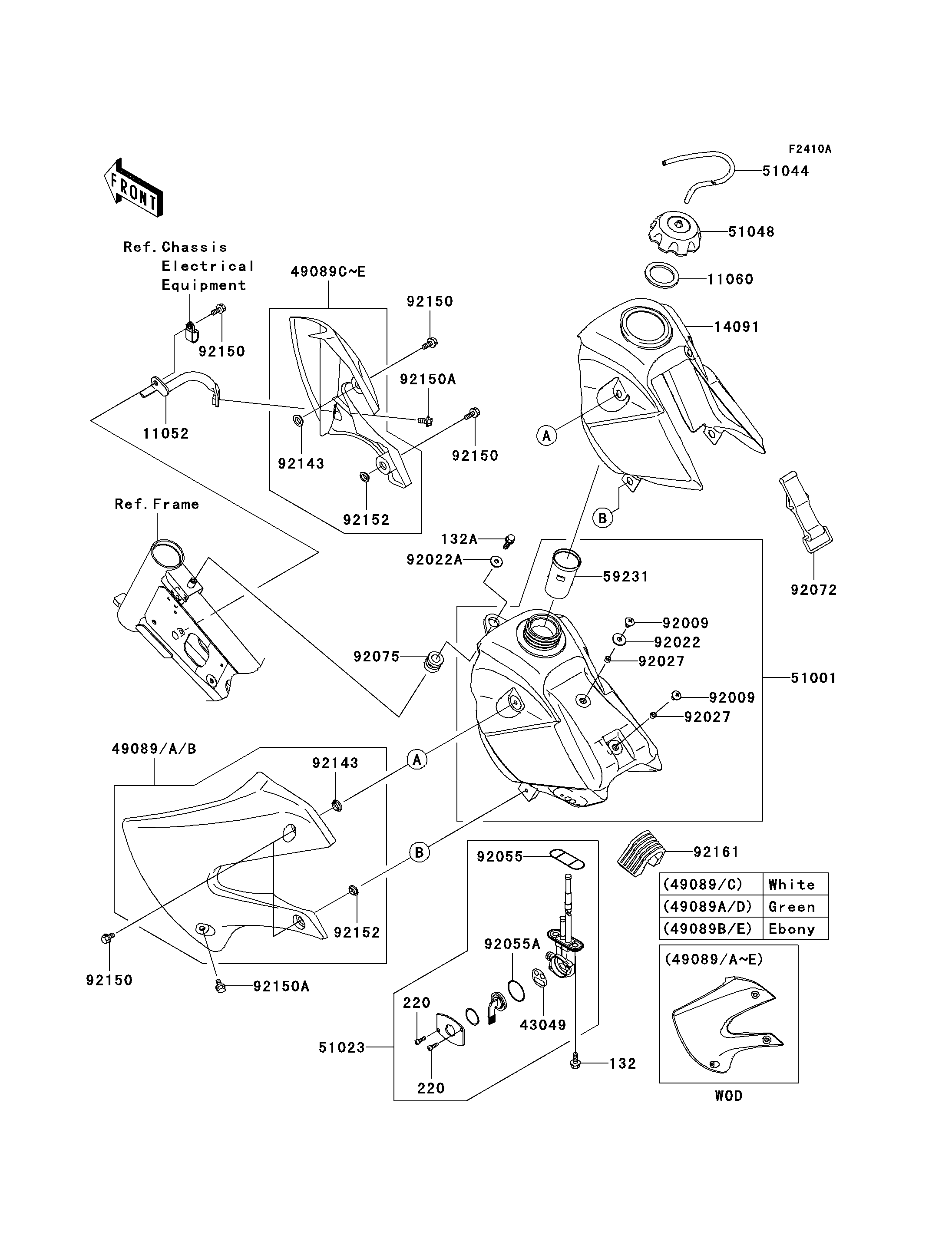

2009 KLX®110 - Fuel Tank(A8F-A9FA)

DOWNLOAD PDF
SELECT A NEW PART
132
132A
220
220
11052
11060
14091
43049
49089B
49089E
51001
51023
51044
51048
59231
92009
92009
92022
92022A
92027
92027
92055
92055A
92072
92075
92143
92143
92150
92150
92150
92150
92150A
92150A
92152
92152
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X12 132 132BA0612 2
BOLT-FLANGED-SMALL,6X14 132A 132BA0614 1
SCREW-PAN-CROS,3X8 220 220AA0308 2
BRACKET,SHROUD,RH 11052 11052-1639 1
GASKET,FUEL TANK CAP 11060 11060-1340 1
COVER,FUEL TANK,F.BLACK 14091 14091-0884-6Z 1
PACKING,TAP VALVE 43049 43049-1091 1
SHROUD-ENGINE,LH,EBONY 49089B 49089-1144-6C 1
SHROUD-ENGINE,RH,EBONY 49089E 49089-1145-6C 1
TANK-COMP-FUEL,F.BLACK 51001 51001-0222-6Z 1
TAP-ASSY,FUEL 51023 51023-1342 1
TUBE-ASSY 51044 51044-1185 1
CAP-ASSY-TANK,FUEL 51048 51048-0014 1
FILLER 59231 59231-1096 1
SCREW,6X10 92009 92009-1530 2
WASHER,PLAIN,6MM 92022 92022-165 1
WASHER,6.5X24X2 92022A 92022-1690 1
COLLAR,6.2X7.8X5 92027 92027-2096 2
RING-O,FUEL TAP PACKING 92055 92055-1348 1
RING-O,TAP LEVER 92055A 92055-1419 1
BAND,FUEL TANK 92072 92072-1229 1
DAMPER 92075 92075-1787 1
COLLAR 92143 92143-1196 2
BOLT,6X12 92150 92150-1435 5
BOLT,FLANGED,6X16 92150A 92150-1506 2
COLLAR 92152 92152-1235 2
DAMPER,FUEL TANK,RR 92161 92161-1077 1
