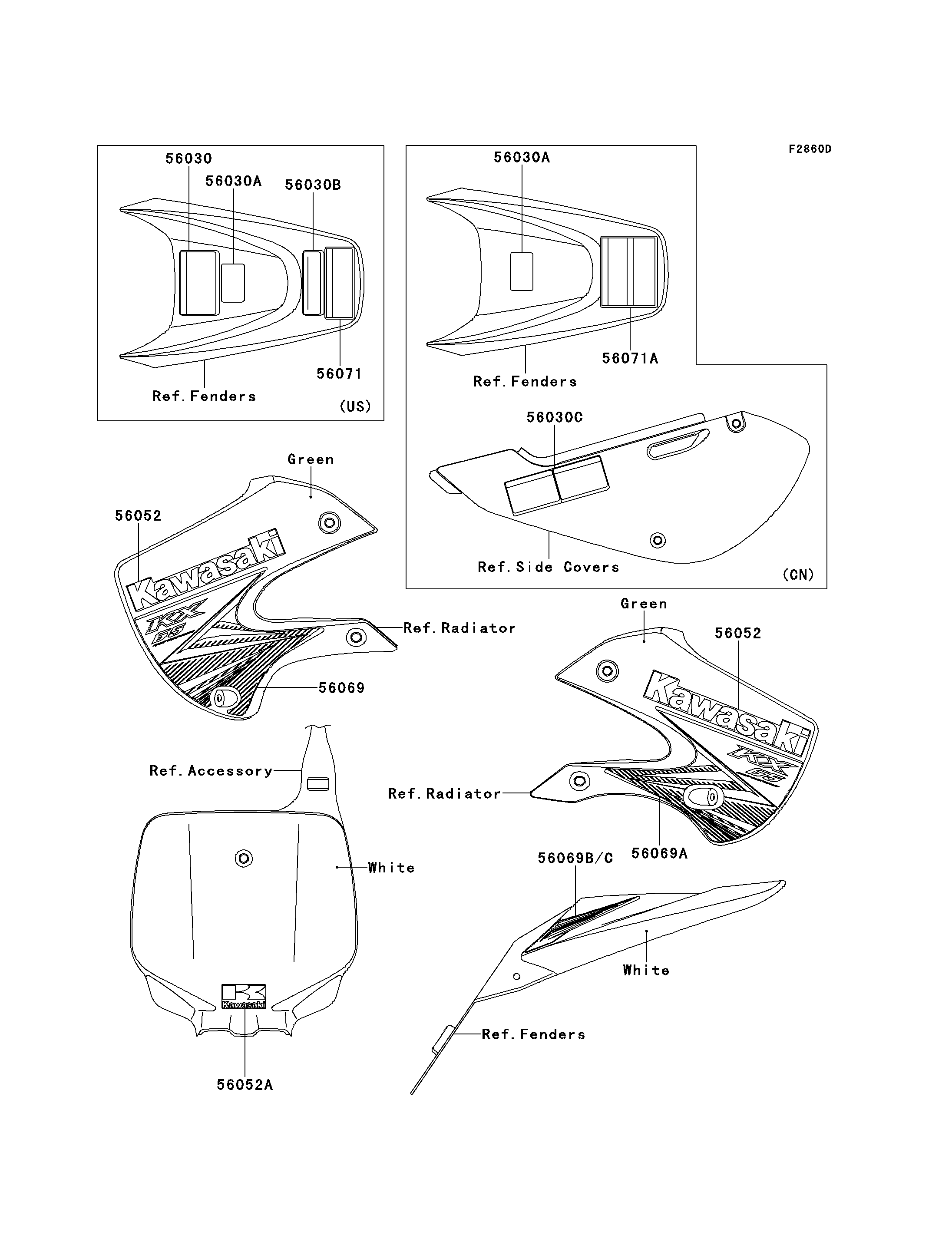

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LABEL,32:1 | 56030A | 56030-1230 | 1 | ||
| MARK,SHROUD,KAWASAKI | 56052 | 56052-0930 | 2 | ||
| MARK,HEAD LAMP COVER,KAWASAKI | 56052A | 56052-0968 | 1 | ||
| PATTERN,SHROUD,LH | 56069 | 56069-4018 | 1 | ||
| PATTERN,SHROUD,RH | 56069A | 56069-4019 | 1 | ||
| PATTERN,RR FENDER,LH | 56069B | 56069-4020 | 1 | ||
| PATTERN,RR FENDER,RH | 56069C | 56069-4021 | 1 | ||
| LABEL,DISCLAIMER | 56030 | 56030-1229 | 1 | US | |
| LABEL,NOISE EMISSION | 56030B | 56030-1231 | 1 | US | |
| LABEL,DISCLAIMER | 56030C | 56030-1233 | 1 | CN | |
| LABEL-WARNING,IMPORTANT NOTICE | 56071 | 56071-0028 | 1 | US | |
| LABEL-WARNING,IMPORTANT NOTICE | 56071A | 56071-0029 | 1 | CN |
