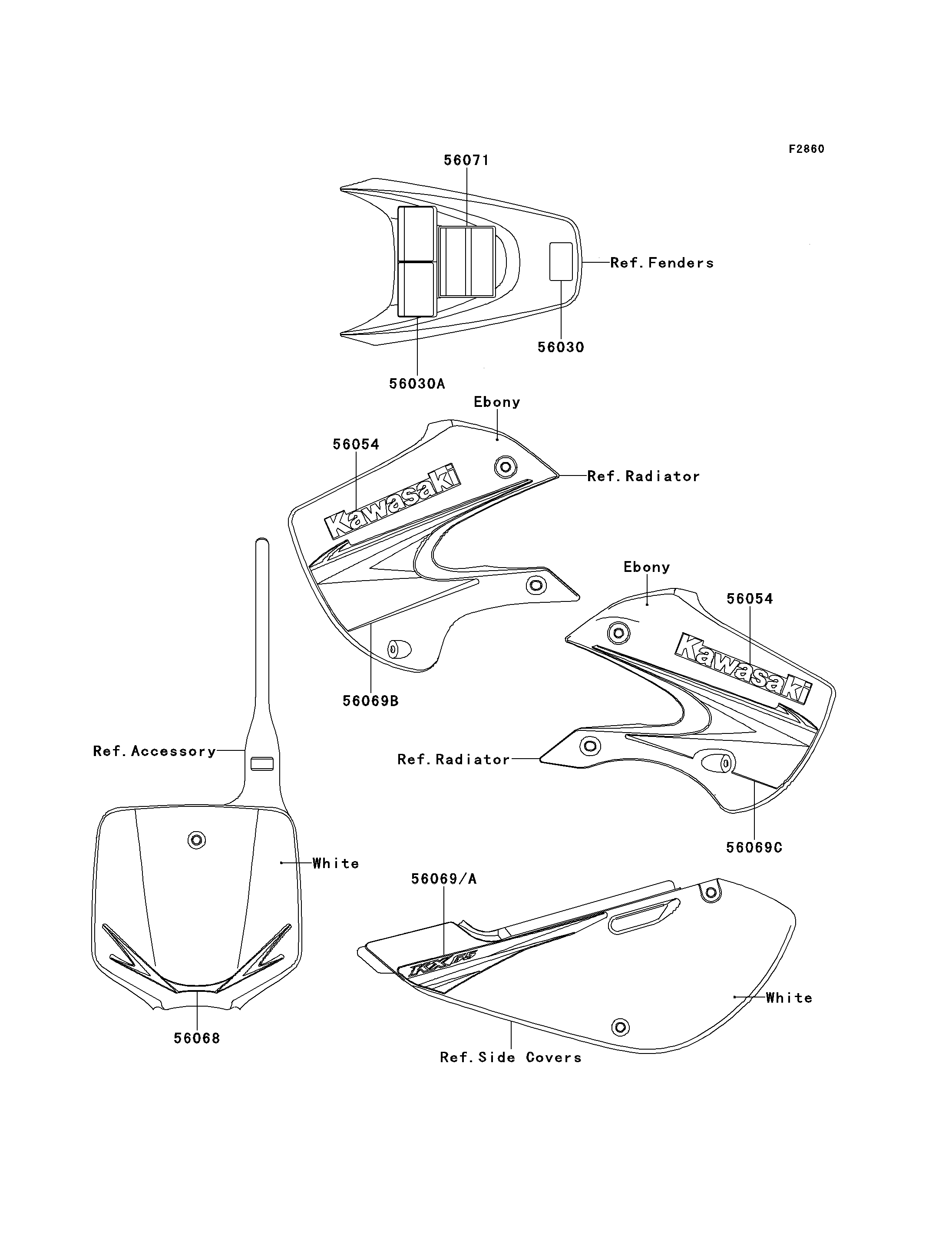

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LABEL,32:1 | 56030 | 56030-1230 | 1 | ||
| LABEL,DISCLAIMER | 56030A | 56030-1233 | 1 | ||
| MARK,SHROUD,KAWASAKI | 56054 | 56054-0485 | 2 | ||
| PATTERN,NUMBER PLATE | 56068 | 56068-1265 | 1 | ||
| PATTERN,SIDE COVER,LH | 56069 | 56069-0019 | 1 | ||
| PATTERN,SIDE COVER,RH | 56069A | 56069-0020 | 1 | ||
| PATTERN,SHROUD,LH | 56069B | 56069-0021 | 1 | ||
| PATTERN,SHROUD,RH | 56069C | 56069-0022 | 1 | ||
| LABEL-WARNING,IMPORTANT NOTICE | 56071 | 56071-0029 | 1 |
