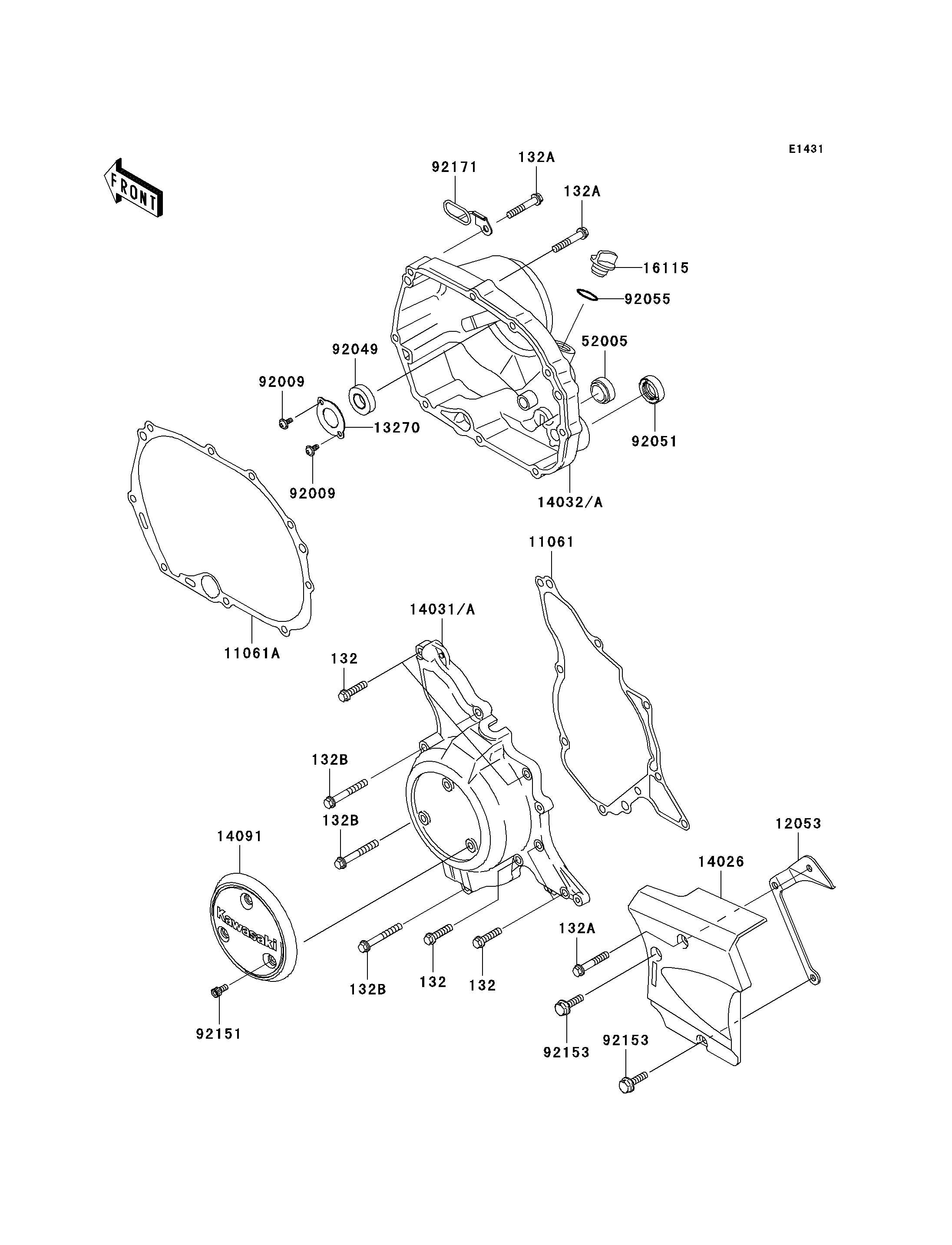

2008 KLX®110 - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
132
132
132
132A
132A
132A
132B
132B
132B
11061
11061A
12053
13270
14026
14031A
14032A
14091
16115
52005
92009
92009
92049
92051
92055
92151
92153
92153
92171
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X25 132 132BD0625 6
BOLT-FLANGED-SMALL,6X35 132A 132BD0635 10
BOLT-FLANGED-SMALL,6X45 132B 132BD0645 3
GASKET,GENERATOR 11061 11061-0125 1
GASKET,CLUTCH COVER 11061A 11061-0289 1
GUIDE-CHAIN,TENSION 12053 12053-1467 1
PLATE 13270 13270-1800 1
COVER-CHAIN 14026 14026-1285 1
COVER-GENERATOR 14031A 14031-1342 1
COVER-CLUTCH 14032A 14032-1529 1
COVER,HEAT INSULATOR 14091 14091-1444 1
CAP-OIL FILLER 16115 16115-1068 1
GAUGE,OIL LEVEL 52005 52005-0019 1
SCREW 92009 92009-1745 2
SEAL-OIL,AC0387E0 92049 92049-1595 1
SEAL-OIL,TB16267 92051 92051-003 1
RING-O,31.7X2.4 92055 92055-049 1
BOLT,SOCKET,5X10 92151 92151-1212 3
BOLT,6X20 92153 92153-1184 2
CLAMP,DRAIN TUBE 92171 92171-1124 1
