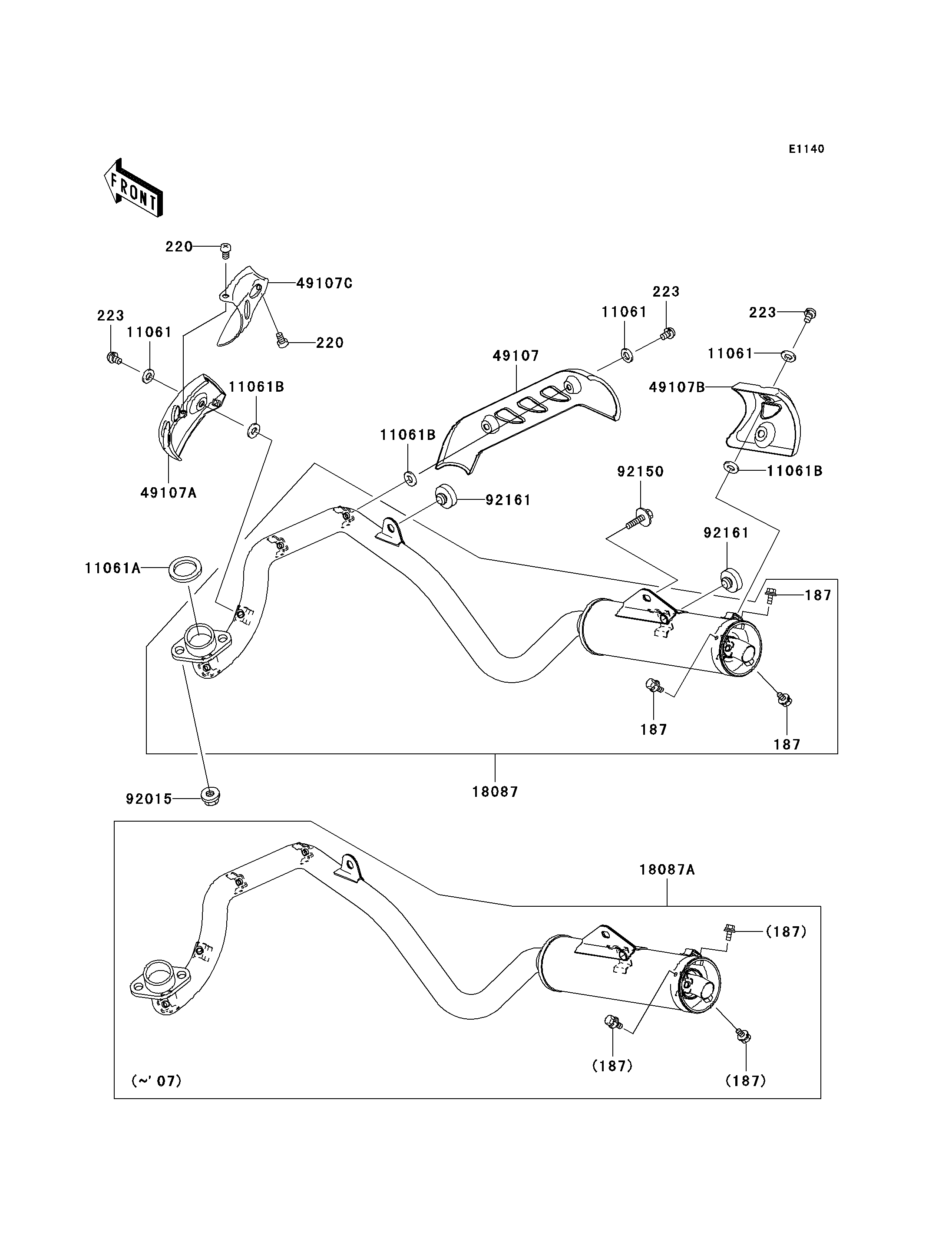

Parts Diagrams |
187
187
187
220
220
223
223
223
11061
11061
11061
11061A
11061B
11061B
11061B
18087
49107
49107A
49107B
49107C
92015
92150
92161
92161
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-UPSET-WSP,6X12 | 187 | 187AA0612 | 3 | ||
| SCREW-PAN-CROSS,5X8 | 220 | 220AB0508 | 2 | ||
| SCREW-PAN-WS-CROS,6X10 | 223 | 223AB0610 | 6 | ||
| GASKET,6.2X11.5X1.5 | 11061 | 11061-0372 | 6 | ||
| GASKET,EXHAUST PIPE | 11061A | 11061-1112 | 1 | ||
| GASKET,5.8X12X1.5 | 11061B | 11061-1148 | 6 | ||
| MUFFLER | 18087 | 18087-0176 | 1 | ||
| COVER-EXHAUST PIPE | 49107 | 49107-1213 | 1 | ||
| COVER-EXHAUST PIPE | 49107A | 49107-1217 | 1 | ||
| COVER-EXHAUST PIPE | 49107B | 49107-1218 | 1 | ||
| COVER-EXHAUST PIPE | 49107C | 49107-1221 | 1 | ||
| NUT,8MM | 92015 | 92015-1398 | 2 | ||
| BOLT,FLANGED,6X25 | 92150 | 92150-1507 | 1 | ||
| DAMPER,MUFFLER | 92161 | 92161-1284 | 2 |
| BOLT-UPSET-WSP,6X12 | |
| REF # | 187 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROSS,5X8 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-WS-CROS,6X10 | |
| REF # | 223 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| GASKET,6.2X11.5X1.5 | |
| REF # | 11061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| GASKET,EXHAUST PIPE | |
| REF # | 11061A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,5.8X12X1.5 | |
| REF # | 11061B |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| MUFFLER | |
| REF # | 18087 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-EXHAUST PIPE | |
| REF # | 49107 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-EXHAUST PIPE | |
| REF # | 49107A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-EXHAUST PIPE | |
| REF # | 49107B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-EXHAUST PIPE | |
| REF # | 49107C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,8MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X25 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,MUFFLER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
