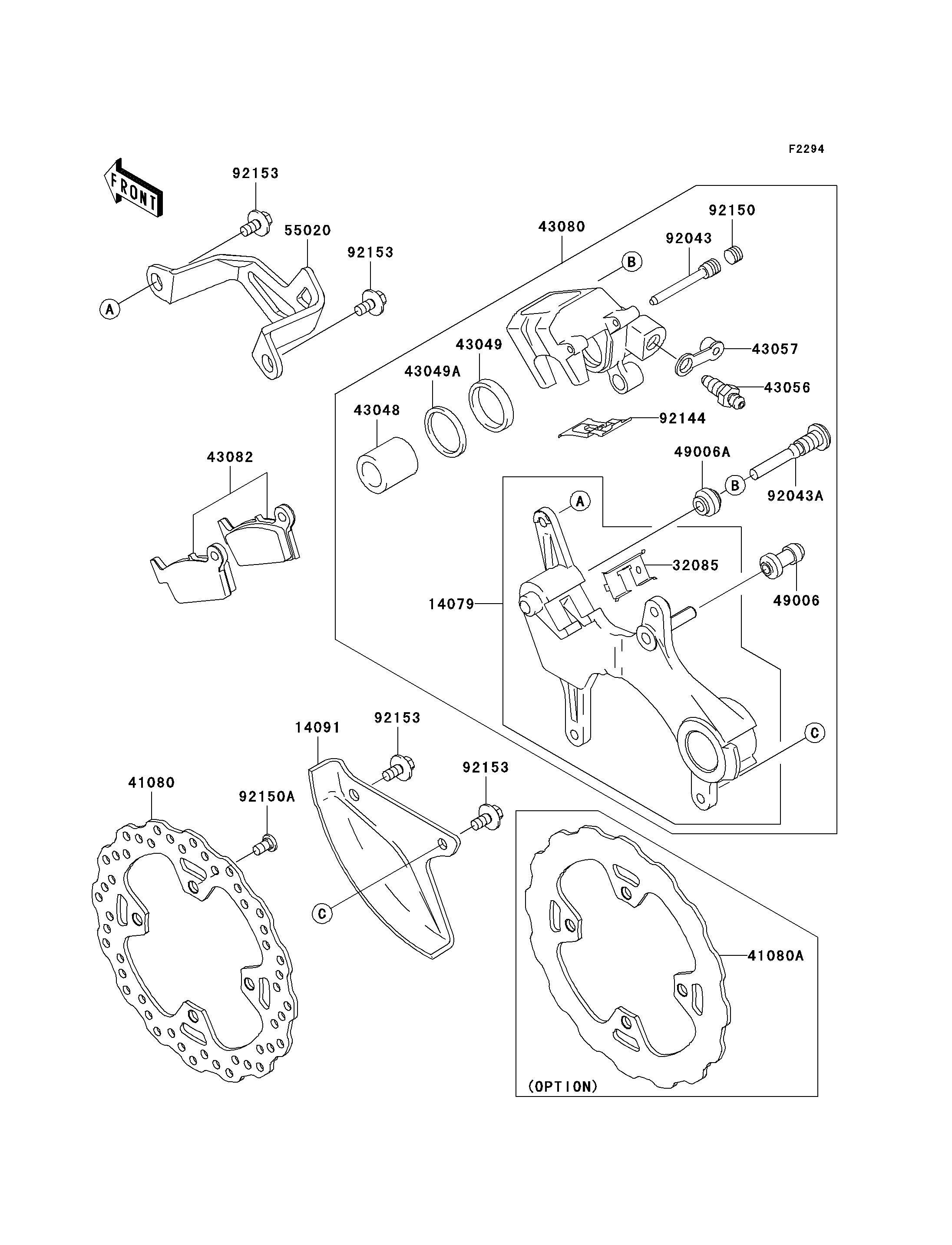

2011 KX™250F - Rear Brake

DOWNLOAD PDF
SELECT A NEW PART
14079
14091
32085
41080
41080A
43048
43049
43049A
43056
43057
43080
43082
49006
49006A
55020
92043
92043A
92144
92150
92150A
92153
92153
92153
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER-ASSY,REAR CALIPER 14079 14079-0022 1
COVER,REAR DISC,EBONY 14091 14091-1523-6C 1
STOPPER,PAD 32085 32085-1386 1
DISC,RR 41080 41080-0076 1
DISC,RR 41080A 41080-0094 1 (OPTION)
PISTON-CALIPER 43048 43048-1066 1
PACKING 43049 43049-1063 1
PACKING 43049A 43049-1064 1
BREATHER 43056 43056-1055 1
CAP-BREATHER 43057 43057-1001 1
CALIPER-SUB-ASSY,RR 43080 43080-0037 1
PAD-ASSY-BRAKE 43082 43082-0107 1
BOOT,CALIPER 49006 49006-1088 1
BOOT,CALIPER 49006A 49006-1242 1
GUARD,REAR CALIPER,EBONY 55020 55020-0458-6C 1
PIN,HANGER 92043 92043-1507 1
PIN 92043A 92043-1508 1
SPRING,PAD 92144 92144-1819 1
BOLT,PLUG 92150 92150-1692 1
BOLT,DISC PLATE,8X15 92150A 92150-1811 4
BOLT,FLANGED,6X14 92153 92153-0936 4
