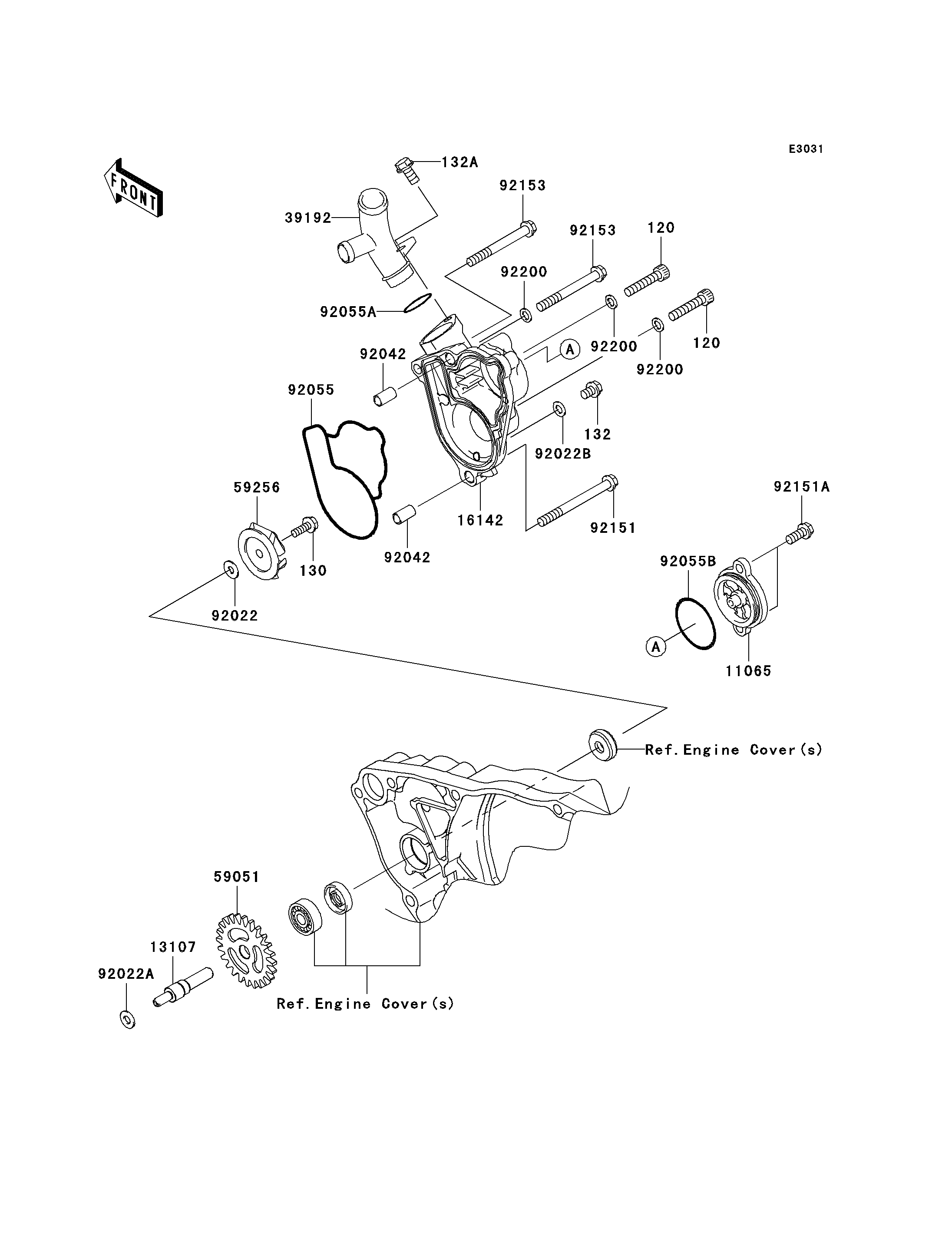

2011 KX™250F - Water Pump

DOWNLOAD PDF
SELECT A NEW PART
120
120
130
132
132A
11065
13107
16142
39192
59051
59256
92022
92022A
92022B
92042
92042
92055
92055A
92055B
92151
92151A
92153
92153
92200
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X30 120 120CC0630 2
BOLT-FLANGED,5X14 130 130CD0514 1
BOLT-FLANGED-SMALL,6X8 132 132BA0608 1
BOLT-FLANGED-SMALL,6X12 132A 132BA0612 1
CAP 11065 11065-0087 1
SHAFT,WATER PUMP 13107 13107-0196 1
COVER-PUMP,WATER 16142 16142-0020 1
PIPE-WATER 39192 39192-0037 1
GEAR-SPUR,WATER PUMP 59051 59051-0061 1
IMPELLER 59256 59256-1065 1
WASHER,5.2X13X1 92022 92022-1380 1
WASHER,6X12.8X1.2 92022A 92022-1827 1
WASHER,6.2X11X1 92022B 92022-304 1
PIN,DOWEL,6.3X8X14 92042 92042-007 2
RING-O,WATER PUMP 92055 92055-0010 1
RING-O,18.8X2.4 92055A 92055-1308 1
RING-O,35.2X1.9 92055B 92055-520 1
BOLT,6X65 92151 92151-1199 1
BOLT,6X14 92151A 92151-1423 2
BOLT,6X55 92153 92153-0696 2
WASHER,6.1X10.0X1.0 92200 92200-0190 3
