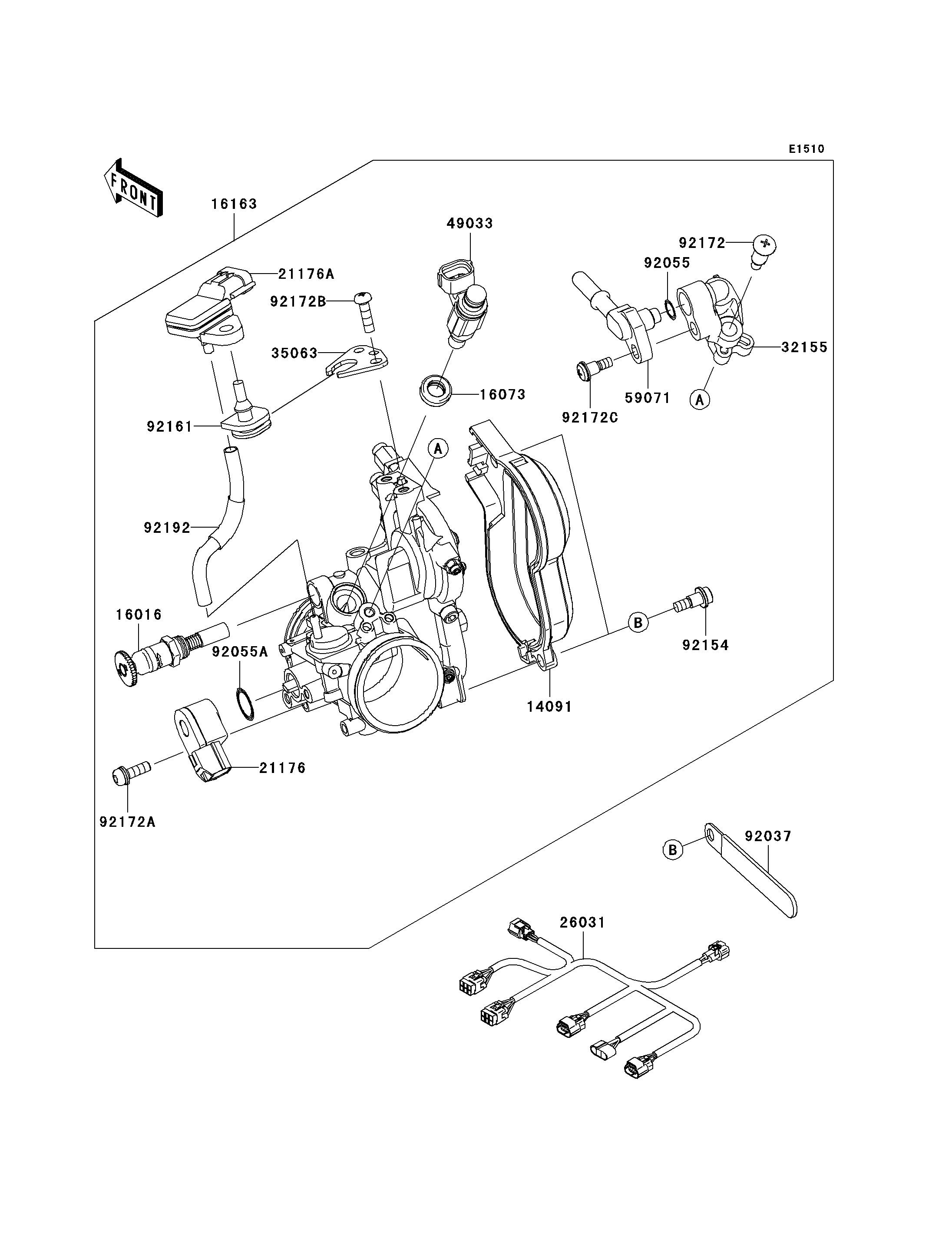

2011 KX™250F - Throttle

DOWNLOAD PDF
SELECT A NEW PART
14091
16016
16073
16163
21176
21176A
26031
32155
35063
49033
59071
92037
92055
92055A
92154
92161
92172
92172A
92172B
92172C
92192
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,THROTTLE DUST 14091 14091-1815 1
PLUNGER 16016 16016-0024 1
INSULATOR 16073 16073-3707 1
THROTTLE-ASSY 16163 16163-0154 1
SENSOR,TPS 21176 21176-0001 1
SENSOR,PRESSURE 21176A 21176-0058 1
HARNESS,RR 26031 26031-0782 1
PIPE,FUEL 32155 32155-0112 1
STAY 35063 35063-0647 1
NOZZLE-INJECTION 49033 49033-0026 1
JOINT 59071 59071-0071 1
CLAMP 92037 92037-1993 2
RING-O 92055 92055-0064 1
RING-O 92055A 92055-1671 1
BOLT 92154 92154-0243 2
DAMPER 92161 92161-0041 1
SCREW,PIPE INJECTION 92172 92172-0064 1
SCREW 92172A 92172-0080 1
SCREW 92172B 92172-0438 2
SCREW 92172C 92172-0439 1
TUBE 92192 92192-0823 1
