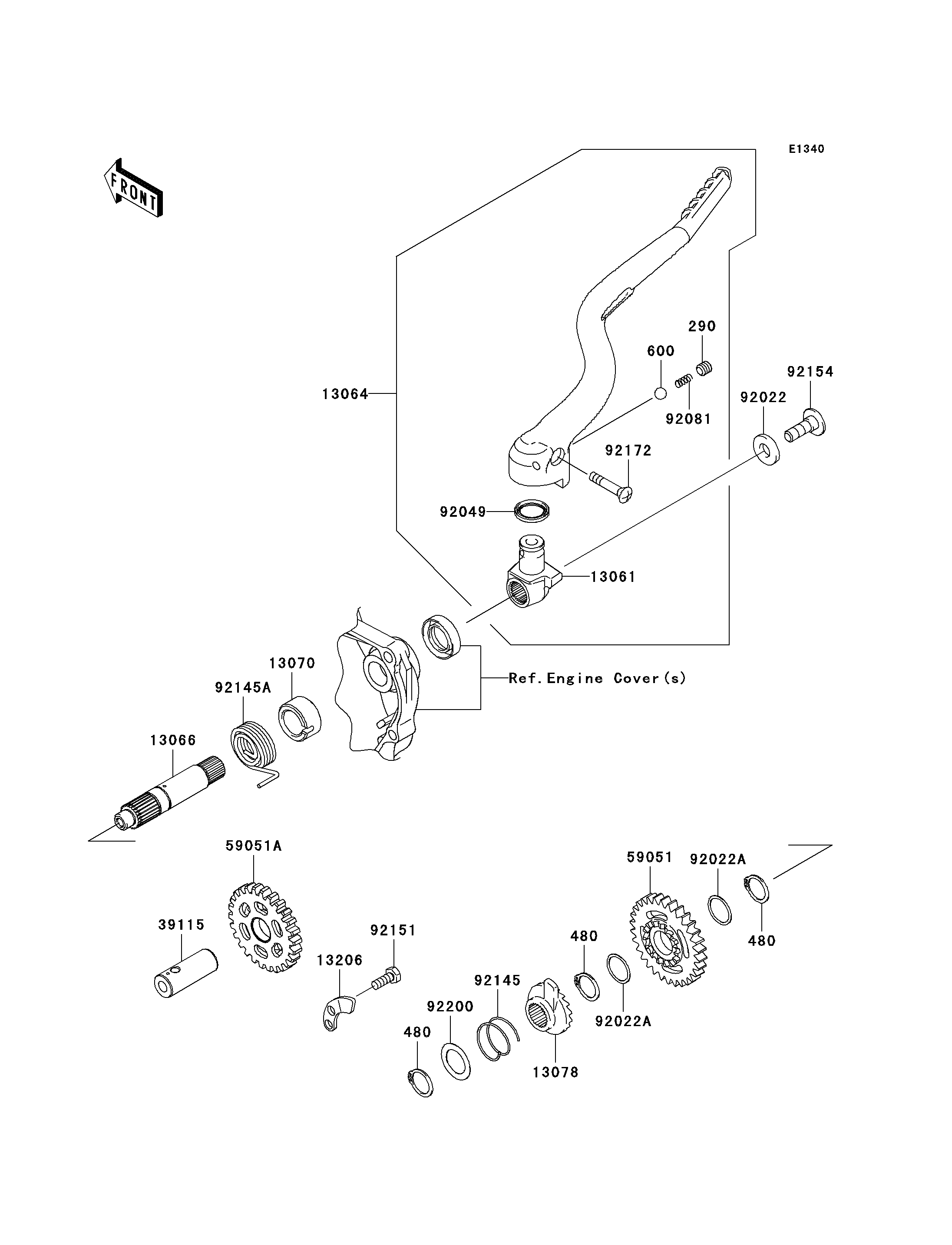

2011 KX™250F - Kickstarter Mechanism

DOWNLOAD PDF
SELECT A NEW PART
290
480
480
480
600
13061
13064
13066
13070
13078
13206
39115
59051
59051A
92022
92022A
92022A
92049
92081
92145
92145A
92151
92154
92172
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-SET-SOCKET,8X8 290 290CA0808 1
CIRCLIP-TYPE-C,18MM 480 480J1800 3
BALL-STEEL,1/4" 600 600A0800 1
BOSS 13061 13061-0357 1
LEVER-ASSY-KICK 13064 13064-0059 1
SHAFT-KICK 13066 13066-0004 1
GUIDE 13070 13070-0011 1
RATCHET 13078 13078-0025 1
GUIDE-KICK 13206 13206-1062 1
SHAFT-IDLER,KICK 39115 39115-0021 1
GEAR-SPUR,KICK STARTER,28T 59051 59051-0033 1
GEAR-SPUR,KICK STARTER,26T 59051A 59051-0089 1
WASHER,10X22X3.2 92022 92022-1944 1
WASHER,18.3X22X0.5 92022A 92022-271 2
SEAL-OIL,KICK PEDAL 92049 92049-1387 1
SPRING,KICK PEDAL 92081 92081-020 1
SPRING 92145 92145-0499 1
SPRING 92145A 92145-0811 1
BOLT,6X16 92151 92151-1652 1
BOLT,SOCKET,8X25 92154 92154-0521 1
SCREW,6X33 92172 92172-0248 1
WASHER,18.3X27.5X0.5 92200 92200-0378 1
