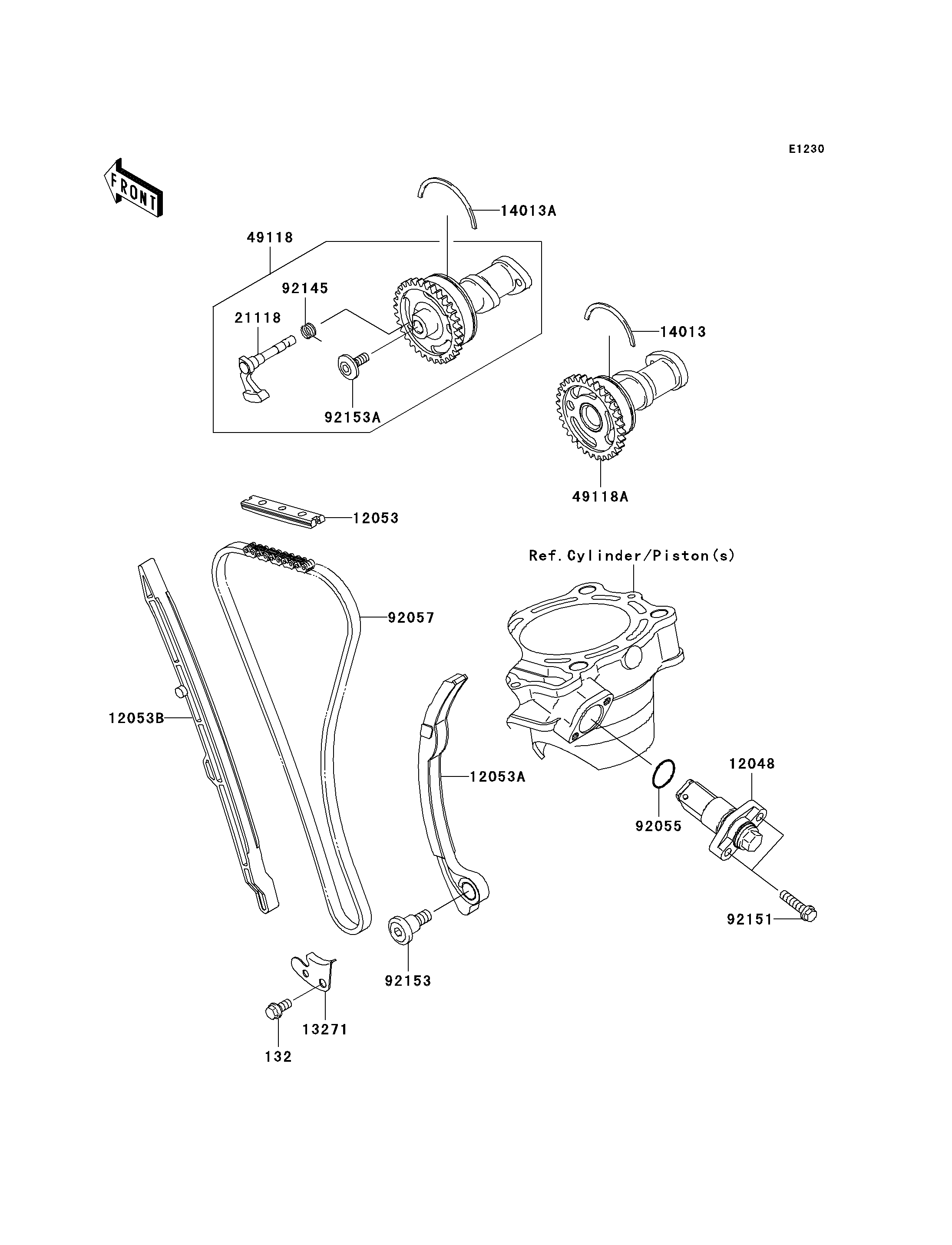

Parts Diagrams |
132
12048
12053
12053A
12053B
13271
14013
14013A
21118
49118
49118A
92055
92057
92145
92151
92153
92153A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL,6X12 | 132 | 132BA0612 | 1 | ||
| TENSIONER-ASSY | 12048 | 12048-0056 | 1 | ||
| GUIDE-CHAIN,UPP | 12053 | 12053-0009 | 1 | ||
| GUIDE-CHAIN,RR | 12053A | 12053-0010 | 1 | ||
| GUIDE-CHAIN,FR | 12053B | 12053-0017 | 1 | ||
| PLATE,CAM CHAIN STOPPER | 13271 | 13271-0808 | 1 | ||
| RING-POSITION | 14013 | 14013-0001 | 1 | ||
| RING-POSITION | 14013A | 14013-0002 | 1 | ||
| DECOMPRESSOR | 21118 | 21118-0004 | 1 | ||
| CAMSHAFT-COMP,EXHAUST | 49118 | 49118-0154 | 1 | ||
| CAMSHAFT-COMP,INTAKE | 49118A | 49118-0164 | 1 | ||
| RING-O,18.8X1.9 | 92055 | 92055-086 | 1 | ||
| CHAIN,CAM,92RH2010-114 | 92057 | 92057-0030 | 1 | ||
| SPRING,DECOMP | 92145 | 92145-0758 | 1 | ||
| BOLT,FLANGED-SMALL,6X25 | 92151 | 92151-1930 | 2 | ||
| BOLT,12X24.5 | 92153 | 92153-0572 | 1 | ||
| BOLT,SOCKET,6X16 | 92153A | 92153-0918 | 1 |
