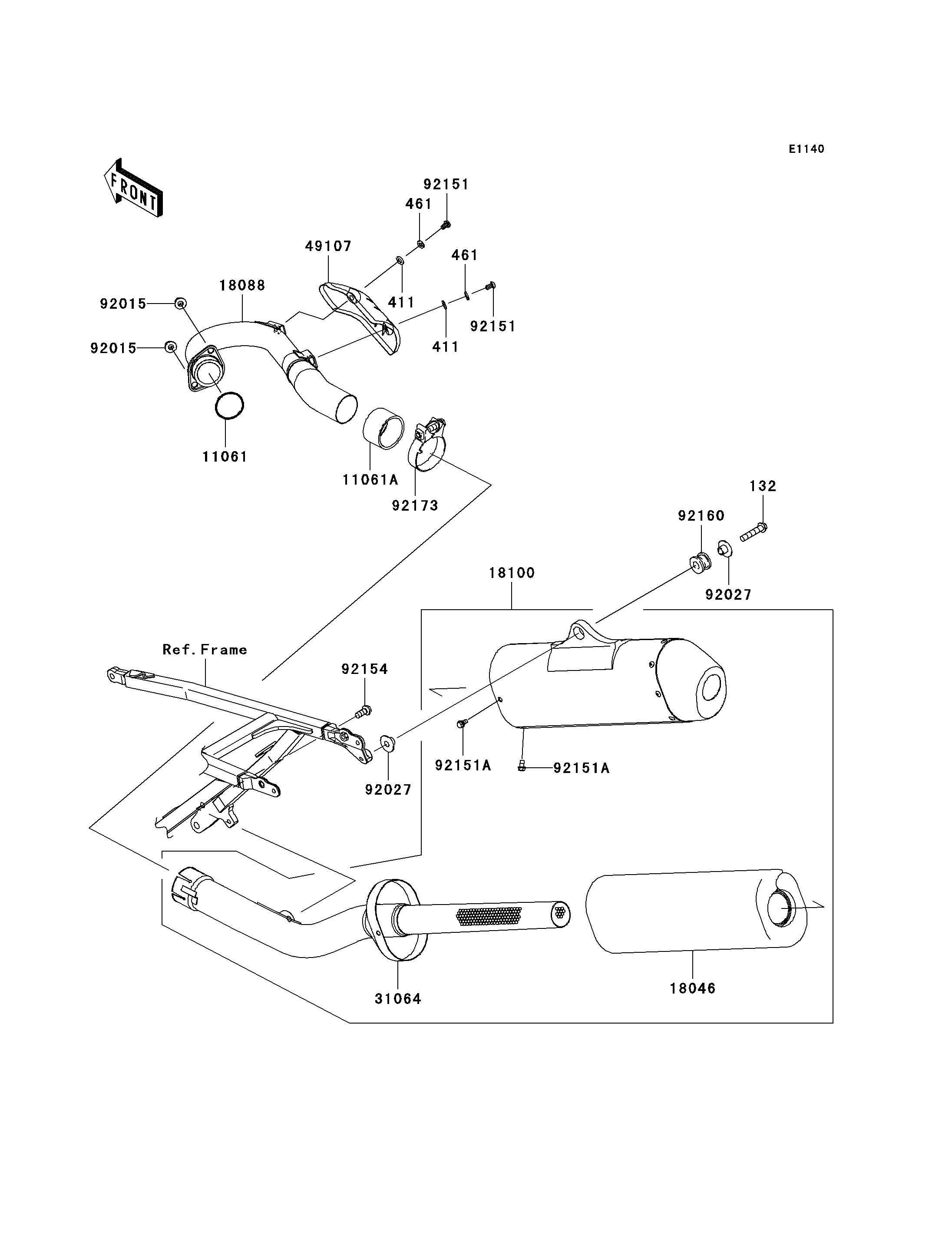

2011 KX™250F - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
132
411
411
461
461
11061
11061A
18046
18088
18100
31064
49107
92015
92015
92027
92027
92151
92151
92151A
92151A
92154
92160
92173
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,8X40 132 132BA0840 1
WASHER-PLAIN,6MM 411 411S0600 2
WASHER-SPRING,6MM 461 461S0600 2
GASKET,EX PIPE 11061 11061-0027 1
GASKET,CONNECTING 11061A 11061-0434 1
WOOL 18046 18046-0177 1
PIPE-EXHAUST 18088 18088-0565 1
BODY-ASSY-MUFFLER 18100 18100-0102 1
PIPE-COMP 31064 31064-0195 1
COVER-EXHAUST PIPE 49107 49107-0126 1
NUT,8MM 92015 92015-1402 2
COLLAR,FLANGED,8.8X10.6 92027 92027-1653 2
BOLT,SOCKET,6X10 92151 92151-1449 2
BOLT,FLANGED,6X10 92151A 92151-1822 4
BOLT,FLANGED-SMALL,8X18 92154 92154-0056 1
DAMPER,MUFFLER MOUNT 92160 92160-1116 1
CLAMP,57MM 92173 92173-0275 1
