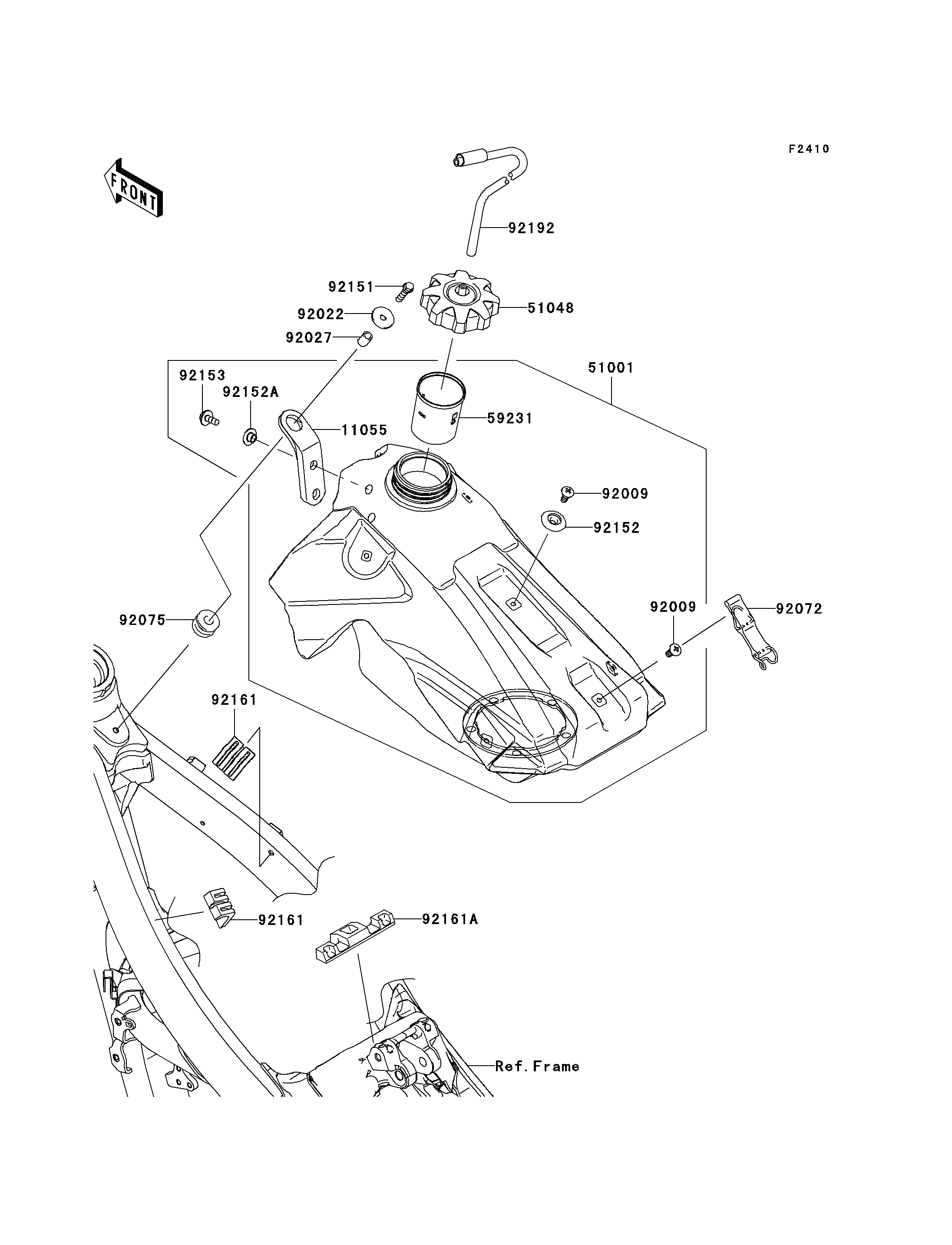

2011 KX™450F - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
11055
51001
51048
59231
92009
92009
92022
92027
92072
92075
92151
92152
92152A
92153
92161
92161
92161A
92192
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,FUEL TANK 11055 11055-0698 1
TANK-COMP-FUEL 51001 51001-0390 1
CAP-ASSY-TANK,FUEL 51048 51048-0031 1
FILLER 59231 59231-0042 1
SCREW,6MM 92009 92009-1971 2
WASHER,6.5X24X2 92022 92022-1690 1
COLLAR,6.8X10X14 92027 92027-1966 1
BAND,FUEL TANK 92072 92072-0045 1
DAMPER 92075 92075-1787 1
BOLT,FLANGED-SMALL,6X25 92151 92151-1930 1
COLLAR 92152 92152-0569 1
COLLAR 92152A 92152-1422 2
BOLT,6X16 92153 92153-0863 2
DAMPER,FUEL TANK,SIDE 92161 92161-0614 2
DAMPER,FUEL TANK,REAR 92161A 92161-0634 1
TUBE 92192 92192-0161 1
