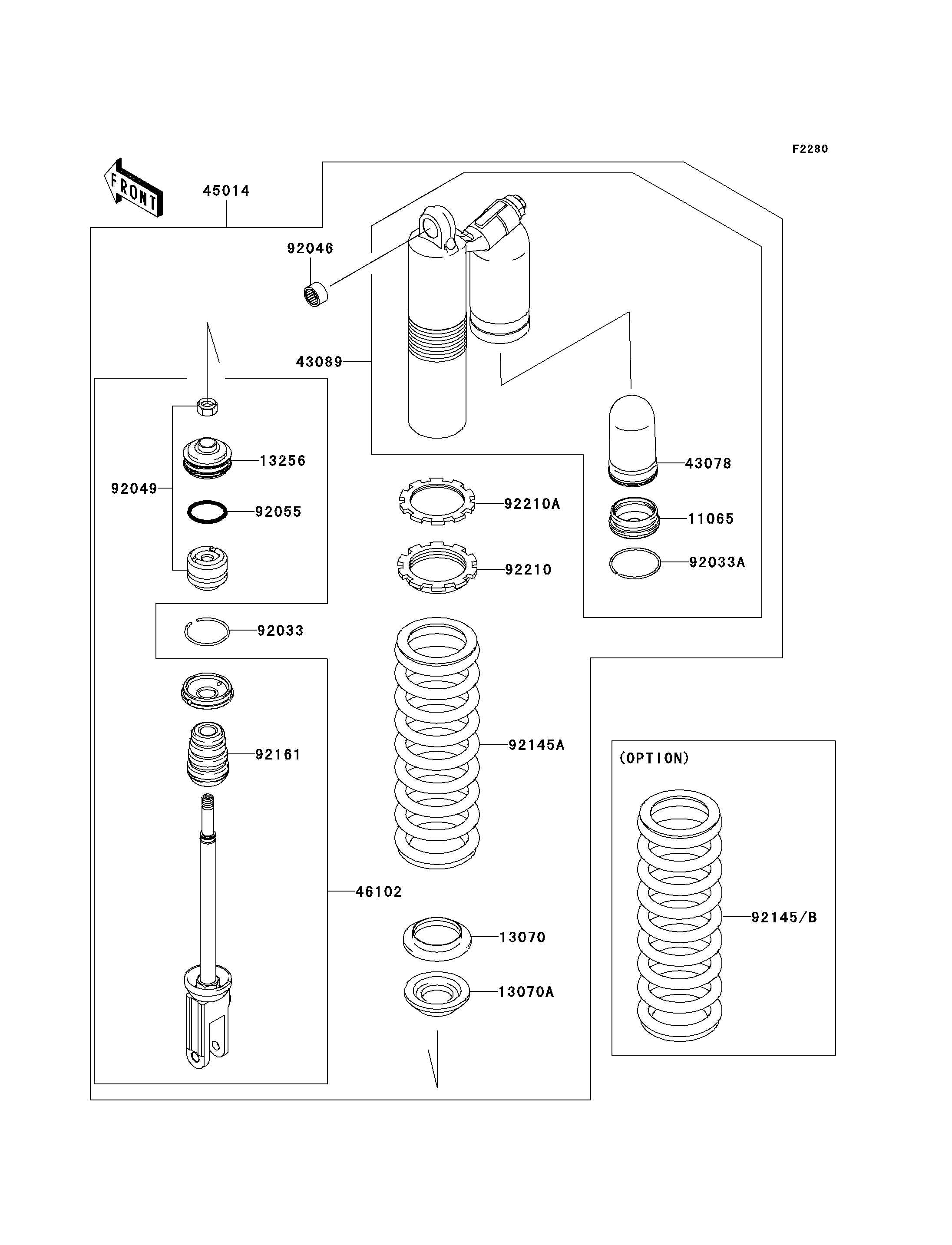

2011 KX™450F - Shock Absorber(s)

DOWNLOAD PDF
SELECT A NEW PART
11065
13070
13070A
13256
43078
43089
45014
46102
92033
92033A
92046
92049
92055
92145
92145A
92145B
92161
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,SUB-TANK 11065 11065-0338 1
GUIDE,SPRING 13070 13070-0095 1
GUIDE,SPRING 13070A 13070-0101 1
PISTON,SHOCKABSORBER 13256 13256-0006 1
RESERVOIR,SHOCKABSORBER 43078 43078-0059 1
CYLINDER-SHOCKABSORBER 43089 43089-0019 1
SHOCKABSORBER,SPG BLK+AJ BLU 45014 45014-0310-23N 1
ROD,PISTON 46102 46102-0155 1
RING-SNAP 92033 92033-0044 1
RING-SNAP 92033A 92033-0059 1
BEARING-NEEDLE,7E-HVS16X22X12 92046 92046-1301 1
SEAL-OIL 92049 92049-0116 1
RING-O 92055 92055-0165 1
SPRING,SHOCK,K=52N/MM,BLACK 92145 92145-0638-17D 1 (OPTION)
SPRING,SHOCK,K=54N/MM,BLACK 92145A 92145-0716-17D 1
SPRING,SHOCK,K=56N/MM,BLACK 92145B 92145-0762-17D 1 (OPTION)
DAMPER,SHOCKABSORBER 92161 92161-1172 1
NUT,SPRING ADJUST 92210 92210-0494 1
NUT,SPRING ADJUST LOCK 92210A 92210-0495 1
