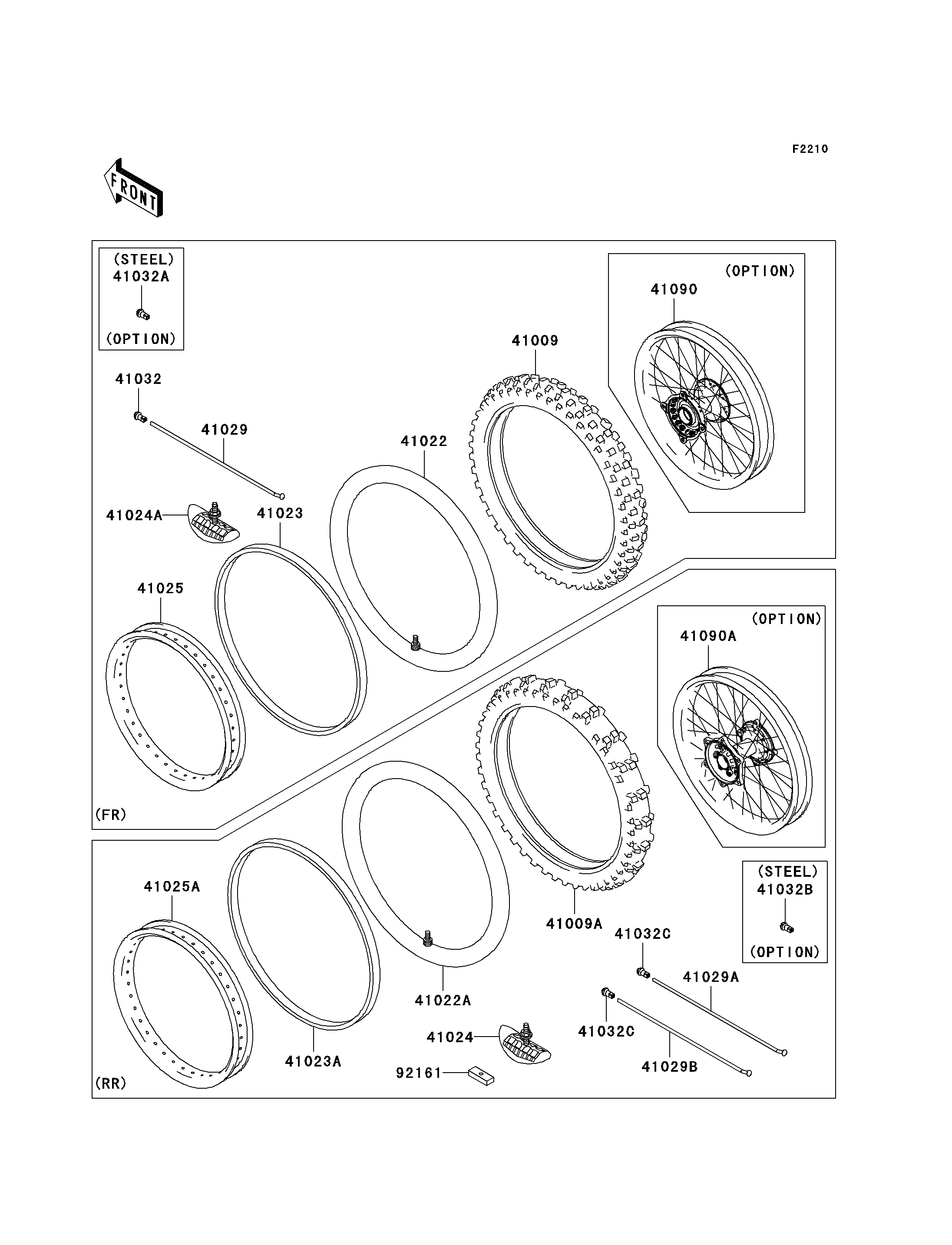

2011 KX™450F - Wheels/Tires

DOWNLOAD PDF
SELECT A NEW PART
41009
41009A
41022
41022A
41023
41023A
41024
41024A
41025
41025A
41029
41029A
41029B
41032
41032A
41032B
41032C
41032C
41090
41090A
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TIRE,FR,90/100-21 57M,M403(BS) 41009 41009-0235 1
TIRE,RR,120/80-19 63M,M404(BS) 41009A 41009-0236 1
TUBE-TIRE,MCS90/100-21(BS) 41022 41022-0043 1
TUBE-TIRE,110/90-19(BS) 41022A 41022-1140 1
BAND-RIM,X-21(BS) 41023 41023-1009 1
BAND-RIM,110/90-19(BS) 41023A 41023-1081 1
STOPPER-RIM,2.15-M(DUNLOP) 41024 41024-009 1
STOPPER-RIM,1.60-M(DUNLOP) 41024A 41024-010 1
RIM,FR,1.60X21,BLACK 41025 41025-0094-WC 1
RIM,RR,2.15X19,BLACK 41025A 41025-0095-WC 1
SPOKE-INNER,FR 41029 41029-0003 36
SPOKE-INNER,RR,202MMX160D 41029A 41029-1204 27
SPOKE-INNER,RR,204MMX159D 41029B 41029-1330 9
NIPPLE-SPOKE,ALUMINIUM 41032 41032-0002 36
NIPPLE-SPOKE,8X9X20(+),STEEL 41032A 41032-1077 36 (OPTION)
NIPPLE-SPOKE,STEEL 41032B 41032-1085 36 (OPTION)
NIPPLE-SPOKE,ALUMINIUM 41032C 41032-1086 36
WHEEL,FR,1.60X21,AL NIPPLE,BLK 41090 41090-0080-WC 1 (OPTION)
WHEEL,RR,2.15X19,AL NIPPLE,BLK 41090A 41090-0081-WC 1 (OPTION)
DAMPER,RIM STOPPER 92161 92161-1184 1
