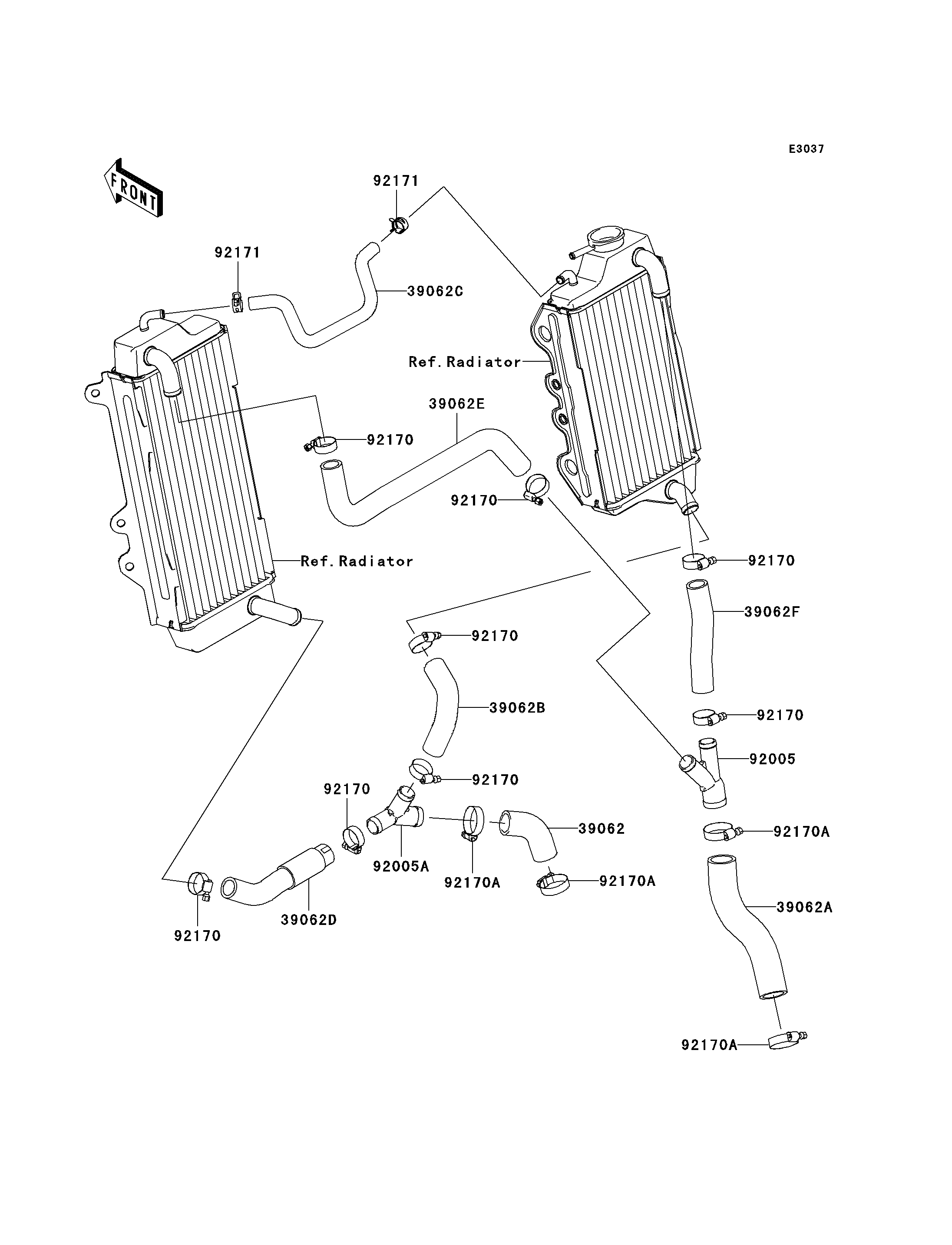

Parts Diagrams |
39062
39062A
39062B
39062C
39062D
39062E
39062F
92005
92005A
92170
92170
92170
92170
92170
92170
92170
92170
92170A
92170A
92170A
92170A
92171
92171
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HOSE-COOLING,W/P-FIT. | 39062 | 39062-0088 | 1 | ||
| HOSE-COOLING,HEAD-3WAY FIT. | 39062A | 39062-0252 | 1 | ||
| HOSE-COOLING,RAD.RH LOW-FIT. | 39062B | 39062-0301 | 1 | ||
| HOSE-COOLING,RAD.LH-RAD.RH | 39062C | 39062-0302 | 1 | ||
| HOSE-COOLING,RAD.LH LOW-FIT. | 39062D | 39062-0303 | 1 | ||
| HOSE-COOLING,FIT.-RAD.LH UPP | 39062E | 39062-0304 | 1 | ||
| HOSE-COOLING,FIT.-RAD.RH UPP | 39062F | 39062-0305 | 1 | ||
| FITTING,3WAY,HEAD-RAD | 92005 | 92005-0066 | 1 | ||
| FITTING,3WAY,RAD-W/P | 92005A | 92005-0067 | 1 | ||
| CLAMP,HOSE,26MM | 92170 | 92170-1077 | 8 | ||
| CLAMP,HOSE,32MM | 92170A | 92170-1286 | 4 | ||
| CLAMP,CLIP,12.5MM | 92171 | 92171-0372 | 2 |
| HOSE-COOLING,W/P-FIT. | |
| REF # | 39062 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,HEAD-3WAY FIT. | |
| REF # | 39062A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,RAD.RH LOW-FIT. | |
| REF # | 39062B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,RAD.LH-RAD.RH | |
| REF # | 39062C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,RAD.LH LOW-FIT. | |
| REF # | 39062D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,FIT.-RAD.LH UPP | |
| REF # | 39062E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,FIT.-RAD.RH UPP | |
| REF # | 39062F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FITTING,3WAY,HEAD-RAD | |
| REF # | 92005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FITTING,3WAY,RAD-W/P | |
| REF # | 92005A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,HOSE,26MM | |
| REF # | 92170 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| CLAMP,HOSE,32MM | |
| REF # | 92170A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CLAMP,CLIP,12.5MM | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
