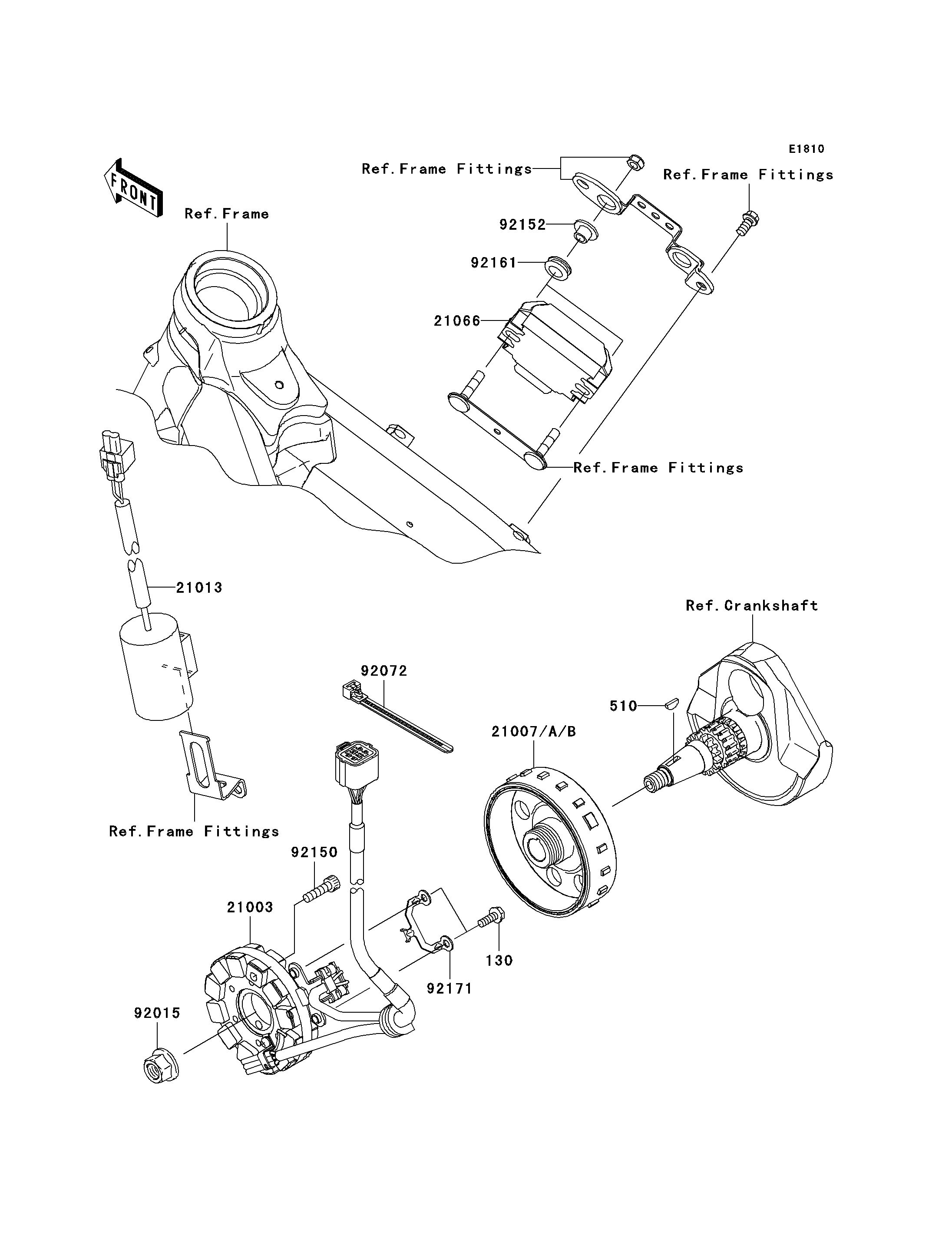

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,5X14 | 130 | 130BA0514 | 2 | ||
| KEY-WOODRUFF | 510 | 510A3200 | 1 | ||
| STATOR | 21003 | 21003-0082 | 1 | ||
| ROTOR,I=9.0 | 21007 | 21007-0122 | 1 | ||
| ROTOR,I=8.5 | 21007A | 21007-0138 | 1 | (OPTION) | |
| ROTOR,I=9.5 | 21007B | 21007-0139 | 1 | (OPTION) | |
| CONDENSER | 21013 | 21013-0001 | 1 | ||
| REGULATOR-VOLTAGE | 21066 | 21066-0042 | 1 | ||
| NUT,FLANGED,12MM | 92015 | 92015-1156 | 1 | ||
| BAND,L=100 | 92072 | 92072-0055 | 1 | ||
| BOLT,SOCKET,6X22 | 92150 | 92150-1654 | 3 | ||
| COLLAR | 92152 | 92152-1449 | 2 | ||
| DAMPER | 92161 | 92161-0266 | 2 | ||
| CLAMP | 92171 | 92171-1843 | 1 |
