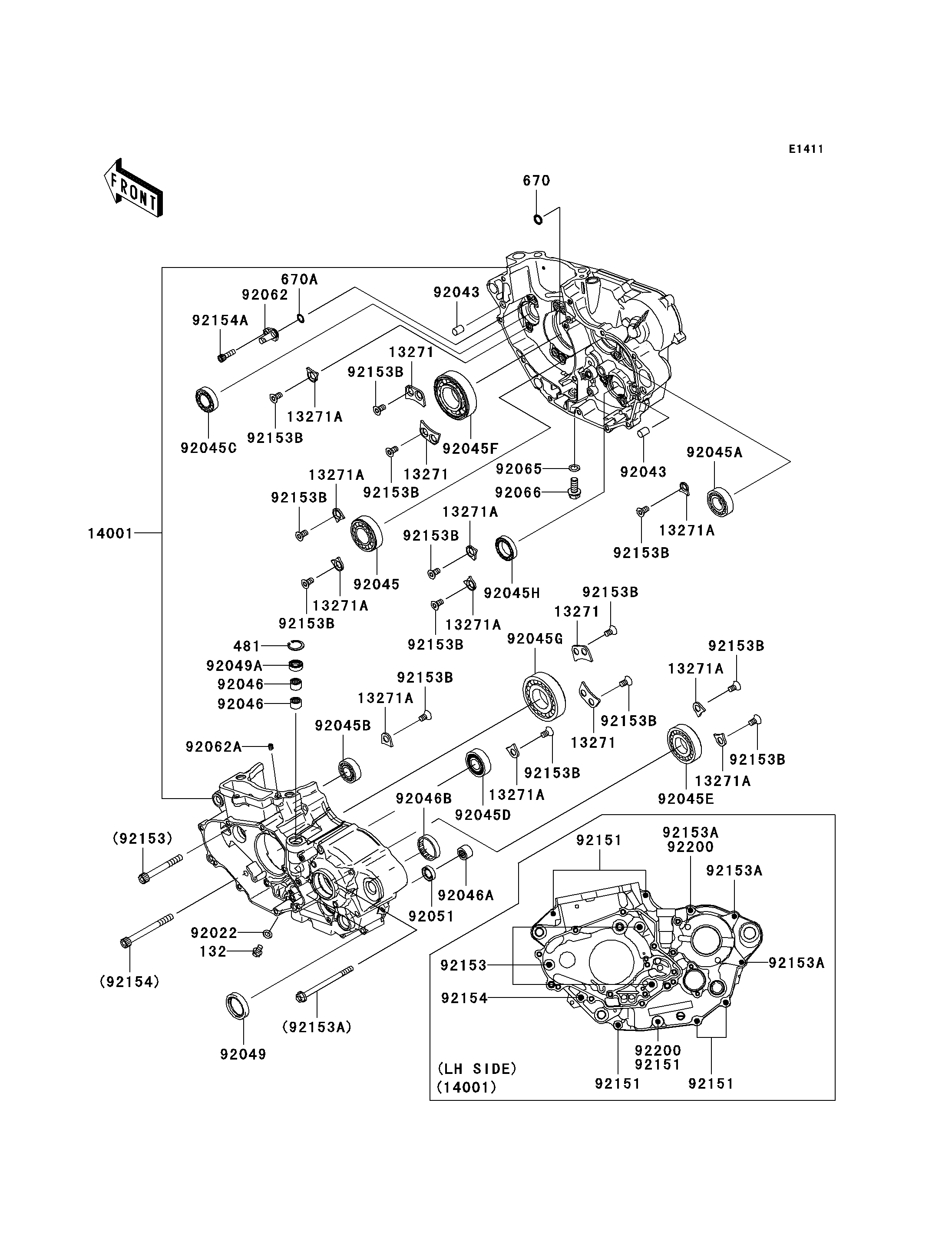

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
132
481
670
670A
13271
13271
13271
13271
13271A
13271A
13271A
13271A
13271A
13271A
13271A
13271A
13271A
13271A
14001
92022
92043
92043
92045
92045A
92045B
92045C
92045D
92045E
92045F
92045G
92045H
92046
92046
92046A
92046B
92049
92049A
92051
92062
92062A
92065
92066
92151
92151
92151
92151
92153
92153A
92153A
92153A
92153B
92153B
92153B
92153B
92153B
92153B
92153B
92153B
92153B
92153B
92153B
92153B
92153B
92153B
92154
92154A
92200
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL,6X8 | 132 | 132BA0608 | 1 | ||
| CIRCLIP | 481 | 481J2100 | 1 | ||
| O RING,7MM | 670 | 670D1507 | 1 | ||
| O RING,8MM | 670A | 670D1508 | 1 | ||
| PLATE | 13271 | 13271-0334 | 4 | ||
| PLATE | 13271A | 13271-0345 | 10 | ||
| SET-CRANKCASE | 14001 | 14001-0162 | 1 | ||
| WASHER,6.2X11X1 | 92022 | 92022-304 | 1 | ||
| PIN,10X14 | 92043 | 92043-1506 | 2 | ||
| BEARING-BALL,25X52X15 | 92045 | 92045-0035 | 1 | ||
| BEARING-BALL,20X42X12 | 92045A | 92045-0036 | 1 | ||
| BEARING-BALL,6202SH2C3 | 92045B | 92045-0037 | 1 | ||
| BEARING-BALL,6904C3UR5 | 92045C | 92045-0038 | 1 | ||
| BEARING-BALL,3TM-5X0391LUC3 | 92045D | 92045-0057 | 1 | ||
| BEARING-BALL | 92045E | 92045-0062 | 1 | ||
| BEARING-BALL,B32-32-A-ZEC4 | 92045F | 92045-0074 | 1 | ||
| BEARING-BALL | 92045G | 92045-0132 | 1 | ||
| BEARING-BALL,6805JRZ | 92045H | 92045-1432 | 1 | ||
| BEARING-NEEDLE,HK1210 | 92046 | 92046-1010 | 2 | ||
| BEARING-NEEDLE,HK1312 | 92046A | 92046-1148 | 1 | ||
| BEARING-NEEDLE,7E-HKS33X38X8 | 92046B | 92046-1221 | 1 | ||
| SEAL-OIL,TC 30 40 7 | 92049 | 92049-0030 | 1 | ||
| SEAL-OIL,CLUTCH RELEASE | 92049A | 92049-1475 | 1 | ||
| SEAL-OIL,TB13225.5 | 92051 | 92051-005 | 1 | ||
| NOZZLE | 92062 | 92062-0017 | 1 | ||
| NOZZLE,6X8,SILVER | 92062A | 92062-1081 | 1 | ||
| GASKET,10.5X16X1 | 92065 | 92065-058 | 1 | ||
| PLUG,DRAIN,10X22 | 92066 | 92066-0038 | 1 | ||
| BOLT,6X50 | 92151 | 92151-1545 | 6 | ||
| BOLT,7X60 | 92153 | 92153-0846 | 3 | ||
| BOLT,FLANGED,6X85 | 92153A | 92153-0934 | 3 | ||
| BOLT,TORX,6X8.7 | 92153B | 92153-1669 | 18 | ||
| BOLT,SOCKET,7X75 | 92154 | 92154-0037 | 1 | ||
| BOLT,SOCKET,5X18 | 92154A | 92154-0038 | 1 | ||
| WASHER,6.3X13.5X1.0 | 92200 | 92200-0171 | 2 |
| BOLT-FLANGED-SMALL,6X8 | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP | |
| REF # | 481 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| O RING,7MM | |
| REF # | 670 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| O RING,8MM | |
| REF # | 670A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE | |
| REF # | 13271 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PLATE | |
| REF # | 13271A |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
| SET-CRANKCASE | |
| REF # | 14001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.2X11X1 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,10X14 | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,25X52X15 | |
| REF # | 92045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,20X42X12 | |
| REF # | 92045A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,6202SH2C3 | |
| REF # | 92045B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,6904C3UR5 | |
| REF # | 92045C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,3TM-5X0391LUC3 | |
| REF # | 92045D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL | |
| REF # | 92045E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,B32-32-A-ZEC4 | |
| REF # | 92045F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL | |
| REF # | 92045G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,6805JRZ | |
| REF # | 92045H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,HK1210 | |
| REF # | 92046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,HK1312 | |
| REF # | 92046A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,7E-HKS33X38X8 | |
| REF # | 92046B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,TC 30 40 7 | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,CLUTCH RELEASE | |
| REF # | 92049A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,TB13225.5 | |
| REF # | 92051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NOZZLE | |
| REF # | 92062 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NOZZLE,6X8,SILVER | |
| REF # | 92062A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,10.5X16X1 | |
| REF # | 92065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG,DRAIN,10X22 | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X50 | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BOLT,7X60 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X85 | |
| REF # | 92153A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT,TORX,6X8.7 | |
| REF # | 92153B |
|---|---|
| PART NUMBER | |
| QUANTITY | 18 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,7X75 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,5X18 | |
| REF # | 92154A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.3X13.5X1.0 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
