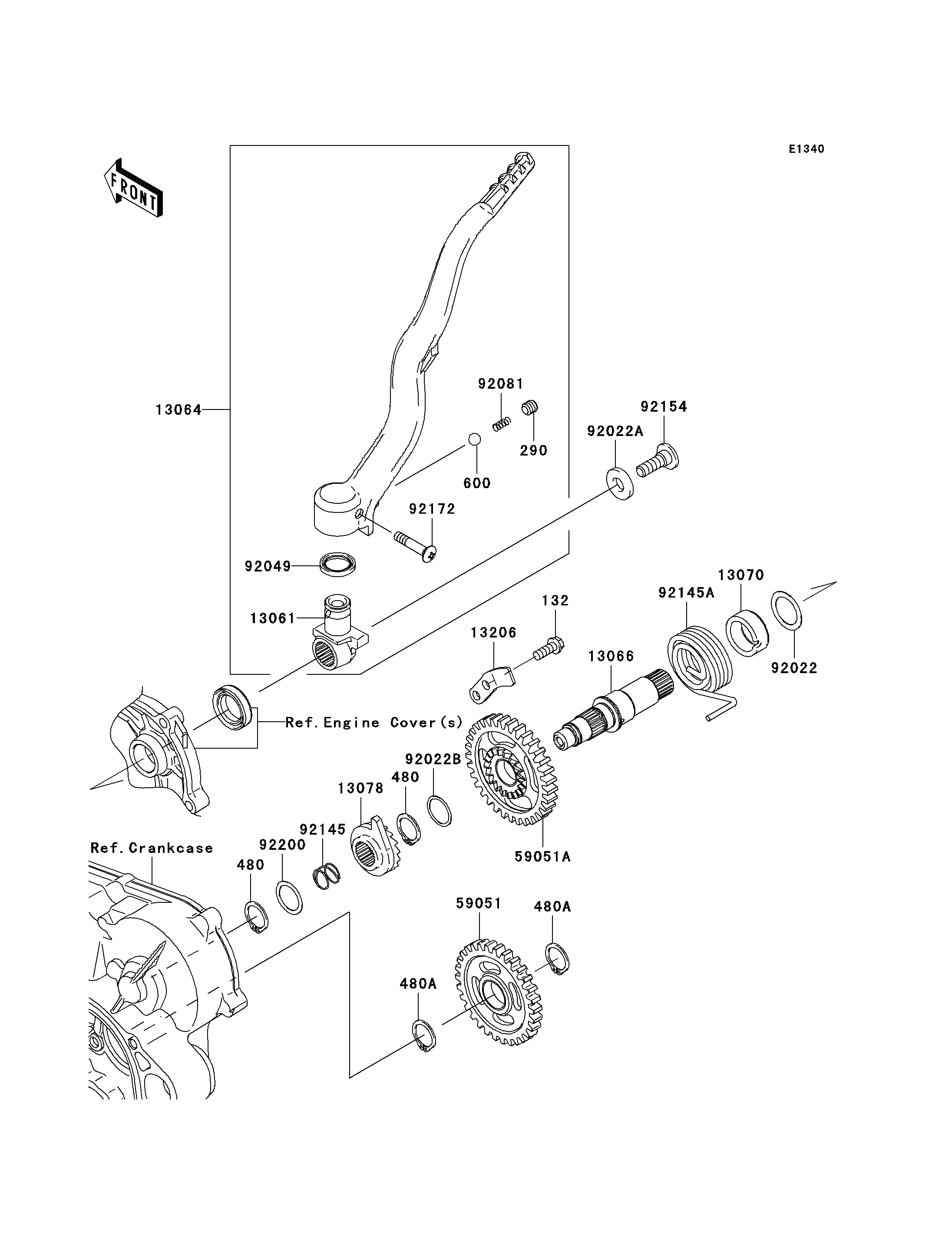

2011 KX™450F - Kickstarter Mechanism

DOWNLOAD PDF
SELECT A NEW PART
132
290
480
480
480A
480A
600
13061
13064
13066
13070
13078
13206
59051
59051A
92022
92022A
92022B
92049
92081
92145
92145A
92154
92172
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X16 132 132BA0616 1
SCREW-SET-SOCKET,8X8 290 290CA0808 1
CIRCLIP-TYPE-C,18MM 480 480J1800 2
CIRCLIP-TYPE-C,19MM 480A 480J1900 2
BALL-STEEL,1/4" 600 600A0800 1
BOSS 13061 13061-0146 1
LEVER-ASSY-KICK 13064 13064-0051 1
SHAFT-KICK 13066 13066-0010 1
GUIDE,KICK SPRING 13070 13070-1378 1
RATCHET 13078 13078-0558 1
GUIDE-KICK 13206 13206-0007 1
GEAR-SPUR,30T 59051 59051-0030 1
GEAR-SPUR,33T 59051A 59051-0046 1
WASHER,20.3X28.0X0.5 92022 92022-1885 1
WASHER,10X22X3.2 92022A 92022-1944 1
WASHER,18.3X22X0.5 92022B 92022-271 1
SEAL-OIL,KICK PEDAL 92049 92049-1387 1
SPRING,KICK PEDAL 92081 92081-020 1
SPRING 92145 92145-0162 1
SPRING,RETURN 92145A 92145-0297 1
BOLT,SOCKET,8X25 92154 92154-0181 1
SCREW,6X30 92172 92172-1088 1
WASHER,18.3X24X0.5 92200 92200-0075 1
