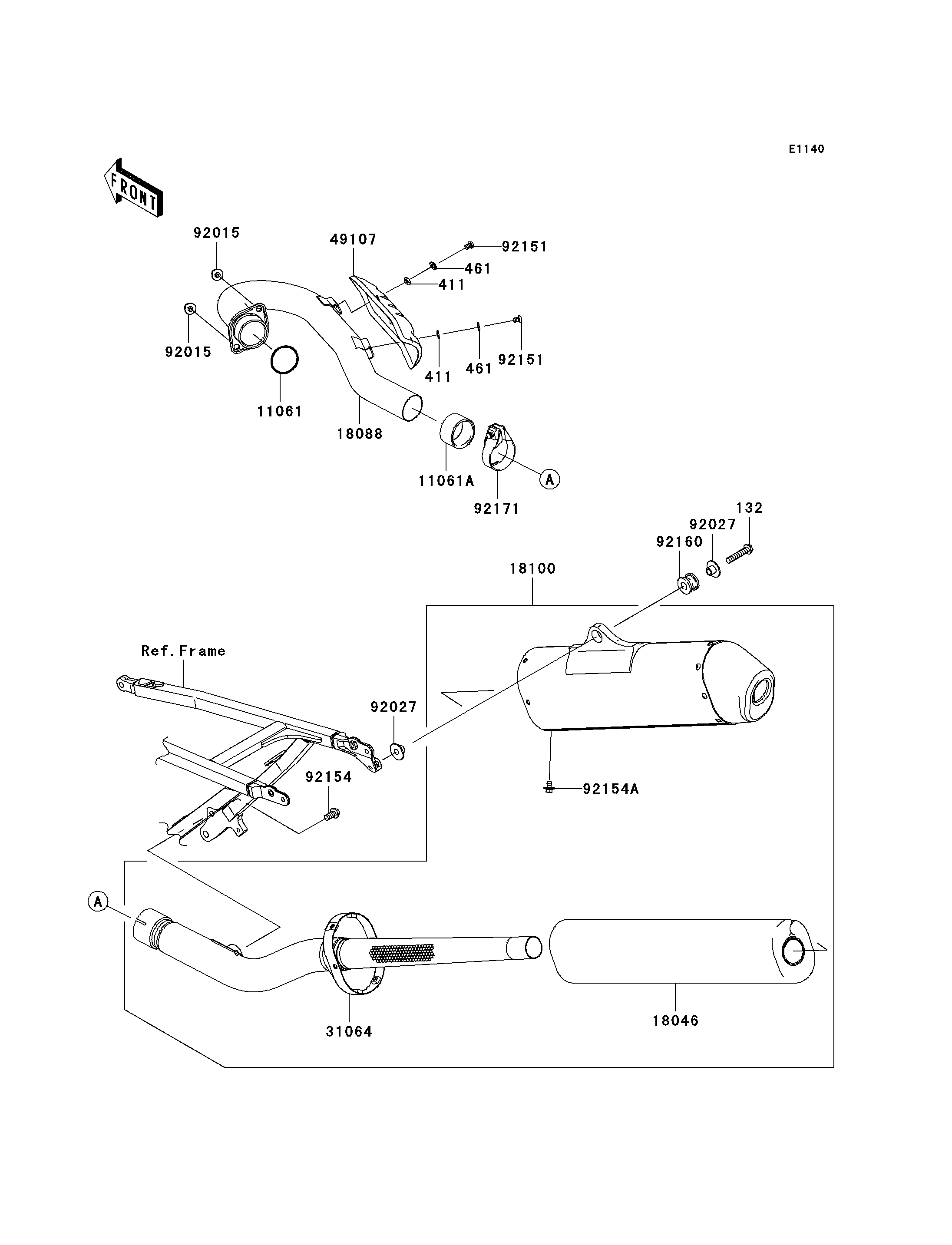

2011 KX™450F - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
132
411
411
461
461
11061
11061A
18046
18088
18100
31064
49107
92015
92015
92027
92027
92151
92151
92154
92154A
92160
92171
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,8X40 132 132BA0840 1
WASHER-PLAIN,6MM 411 411S0600 2
WASHER-SPRING,6MM 461 461S0600 2
GASKET,38.9X46.4X3.0 11061 11061-0082 1
GASKET,41.0X48.7X32.0 11061A 11061-0226 1
WOOL 18046 18046-0197 1
PIPE-EXHAUST 18088 18088-0529 1
BODY-ASSY-MUFFLER 18100 18100-0108 1
PIPE-COMP 31064 31064-0204 1
COVER-EXHAUST PIPE 49107 49107-0159 1
NUT,8MM 92015 92015-1402 2
COLLAR,FLANGED,8.8X10.6 92027 92027-1653 2
BOLT,SOCKET,6X10 92151 92151-1449 2
BOLT,FLANGED-SMALL,8X18 92154 92154-0056 1
BOLT,FLANGED,6X10 92154A 92154-0396 6
DAMPER,MUFFLER MOUNT 92160 92160-1116 1
CLAMP 92171 92171-0653 1
