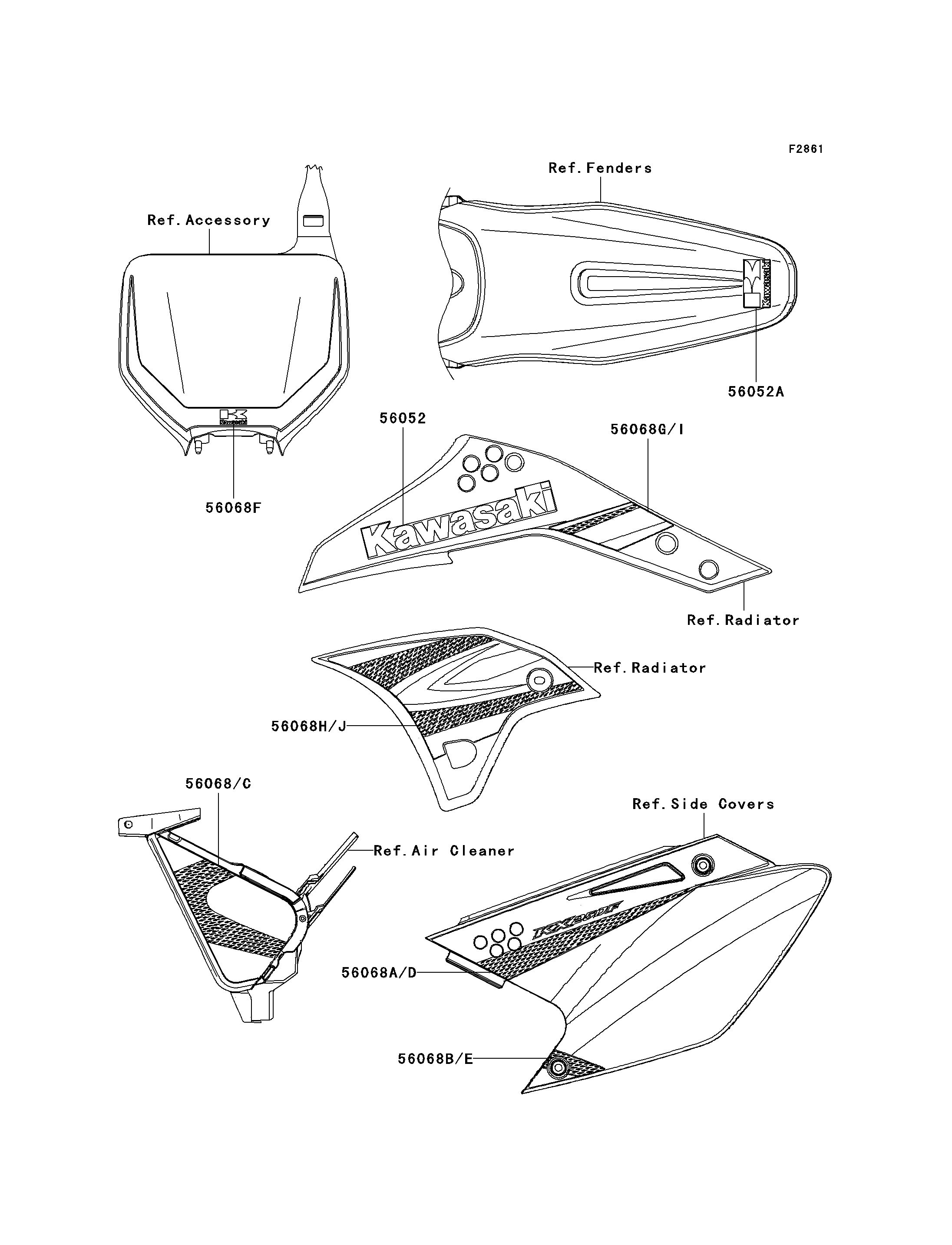

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,SHROUD,KAWASAKI | 56052 | 56052-0886 | 2 | ||
| MARK,RR FENDER,KAWASAKI | 56052A | 56052-0887 | 1 | ||
| PATTERN,AIR CLEANER,LH | 56068 | 56068-0210 | 1 | ||
| PATTERN,SIDE COVER,UPP,LH | 56068A | 56068-0211 | 1 | ||
| PATTERN,SIDE COVER,LWR,LH | 56068B | 56068-0212 | 1 | ||
| PATTERN,AIR CLEANER,RH | 56068C | 56068-0213 | 1 | ||
| PATTERN,SIDE COVER,UPP,RH | 56068D | 56068-0214 | 1 | ||
| PATTERN,SIDE COVER,LWR,RH | 56068E | 56068-0215 | 1 | ||
| PATTERN,NUMBER PLATE | 56068F | 56068-0216 | 1 | ||
| PATTERN,SHROUD,UPP,LH | 56068G | 56068-0280 | 1 | ||
| PATTERN,SHROUD,LWR,LH | 56068H | 56068-0281 | 1 | ||
| PATTERN,SHROUD,UPP,RH | 56068I | 56068-0282 | 1 | ||
| PATTERN,SHROUD,LWR,RH | 56068J | 56068-0283 | 1 |
