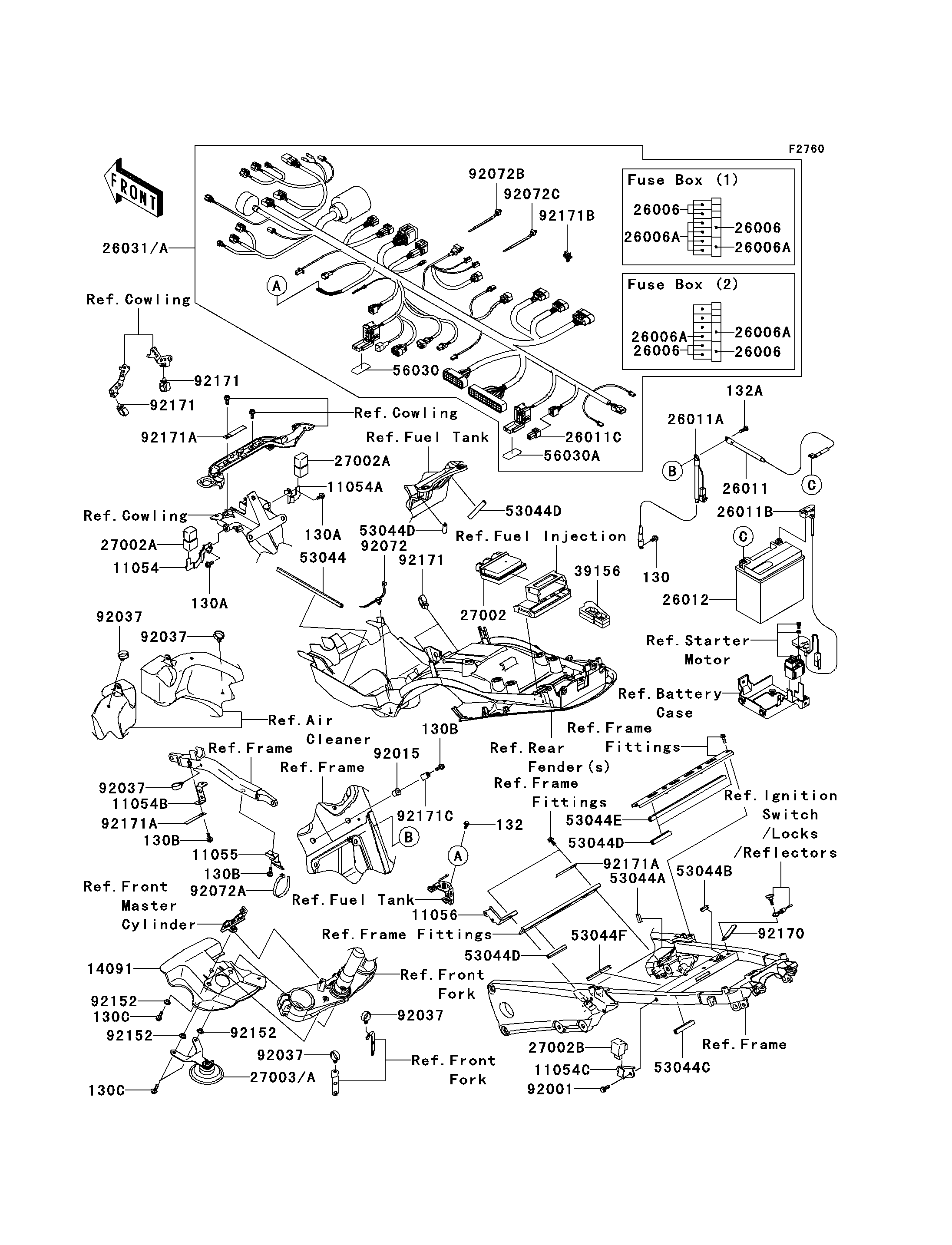

2011 NINJA® ZX™-14 - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
11054
11054
11054A
11054A
11054B
11054B
11054C
11054C
11055
11055
11056
11056
14091
14091
26006
26006
26006
26006
26006
26006
26006
26006
26006A
26006A
26006A
26006A
26006A
26006A
26006A
26006A
26011
26011
26011A
26011A
26011B
26011B
26011C
26011C
26012
26012
26031A
26031A
27002
27002
27002A
27002A
27002A
27002A
27002B
27002B
27003A
27003A
39156
39156
53044
53044
53044A
53044A
53044B
53044B
53044C
53044C
53044D
53044D
53044D
53044D
53044D
53044D
53044D
53044D
53044E
53044E
53044F
53044F
56030
56030
56030A
56030A
92001
92001
92015
92015
92037
92037
92037
92037
92037
92037
92037
92037
92037
92037
92072
92072
92072A
92072A
92072B
92072B
92072C
92072C
92152
92152
92152
92152
92152
92152
92170
92170
130
130
130A
130A
130A
130A
130B
130B
130B
130B
130B
130B
130C
130C
130C
130C
132
132
132A
132A
92171
92171
92171
92171
92171
92171
92171A
92171A
92171A
92171A
92171A
92171A
92171B
92171B
92171C
92171C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,RELAY,LH 11054 11054-0497 1
BRACKET,RELAY,RH 11054A 11054-0498 1
BRACKET,HARNESS 11054B 11054-0551 1
BRACKET,SIGNAL LAMP RELAY 11054C 11054-0811 1
BRACKET,HARNESS 11055 11055-0411 1
BRACKET,HARNESS 11056 11056-0040 1
COVER,RADIATOR 14091 14091-0624 1
FUSE,MINI BLADE,15A,BLUE 26006 26006-0001 6
FUSE,MINI BLADE,10A,RED 26006A 26006-1078 7
WIRE-LEAD,BATTERY(-) 26011 26011-0087 1
WIRE-LEAD,BATTERY(-) 26011A 26011-0093 1
WIRE-LEAD,BATTERY(+) 26011B 26011-0120 1
WIRE-LEAD,CAP 26011C 26011-0271 1
BATTERY,FTZ14-BS,12V 14AH 26012 26012-1409 1
HARNESS,MAIN 26031A 26031-1112 1
RELAY-ASSY 27002 27002-0007 1
RELAY-ASSY 27002A 27002-1086 2
RELAY-ASSY,TURN SIGNAL 27002B 27002-1101 1
HORN 27003A 27003-0069 1
PAD,DIAG COUPLER 39156 39156-0585 1
TRIM,L=220 53044 53044-0022 1
TRIM,L=15 53044A 53044-0025 2
TRIM,L=22 53044B 53044-0031 1
TRIM,L=60 53044C 53044-0032 1
TRIM,L=60 53044D 53044-1249 5
TRIM,AIR DUCT COVER 53044E 53044-1265 1
TRIM,L=75 53044F 53044-1279 1
LABEL,FUSE BOX 56030 56030-0110 1
LABEL,FUSE BOX 56030A 56030-0112 1
BOLT,6X20 92001 92001-1773 1
NUT 92015 92015-1700 1
CLAMP,HOSE 92037 92037-1827 5
BAND 92072 92072-0066 1
BAND,L=140 92072A 92072-1293 1
BAND 92072B 92072-1392 6
BAND 92072C 92072-1414 3
COLLAR 92152 92152-0445 3
CLAMP 92170 92170-1925 1
BOLT-FLANGED,6X10 130 130BA0610 1
BOLT-FLANGED,6X14 130A 130BA0614 2
BOLT-FLANGED,6X16 130B 130BA0616 3
BOLT-FLANGED,6X18 130C 130BA0618 3
BOLT-FLANGED-SMALL,6X12 132 132BA0612 1
BOLT-FLANGED-SMALL,6X16 132A 132BA0616 1
CLAMP,CLIP,DIA=20 92171 92171-0068 4
CLAMP 92171A 92171-0652 3
CLAMP 92171B 92171-0741 1
CLAMP 92171C 92171-0813 1
