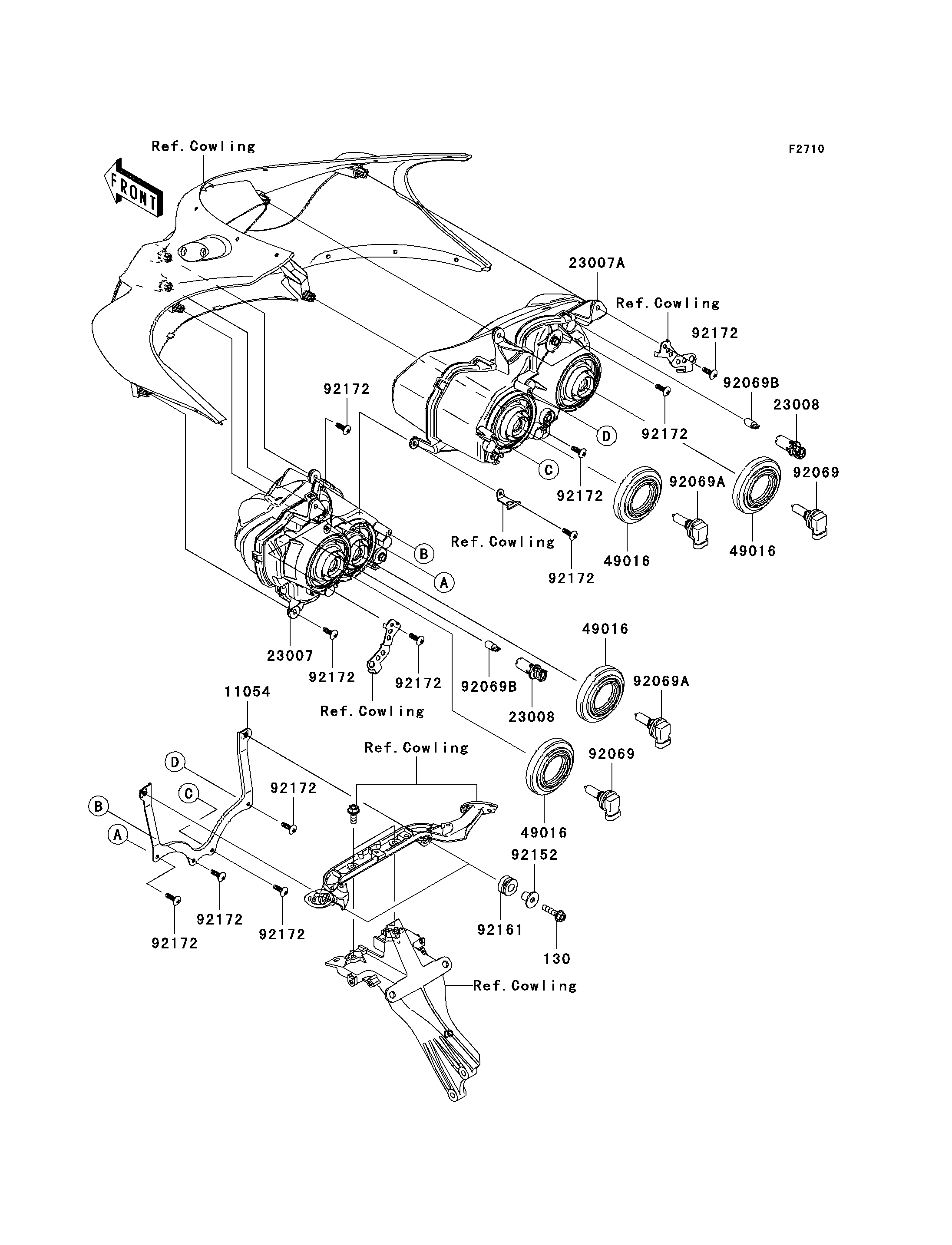

Parts Diagrams |
130
11054
23007
23007A
23008
23008
49016
49016
49016
49016
92069
92069
92069A
92069A
92069B
92069B
92152
92161
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
92172
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X25 | 130 | 130BA0625 | 2 | ||
| BRACKET,HEAD LAMP | 11054 | 11054-0198 | 1 | ||
| LENS-COMP,HEAD LAMP,LH | 23007 | 23007-0066 | 1 | ||
| LENS-COMP,HEAD LAMP,RH | 23007A | 23007-0067 | 1 | ||
| SOCKET-ASSY,HEAD LAMP | 23008 | 23008-0053 | 2 | ||
| COVER-SEAL,HEAD LAMP | 49016 | 49016-0023 | 4 | ||
| BULB,12V 65W,H9 | 92069 | 92069-0033 | 2 | ||
| BULB,12V 55W,H11 | 92069A | 92069-0034 | 2 | ||
| BULB,12V 5W | 92069B | 92069-1016 | 2 | ||
| COLLAR | 92152 | 92152-0332 | 2 | ||
| DAMPER | 92161 | 92161-0036 | 2 | ||
| SCREW,TAPPING,5X16 | 92172 | 92172-0238 | 11 |
