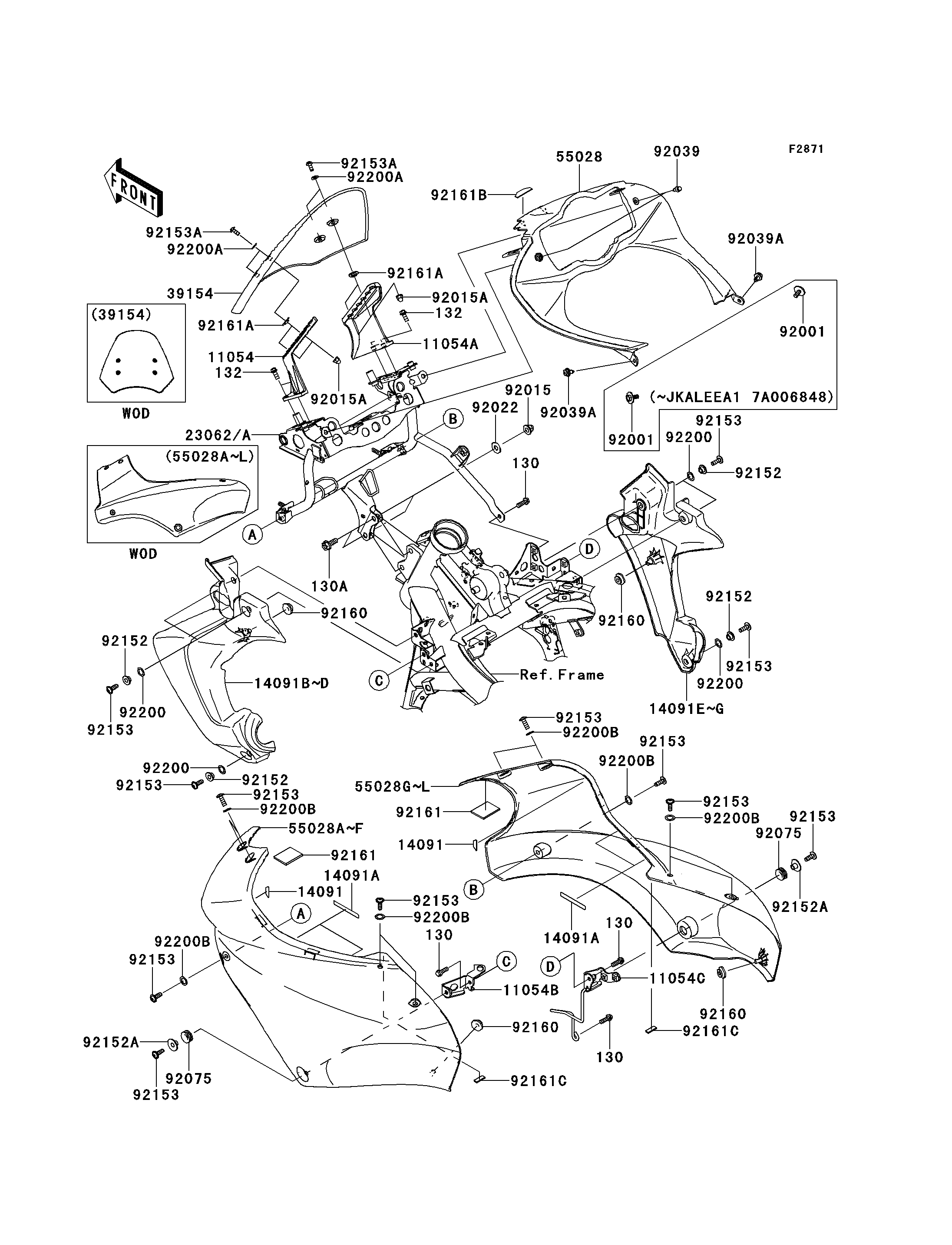

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11054
11054
11054A
11054A
11054B
11054B
11054C
11054C
14091
14091
14091
14091
14091A
14091A
14091A
14091A
14091D
14091D
14091G
14091G
23062A
23062A
39154
39154
55028
55028
55028D
55028D
55028J
55028J
92015
92015
92015A
92015A
92015A
92015A
92022
92022
130
130
130
130
130
130
130
130
130A
130A
132
132
132
132
92039
92039
92039A
92039A
92039A
92039A
92075
92075
92075
92075
92152
92152
92152
92152
92152
92152
92152
92152
92152A
92152A
92152A
92152A
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153
92153A
92153A
92153A
92153A
92160
92160
92160
92160
92160
92160
92160
92160
92161
92161
92161
92161
92161A
92161A
92161A
92161A
92161B
92161B
92161C
92161C
92161C
92161C
92200
92200
92200
92200
92200
92200
92200
92200
92200A
92200A
92200A
92200A
92200B
92200B
92200B
92200B
92200B
92200B
92200B
92200B
92200B
92200B
92200B
92200B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,WINDSHIELD,LH | 11054 | 11054-0380 | 1 | ||
| BRACKET,WINDSHIELD,RH | 11054A | 11054-0381 | 1 | ||
| BRACKET,UPP COWLING,LH | 11054B | 11054-0460 | 1 | ||
| BRACKET,UPP COWLING,RH | 11054C | 11054-1469 | 1 | ||
| COVER | 14091 | 14091-0606 | 2 | ||
| COVER | 14091A | 14091-0607 | 4 | ||
| COVER,RADIATOR,LH,P.SILVER | 14091D | 14091-0750-458 | 1 | ||
| COVER,RADIATOR,RH,P.SILVER | 14091G | 14091-0751-458 | 1 | ||
| BRACKET-COMP,UPP COWLING | 23062A | 23062-0063 | 1 | ||
| WINDSHIELD | 39154 | 39154-0022 | 1 | ||
| COWLING,INNER | 55028 | 55028-0109 | 1 | ||
| COWLING,UPP,LH,P.RED | 55028D | 55028-0159-234 | 1 | ||
| COWLING,UPP,RH,P.RED | 55028J | 55028-0160-234 | 1 | ||
| NUT,CAP,8MM,BLACK | 92015 | 92015-1174 | 2 | ||
| NUT,LOCK,FLANGE CAP,5MM | 92015A | 92015-1263 | 4 | ||
| WASHER,8.5X20X1.6,BLACK | 92022 | 92022-1317 | 2 | ||
| BOLT-FLANGED,6X14 | 130 | 130BB0614 | 4 | ||
| BOLT-FLANGED,8X20 | 130A | 130BB0820 | 2 | ||
| BOLT-FLANGED-SMALL,6X14 | 132 | 132BA0614 | 4 | ||
| RIVET | 92039 | 92039-0023 | 2 | ||
| RIVET | 92039A | 92039-0062 | 2 | (JKALEEA1 7A006849 - ) | |
| DAMPER | 92075 | 92075-1634 | 2 | ||
| COLLAR | 92152 | 92152-0422 | 6 | ||
| COLLAR | 92152A | 92152-0545 | 2 | ||
| BOLT,6X18 | 92153 | 92153-0478 | 18 | ||
| BOLT,SOCKET,5X16 | 92153A | 92153-1244 | 4 | ||
| DAMPER | 92160 | 92160-1613 | 4 | ||
| DAMPER | 92161 | 92161-0443 | 2 | ||
| DAMPER | 92161A | 92161-0478 | 4 | ||
| DAMPER | 92161B | 92161-0519 | 1 | ||
| DAMPER | 92161C | 92161-1177 | 2 | ||
| WASHER,10.4X15.9X0.5 | 92200 | 92200-0157 | 6 | ||
| WASHER,NYLON,5.2X12X1 | 92200A | 92200-1011 | 4 | ||
| WASHER,6.5X14X1 | 92200B | 92200-1388 | 10 | ||
| COWLING,UPP,LH,C.P.BLUE | 55028F | 55028-0159-723 | 1 | CN | |
| COWLING,UPP,RH,C.P.BLUE | 55028L | 55028-0160-723 | 1 | CN |
