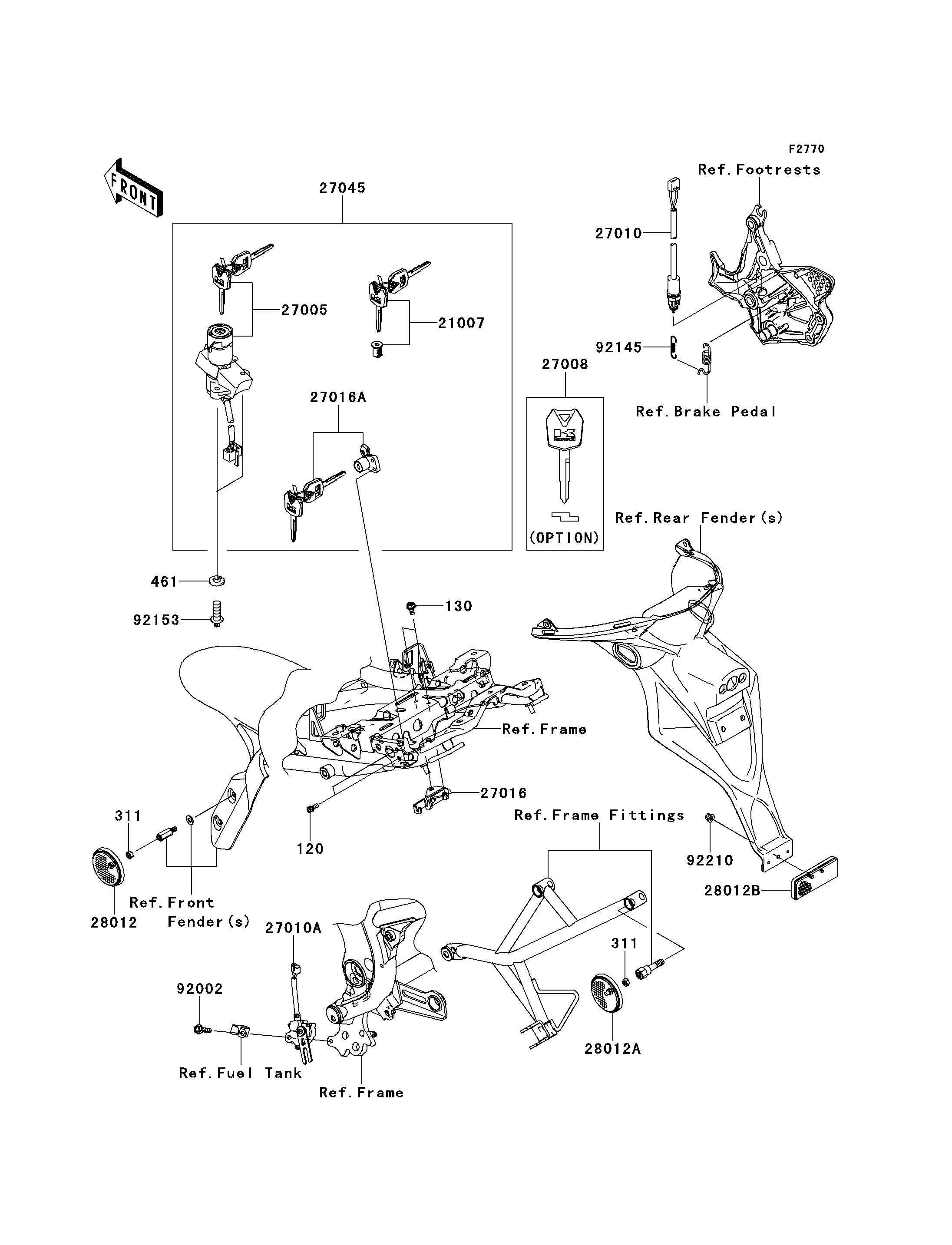

2008 Versys™ - Ignition Switch

DOWNLOAD PDF
SELECT A NEW PART
120
130
311
311
461
21007
27005
27008
27010
27010A
27016
27016A
27045
28012
28012A
28012B
92002
92145
92153
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,5X12 120 120CB0512 2
BOLT-FLANGED,6X12 130 130BB0612 2
NUT-HEX 311 311AB0500 4
WASHER-SPRING,6MM 461 461DA0600 2
ROTOR,LOCK,TANK CAP 21007 21007-5057 1
SWITCH-ASSY-IGNITION 27005 27005-5141 1
KEY-LOCK,BLANK 27008 27008-0030 1 (OPTION)
SWITCH,REAR BRAKE 27010 27010-0072 1
SWITCH,SIDE STAND 27010A 27010-1455 1
LOCK-ASSY,SEAT STRIKER 27016 27016-1115 1
LOCK-ASSY,SEAT 27016A 27016-5309 1
SWITCH-ASSY 27045 27045-5360 1
REFLECTOR-REFLEX,FR,SIDE 28012 28012-0001 2
REFLECTOR-REFLEX 28012A 28012-0002 2
REFLECTOR-REFLEX 28012B 28012-1077 1
BOLT,FLANGED,6X25 92002 92002-1582 1
SPRING,REAR BRAKE SWITCH 92145 92145-0091 1
BOLT,TORX,6X16 92153 92153-0967 2
NUT,FLANGED,5MM 92210 92210-0007 1
