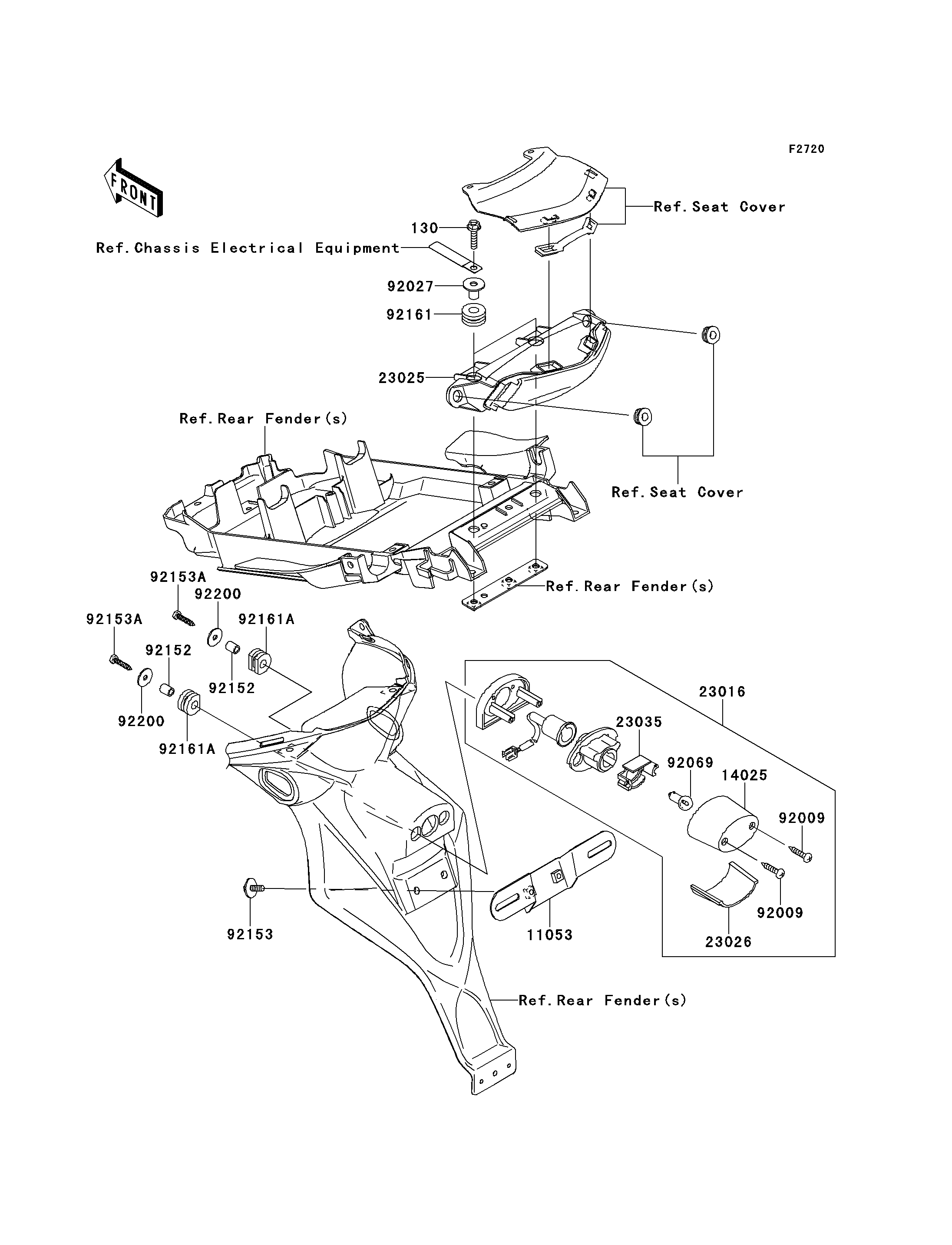

2008 Versys™ - Taillight(s)

DOWNLOAD PDF
SELECT A NEW PART
130
11053
14025
23016
23025
23026
23035
92009
92009
92027
92069
92152
92152
92153
92153A
92153A
92161
92161A
92161A
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X25 130 130BB0625 2
BRACKET,LICENSE 11053 11053-0400 1
COVER,LICENSE LAMP 14025 14025-1725 1
LAMP-ASSY,LICENSE 23016 23016-0003 1
LAMP-TAIL 23025 23025-0048 1
LENS,LICENSE LAMP 23026 23026-1064 1
REFLECTOR-LAMP,LICENSE 23035 23035-1066 1
SCREW,TAPPING,4X20 92009 92009-1378 2
COLLAR,L=16.1 92027 92027-1847 2
BULB,12V 5W 92069 92069-1055 1
COLLAR,6X9X11.5 92152 92152-0372 2
BOLT,6X16 92153 92153-0684 2
BOLT,TAPPING,5X25 92153A 92153-1424 2
DAMPER 92161 92161-0163 2
DAMPER 92161A 92161-1313 2
WASHER,5.5X20X1.2 92200 92200-0284 2
