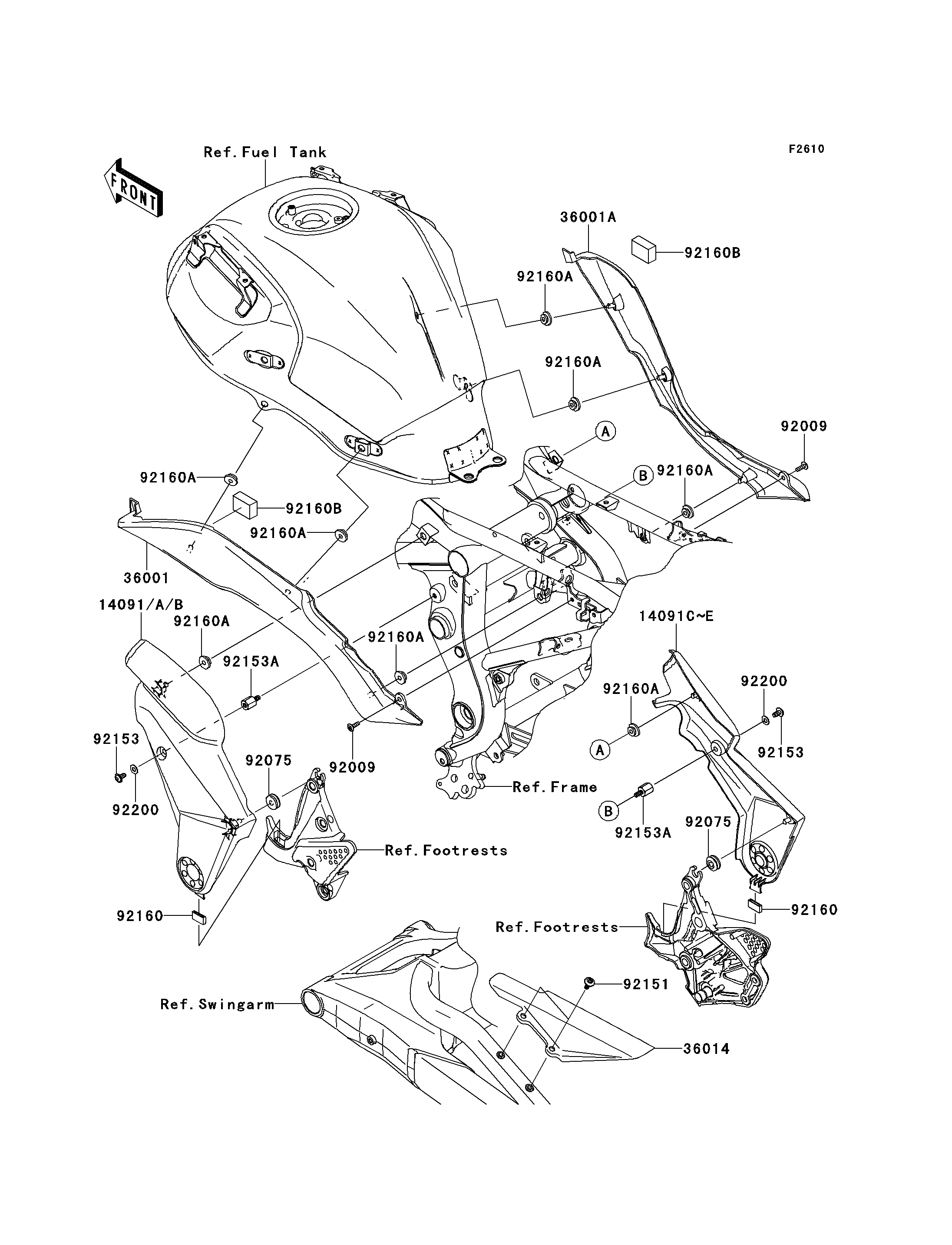

2008 Versys™ - Side Covers/Chain Cover
14091B
14091E
36001
36001A
36014
92009
92009
92075
92075
92151
92153
92153
92153A
92153A
92160
92160
92160A
92160A
92160A
92160A
92160A
92160A
92160A
92160A
92160B
92160B
92200
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,PIVOT,LH,P.SILVER | 14091B | 14091-0739-458 | 1 | ||
| COVER,PIVOT,RH,P.SILVER | 14091E | 14091-0740-458 | 1 | ||
| COVER-SIDE,LH,F.BLACK | 36001 | 36001-0096-6Z | 1 | ||
| COVER-SIDE,RH,F.BLACK | 36001A | 36001-0097-6Z | 1 | ||
| CASE-CHAIN,RR | 36014 | 36014-0018 | 1 | ||
| SCREW,5X16 | 92009 | 92009-1909 | 2 | ||
| DAMPER | 92075 | 92075-1067 | 2 | ||
| BOLT,SOCKET,6X14 | 92151 | 92151-1654 | 2 | ||
| BOLT,SOCKET,6X12 | 92153 | 92153-1275 | 2 | ||
| BOLT,6MM | 92153A | 92153-1661 | 2 | ||
| DAMPER | 92160 | 92160-1190 | 2 | ||
| DAMPER | 92160A | 92160-1613 | 8 | ||
| DAMPER | 92160B | 92160-1769 | 2 | ||
| WASHER,6.5X14X1 | 92200 | 92200-1388 | 2 |
| COVER,PIVOT,LH,P.SILVER | |
| REF # | 14091B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,PIVOT,RH,P.SILVER | |
| REF # | 14091E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,LH,F.BLACK | |
| REF # | 36001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,RH,F.BLACK | |
| REF # | 36001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE-CHAIN,RR | |
| REF # | 36014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X16 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X14 | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X12 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,6MM | |
| REF # | 92153A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92160A |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92160B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X14X1 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
