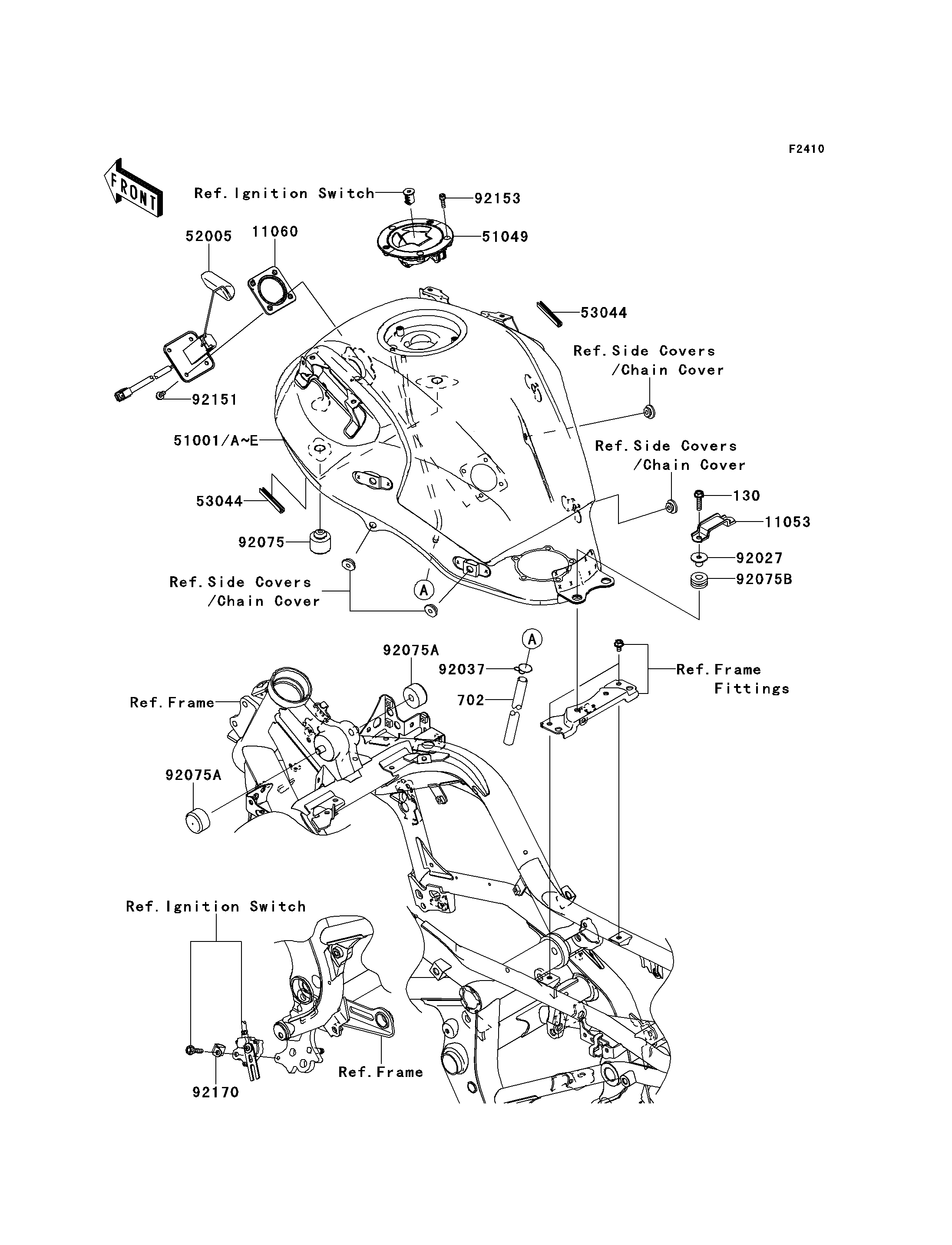

2008 Versys™ - Fuel Tank(A7F/A8F)

DOWNLOAD PDF
SELECT A NEW PART
130
702
11053
11060
51001B
51049
52005
53044
53044
92027
92037
92075
92075A
92075A
92075B
92151
92153
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X25 130 130BB0625 2
TUBE-RUBBER,6X9X750 702 702A06750 1
BRACKET,SEAT 11053 11053-1812 1
GASKET,FUEL GAUGE 11060 11060-1952 1
TANK-COMP-FUEL,P.RED 51001B 51001-0194-234 1
CAP-TANK,FUEL 51049 51049-0012 1
GAUGE,FUEL 52005 52005-0023 1
TRIM,L=60 53044 53044-1249 2
COLLAR,L=13.1 92027 92027-251 2
CLAMP,TUBE 92037 92037-010 1
DAMPER 92075 92075-1002 2
DAMPER,FUEL TANK 92075A 92075-125 2
DAMPER 92075B 92075-1690 2
BOLT,5X12 92151 92151-1599 4
BOLT,SOCKET,5X16 92153 92153-1616 3
CLAMP 92170 92170-1833 1
TANK-COMP-FUEL,C.P.BLUE 51001C 51001-0194-723 1 CN
