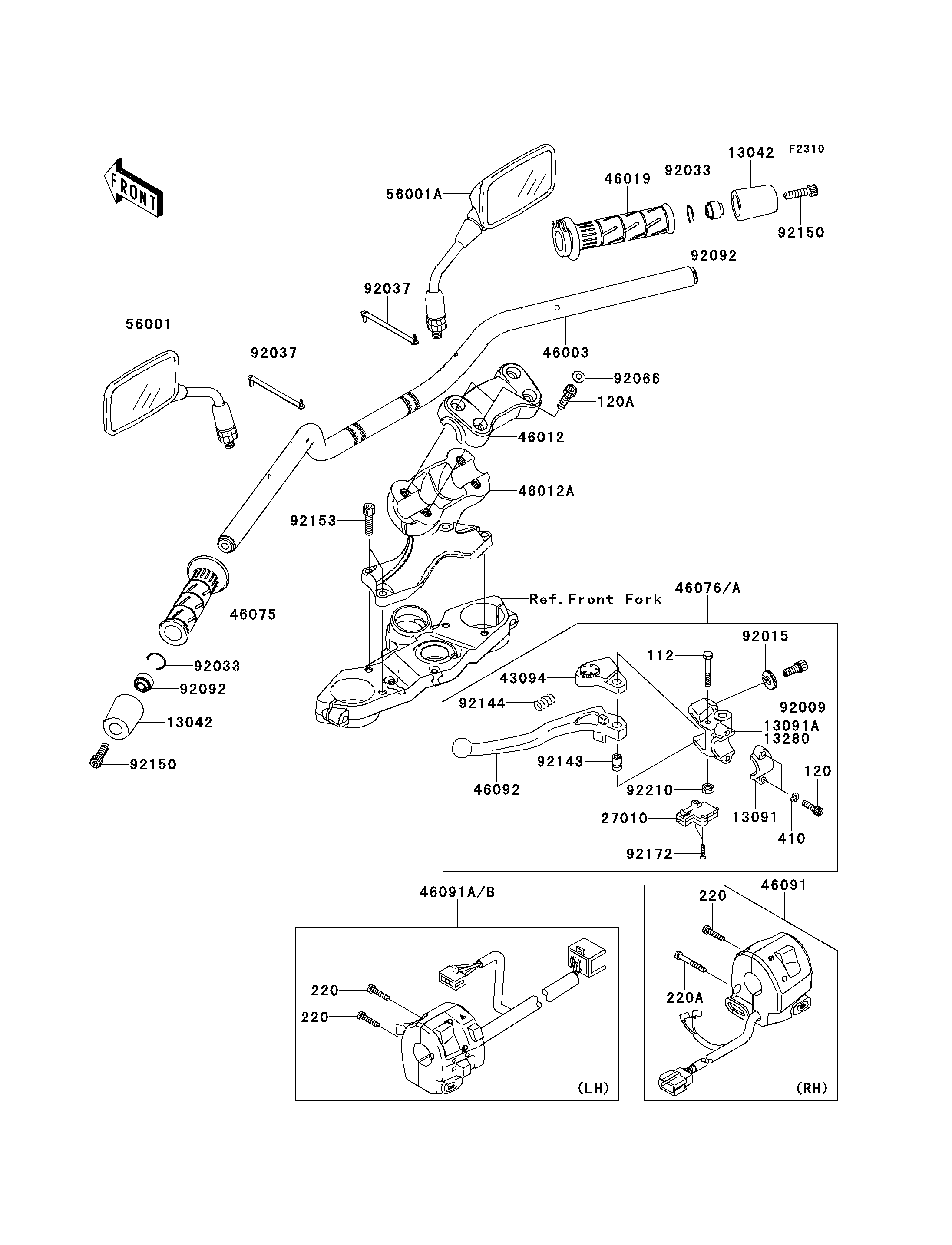

2008 Versys™ - Handlebar(A7F/A8F)

DOWNLOAD PDF
SELECT A NEW PART
112
120
120A
220
220
220
220A
410
13042
13042
13091
13280
27010
43094
46003
46012
46012A
46019
46075
46076
46091
46091B
46092
56001
56001A
92009
92015
92033
92033
92037
92037
92066
92092
92092
92143
92144
92150
92150
92153
92172
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET,6X40 112 112C0640 1
BOLT-SOCKET,6X20 120 120CB0620 2
BOLT-SOCKET,8X30 120A 120CB0830 4
SCREW-PAN-CROS,5X25 220 220AB0525 3
SCREW-PAN-CROSS,5X40 220A 220AB0540 1
WASHER-PLAIN-SMALL,6MM 410 410AB0600 2
WEIGHT,HANDLE 13042 13042-1006 2
HOLDER,CLUTCH LEVER 13091 13091-1624 1
HOLDER,CLUTCH LEVER 13280 13280-0248 1
SWITCH,CLUTCH,BLACK 27010 27010-1094 1
ADJUSTER,CLUTCH LEVER 43094 43094-1053 1
HANDLE,F.P.SILVER 46003 46003-0120-10T 1
HOLDER-HANDLE,UPP,P.SILVER 46012 46012-0029-458 1
HOLDER-HANDLE,LWR,P.SILVER 46012A 46012-0030-458 1
GRIP-ASSY,THROTTLE 46019 46019-0001 1
GRIP,LH 46075 46075-1144 1
LEVER-ASSY-GRIP,CLUTCH 46076 46076-0045 1
HOUSING-ASSY-CONTROL,RH 46091 46091-0088 1
HOUSING-ASSY-CONTROL,LH 46091B 46091-0120 1
LEVER-GRIP,CLUTCH 46092 46092-1162 1
MIRROR-ASSY,LH 56001 56001-0121 1
MIRROR-ASSY,RH 56001A 56001-0122 1
SCREW,CABLE ADJUST,8MM,BLACK 92009 92009-1134 1
NUT,CABLE ADJUST LOCK,8MM,BLK 92015 92015-1197 1
RING-SNAP,OD=22.2 92033 92033-1102 2
CLAMP,SPEED,L=80.5 92037 92037-1903 2
PLUG 92066 92066-1281 4
BUSHING-RUBBER,HANDLE 92092 92092-1018 2
COLLAR 92143 92143-1379 1
SPRING 92144 92144-1467 1
BOLT,SOCKET,8X30 92150 92150-1604 2
BOLT,SOCKET,8X30 92153 92153-0513 4
SCREW,3X16 92172 92172-0183 2
NUT,LOCK,6MM 92210 92210-0006 1
