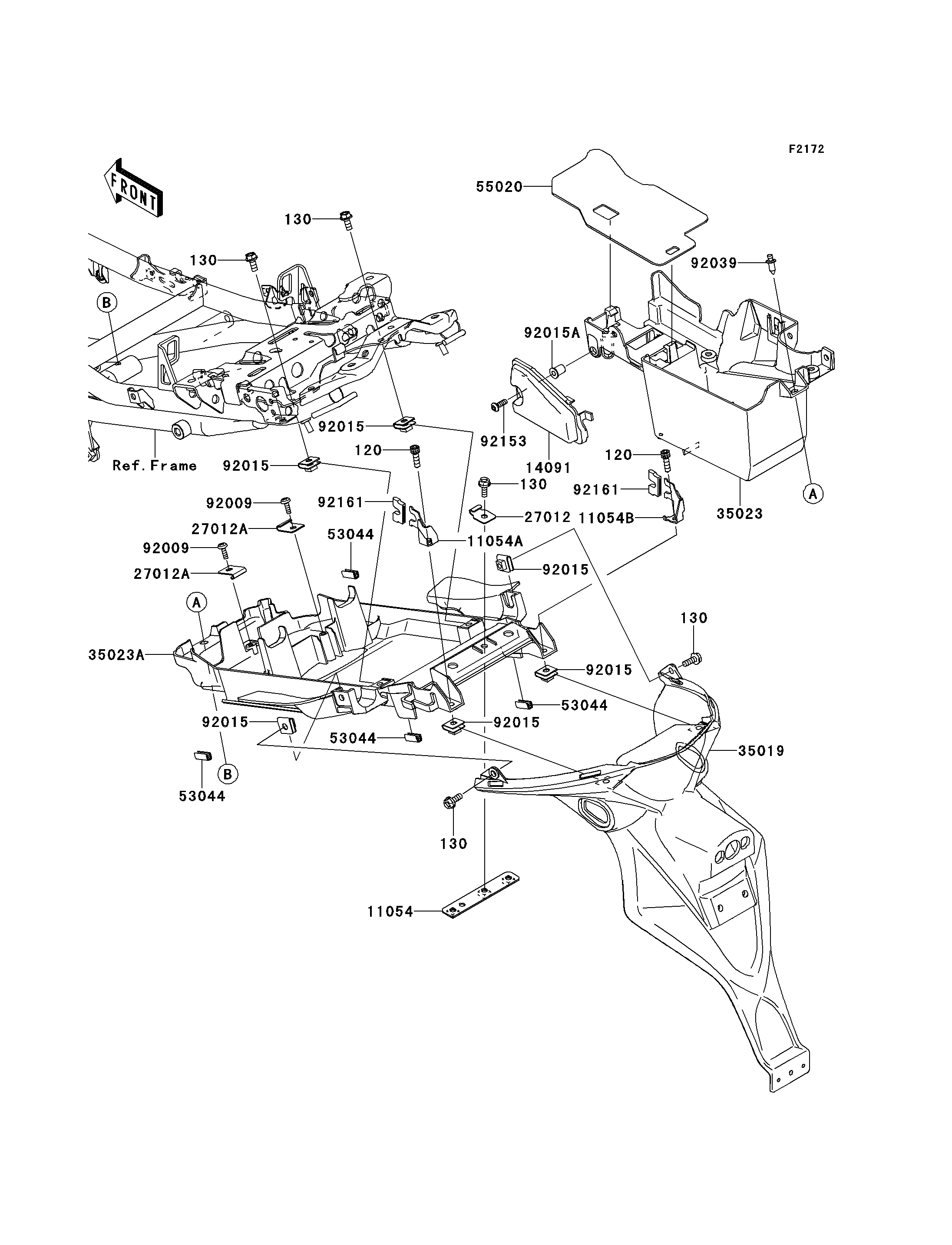

2008 Versys™ - Rear Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
120
120
130
130
130
130
130
11054
11054A
11054B
14091
27012
27012A
27012A
35019
35023
35023A
53044
53044
53044
53044
55020
92009
92009
92015
92015
92015
92015
92015
92015
92015A
92039
92153
92161
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X20 120 120CB0620 2
BOLT-FLANGED,6X16 130 130BB0616 5
BRACKET,TAIL LAMP 11054 11054-0466 1
BRACKET,FLAP,RR,LH 11054A 11054-1524 1
BRACKET,FLAP,RR,RH 11054B 11054-1525 1
COVER,SWITCH MAINTENANCE 14091 14091-0715 1
HOOK 27012 27012-0098 1
HOOK,BATTERY CASE 27012A 27012-1316 2
FLAP,RR FENDER 35019 35019-0048 1
FENDER-REAR,FR 35023 35023-0077 1
FENDER-REAR,RR 35023A 35023-0105 1
TRIM,L=20 53044 53044-0021 4
GUARD,HEAT 55020 55020-0220 1
SCREW,6X14 92009 92009-3845 2
NUT,6MM 92015 92015-1094 6
NUT,WELL,5MM 92015A 92015-1757 1
RIVET 92039 92039-1283 1
BOLT,SOCKET,5X16 92153 92153-1244 1
DAMPER 92161 92161-0494 2
