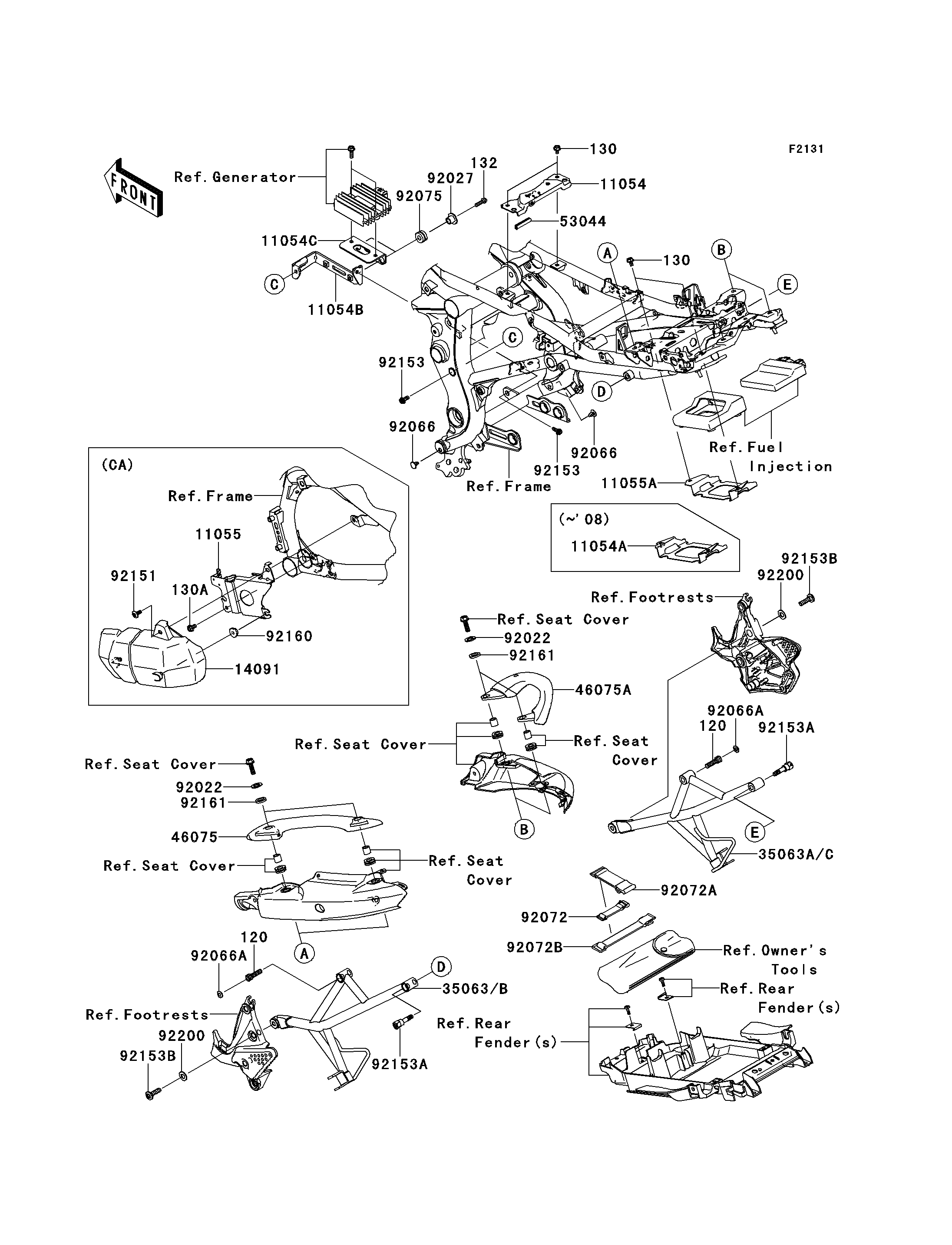

2008 Versys™ - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
120
120
130
130
132
11054
11054A
11054B
11054C
35063B
35063C
46075
46075A
53044
92022
92022
92027
92066
92066
92066A
92066A
92072
92072A
92072B
92075
92153
92153
92153A
92153A
92153B
92153B
92161
92161
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,8X30 120 120CB0830 2
BOLT-FLANGED,6X10 130 130BB0610 4
BOLT-FLANGED-SMALL,6X22 132 132BB0622 2
BRACKET,FUEL TANK 11054 11054-0248 1
BRACKET,ECU 11054A 11054-0370 1
BRACKET,REGULATOR 11054B 11054-1283 1
BRACKET,REGULATOR 11054C 11054-1284 1
STAY,STEP,RR,LH,BLACK 35063B 35063-0478-18R 1
STAY,STEP,RR,RH,BLACK 35063C 35063-0479-18R 1
GRIP,LH 46075 46075-0057 1
GRIP,RH 46075A 46075-0058 1
TRIM,L=40 53044 53044-1174 1
WASHER,PLAIN 92022 92022-3026 4
COLLAR,L=13.1,BLACK 92027 92027-1450 2
PLUG 92066 92066-1103 2
PLUG 92066A 92066-1216 2
BAND 92072 92072-1085 1
BAND,TOOL 92072A 92072-1176 1
BAND,L=150 92072B 92072-1203 1
DAMPER 92075 92075-209 2
BOLT,SOCKET,6X16 92153 92153-1517 2
BOLT 92153A 92153-1532 2
BOLT,SOCKET,8X30 92153B 92153-1630 2
DAMPER 92161 92161-0460 4
WASHER,10.2X20X1.6 92200 92200-0328 2
