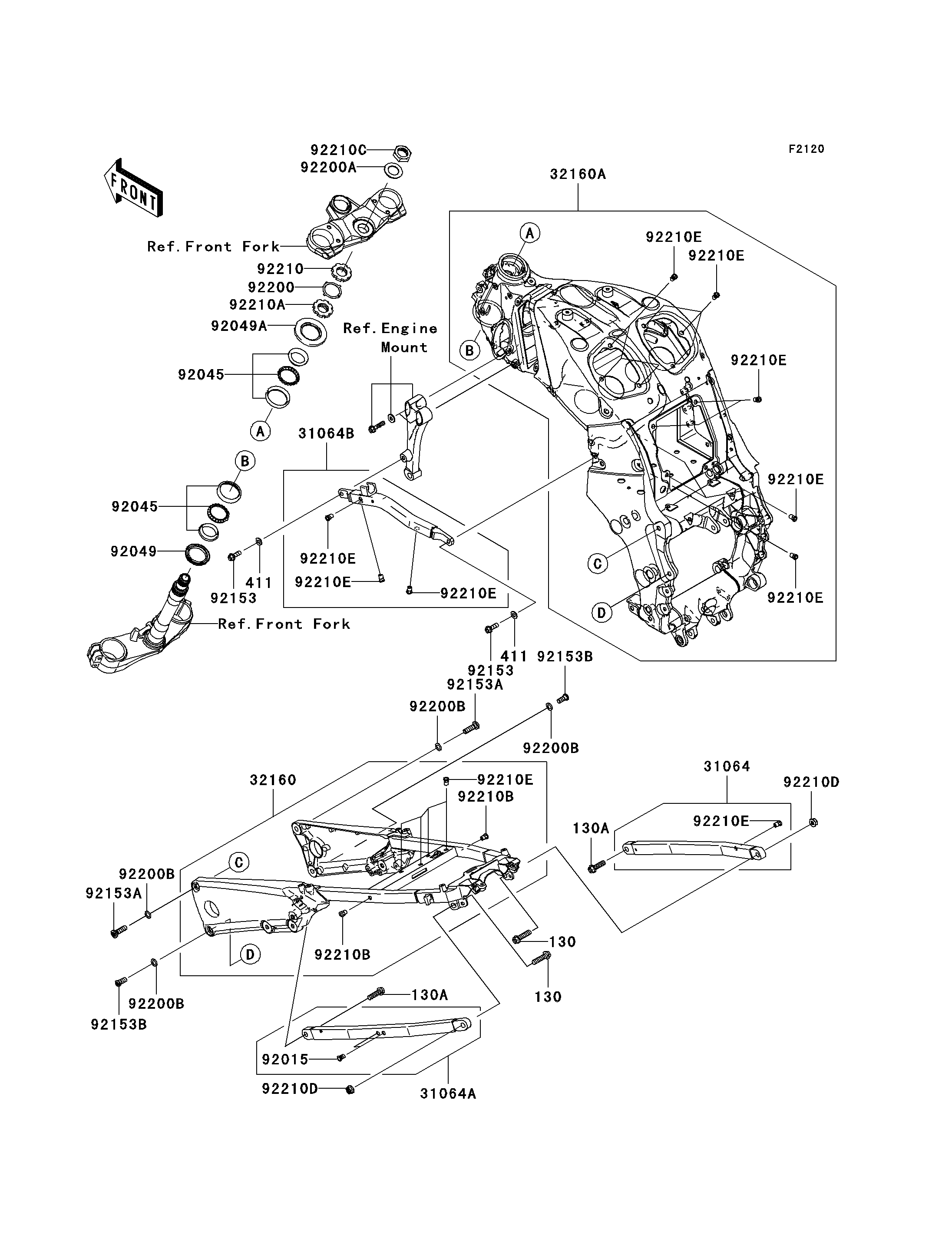

2011 NINJA® ZX™-14 - Frame

DOWNLOAD PDF
SELECT A NEW PART
130
130
130A
130A
411
411
31064
31064A
31064B
32160
32160A
92015
92045
92045
92049
92049A
92153
92153
92153A
92153A
92153B
92153B
92200
92200A
92200B
92200B
92200B
92200B
92210
92210A
92210B
92210B
92210C
92210D
92210D
92210E
92210E
92210E
92210E
92210E
92210E
92210E
92210E
92210E
92210E
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,10X40 130 130BA1040 2
BOLT-FLANGED,10X35 130A 130BB1035 2
WASHER-PLAIN 411 411AA0800 2
PIPE-COMP,RR,RH,BLACK 31064 31064-0045-18R 1
PIPE-COMP,RR,LH,BLACK 31064A 31064-0065-18R 1
PIPE-COMP,SUB FRAME,LH,BLACK 31064B 31064-0099-18R 1
FRAME-COMP,RR,BLACK 32160 32160-0344-18R 1
FRAME-COMP,FR,BLACK 32160A 32160-0469-18R 1
NUT,POP,6MM,L=15 92015 92015-1791 2
BEARING-BALL,SF07A17PX1V1 92045 92045-1384 2
SEAL-OIL,DS35X55X4 92049 92049-0022 1
SEAL-OIL,XMH 43 75 6.4J 92049A 92049-1382 1
BOLT,FLANGED,8X25 92153 92153-1768 2
BOLT,SOCKET,10X35 92153A 92153-1904 2
BOLT,SOCKET,10X22 92153B 92153-1905 2
WASHER 92200 92200-0281 1
WASHER,25.5X42X2.3 92200A 92200-0282 1
WASHER,11X18X1 92200B 92200-0324 4
NUT,35MM 92210 92210-0095 1
NUT,35MM 92210A 92210-0096 1
NUT,POP,6MM,L=16.5 92210B 92210-0324 2
NUT,M25X1.0 92210C 92210-0584 1
NUT,LOCK,FLANGED,10MM 92210D 92210-1139 2
NUT,POP,6MM,L=15 92210E 92210-1397 20
