Parts Diagrams |

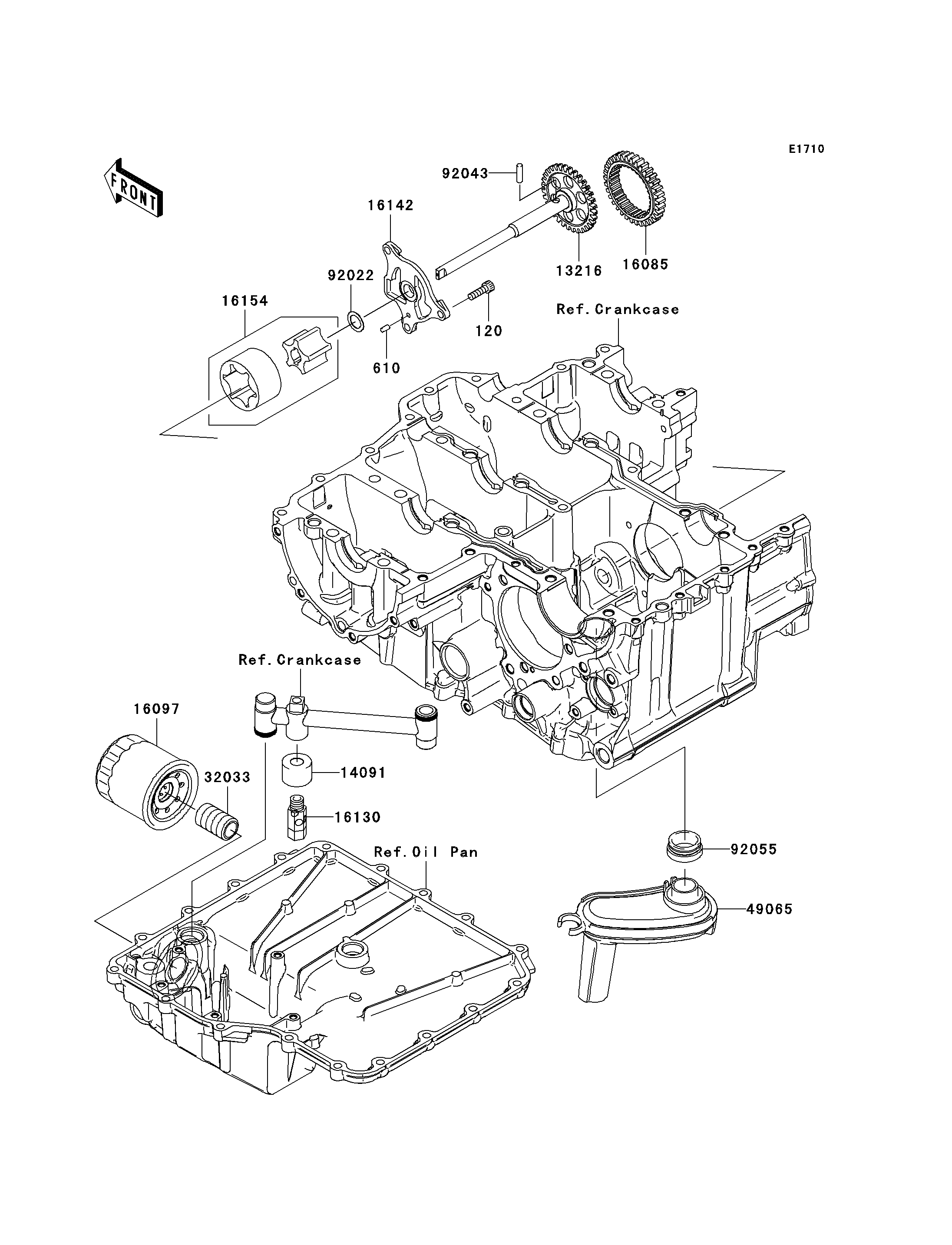

2011 NINJA® ZX™-14 - Oil Pump/Oil Filter
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SOCKET,6X20 | 120 | 120CA0620 | 3 | ||
| ROLLER,4X8 | 610 | 610A0408 | 1 | ||
| GEAR-COMP,OIL COMP | 13216 | 13216-0030 | 1 | ||
| COVER,VALVE | 14091 | 14091-0497 | 1 | ||
| GEAR,34T | 16085 | 16085-0079 | 1 | ||
| FILTER-ASSY-OIL | 16097 | 16097-0004 | 1 | ||
| VALVE-ASSY-RELIEF | 16130 | 16130-1059 | 1 | ||
| COVER-PUMP | 16142 | 16142-0027 | 1 | ||
| ROTOR-PUMP | 16154 | 16154-0047 | 1 | ||
| PIPE,OIL FILTER | 32033 | 32033-1535 | 1 | ||
| FILTER-OIL | 49065 | 49065-0014 | 1 | ||
| WASHER,13.2X20X0.5 | 92022 | 92022-1224 | 1 | ||
| PIN,17.9X5.0 | 92043 | 92043-1444 | 1 | ||
| RING-O,OIL FILTER | 92055 | 92055-1503 | 1 |
