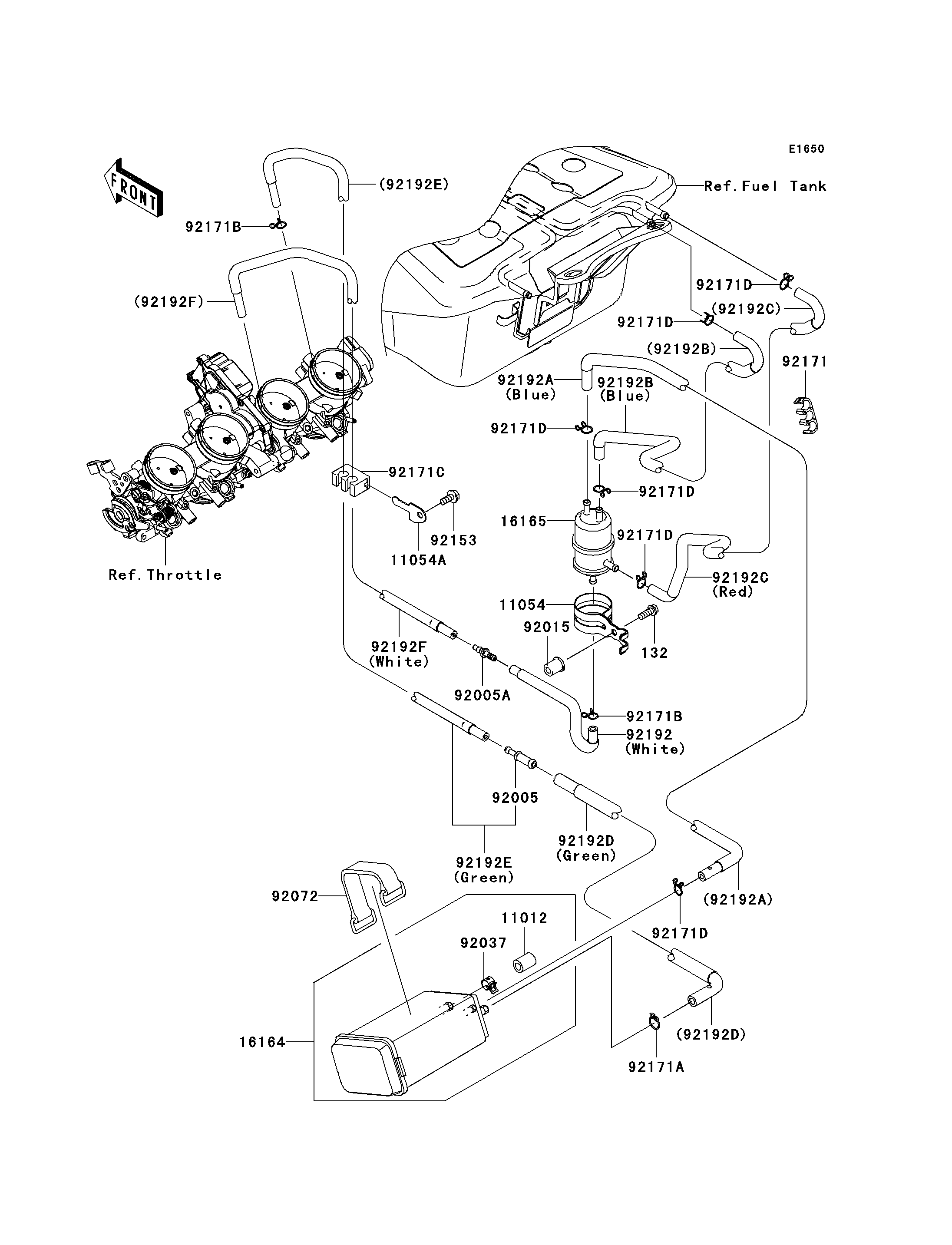

2011 NINJA® ZX™-14 - Fuel Evaporative System(CA)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,CANISTER | 11012 | 11012-1388 | 1 | CA | |
| BRACKET | 11054 | 11054-0197 | 1 | CA | |
| BRACKET | 11054A | 11054-0464 | 1 | CA | |
| CANISTER | 16164 | 16164-1054 | 1 | CA | |
| SEPARATOR | 16165 | 16165-1001 | 1 | CA | |
| FITTING | 92005 | 92005-0032 | 1 | CA | |
| FITTING | 92005A | 92005-1206 | 1 | CA | |
| NUT | 92015 | 92015-1700 | 1 | CA | |
| CLAMP,CANISTER | 92037 | 92037-1512 | 1 | CA | |
| BAND | 92072 | 92072-0050 | 1 | CA | |
| BOLT,FLANGED,6X14 | 92153 | 92153-1571 | 1 | CA | |
| CLAMP | 92171 | 92171-0334 | 1 | CA | |
| CLAMP | 92171A | 92171-0574 | 1 | CA | |
| CLAMP | 92171B | 92171-0576 | 2 | CA | |
| CLAMP | 92171C | 92171-0693 | 1 | CA | |
| CLAMP | 92171D | 92171-0718 | 6 | CA | |
| TUBE,SEPARATOR-FITTING,WHITE | 92192 | 92192-0329 | 1 | CA | |
| TUBE,CANISTER-SEPARATOR,BLUE | 92192A | 92192-0511 | 1 | CA | |
| TUBE,TANK-SEPARATOR,BLUE | 92192B | 92192-0512 | 1 | CA | |
| TUBE,TANK-SEPARATOR,RED | 92192C | 92192-0513 | 1 | CA | |
| TUBE,CANISTER-FITTING,GREEN | 92192D | 92192-0514 | 1 | CA | |
| TUBE,THROBO #4-GRN TUBE | 92192E | 92192-0515 | 1 | CA | |
| BOLT-FLANGED-SMALL,6X16 | 132 | 132BA0616 | 1 | CA | |
| TUBE,THROBO #3-FITTING,WHITE | 92192F | 92192-0603 | 1 | CA |
| CAP,CANISTER | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| BRACKET | |
| REF # | 11054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| BRACKET | |
| REF # | 11054A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CANISTER | |
| REF # | 16164 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| SEPARATOR | |
| REF # | 16165 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| FITTING | |
| REF # | 92005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| FITTING | |
| REF # | 92005A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| NUT | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP,CANISTER | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| BAND | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| BOLT,FLANGED,6X14 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP | |
| REF # | 92171A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP | |
| REF # | 92171B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP | |
| REF # | 92171C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CLAMP | |
| REF # | 92171D |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,SEPARATOR-FITTING,WHITE | |
| REF # | 92192 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,CANISTER-SEPARATOR,BLUE | |
| REF # | 92192A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,TANK-SEPARATOR,BLUE | |
| REF # | 92192B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,TANK-SEPARATOR,RED | |
| REF # | 92192C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,CANISTER-FITTING,GREEN | |
| REF # | 92192D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,THROBO #4-GRN TUBE | |
| REF # | 92192E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| BOLT-FLANGED-SMALL,6X16 | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| TUBE,THROBO #3-FITTING,WHITE | |
| REF # | 92192F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
