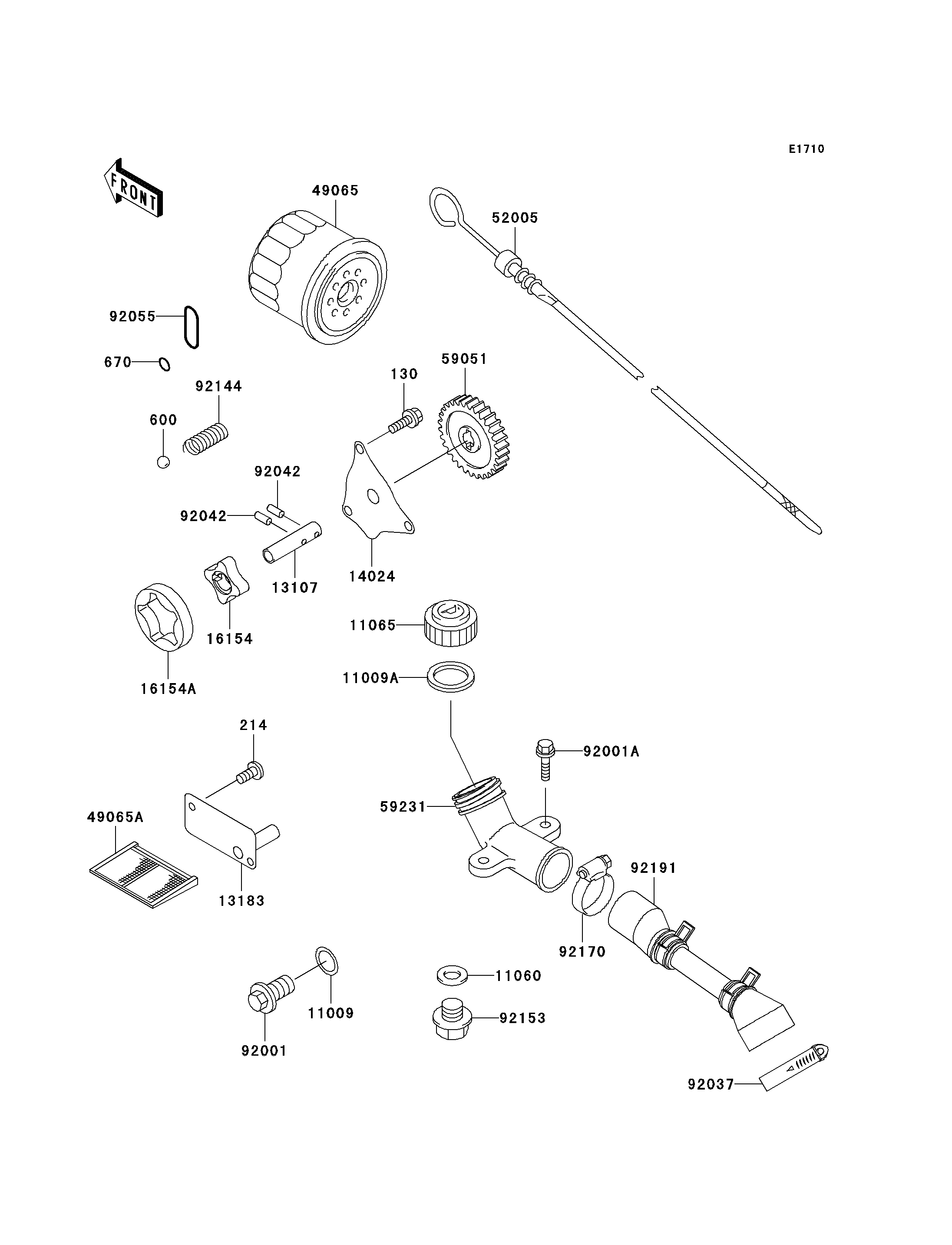

Mule 3010 4X4 - Oil Pump/Oil Filter

DOWNLOAD PDF
SELECT A NEW PART
130
214
600
670
11009
11009A
11060
11065
13107
13183
14024
16154
16154A
49065
49065A
52005
59051
59231
92001
92001A
92037
92042
92042
92055
92144
92153
92170
92191
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130B0614 3
SCREW-PAN+- 214 214B0512 2
BALL-STEEL,13/32" 600 600A1300 1
O RING,11MM 670 670B2011 1
GASKET,16.2X22X1 11009 11009-1467 1
GASKET,OIL GAUGE 11009A 11009-2346 1
GASKET,ROCKER SHAFT 11060 11060-1287 1
CAP 11065 11065-1167 1
SHAFT 13107 13107-2099 1
PLATE 13183 13183-2419 1
COVER 14024 14024-2113 1
ROTOR-PUMP,IN 16154 16154-2053 1
ROTOR-PUMP,OUT 16154A 16154-2054 1
FILTER-OIL 49065 49065-2071 1
FILTER-OIL 49065A 49065-2072 1
GAUGE 52005 52005-2149 1
GEAR-SPUR 59051 59051-2114 1
FILLER 59231 59231-1106 1
BOLT,FLANGED,16X11.5 92001 92001-1114 1
BOLT,6X20 92001A 92001-1460 2
CLAMP 92037 92037-506 1
PIN,DOWEL,4X15.8 92042 92042-014 2
RING-O 92055 92055-2086 1
SPRING 92144 92144-2053 1
BOLT,FLANGED,14X10 92153 92153-0008 1
CLAMP 92170 92170-1036 1
TUBE 92191 92191-1579 1
