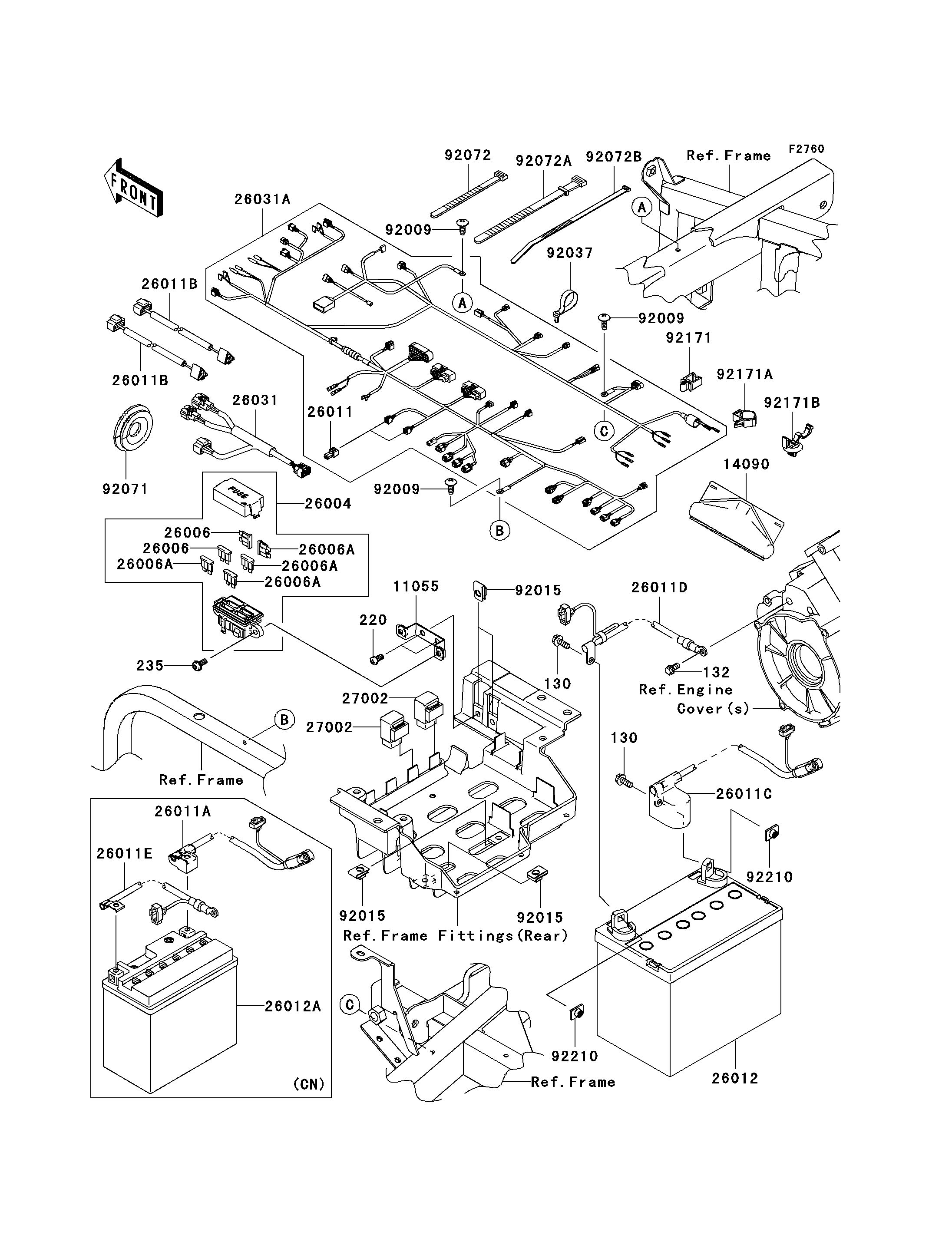

2009 Teryx® 750 FI 4x4 LE - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
132
220
235
11055
14090
26004
26006
26006
26006A
26006A
26006A
26006A
26011
26011B
26011B
26031
26031A
27002
27002
92009
92009
92009
92015
92015
92015
92037
92071
92072
92072A
92072B
92171
92171A
92171B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X12 132 132BD0612 1
SCREW-PAN-CROSS,6X12 220 220AA0612 2
SCREW-PAN-WP-CROS,6X14 235 235AA0614 2
BRACKET,FUSE&CONTROL UNIT 11055 11055-1391 1
COVER,COUPLER 14090 14090-1331 1
FUSE-ASSY 26004 26004-0016 1
FUSE,30A 26006 26006-0004 2
FUSE,10A 26006A 26006-0005 4
WIRE-LEAD 26011 26011-0037 2
WIRE-LEAD,HEAD LAMP 26011B 26011-0143 2
HARNESS,SUB 26031 26031-0752 1
HARNESS,MAIN 26031A 26031-0781 1
RELAY-ASSY 27002 27002-1062 2
SCREW,TAPPING,6X16 92009 92009-1166 3
NUT,6MM 92015 92015-1602 4
CLAMP,SPEED,L=80.5 92037 92037-1903 5
GROMMET 92071 92071-0030 1
BAND,L=123 92072 92072-030 2
BAND,L=186 92072A 92072-056 1
BAND,L=292.1 92072B 92072-3509 25
CLAMP 92171 92171-0290 3
CLAMP,BRAKE HOSE 92171A 92171-0316 4
CLAMP 92171B 92171-0453 5
BOLT-FLANGED,6X16 130 130BA0616 2 US
WIRE-LEAD,BATTERY(+) 26011A 26011-0130 1 CN
WIRE-LEAD,BATTERY(+) 26011C 26011-0190 1 US
WIRE-LEAD,BATTERY(-) 26011D 26011-0231 1 US
WIRE-LEAD,BATTERY(-) 26011E 26011-0232 1 CN
BATTERY,12V 14AH 26012 26012-0107 1 US
BATTERY,MF,KMX14-BS,12V 12AH 26012A 26012-1414 1 CN
NUT,PLATE,6MM 92210 92210-1352 2 US
