Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |

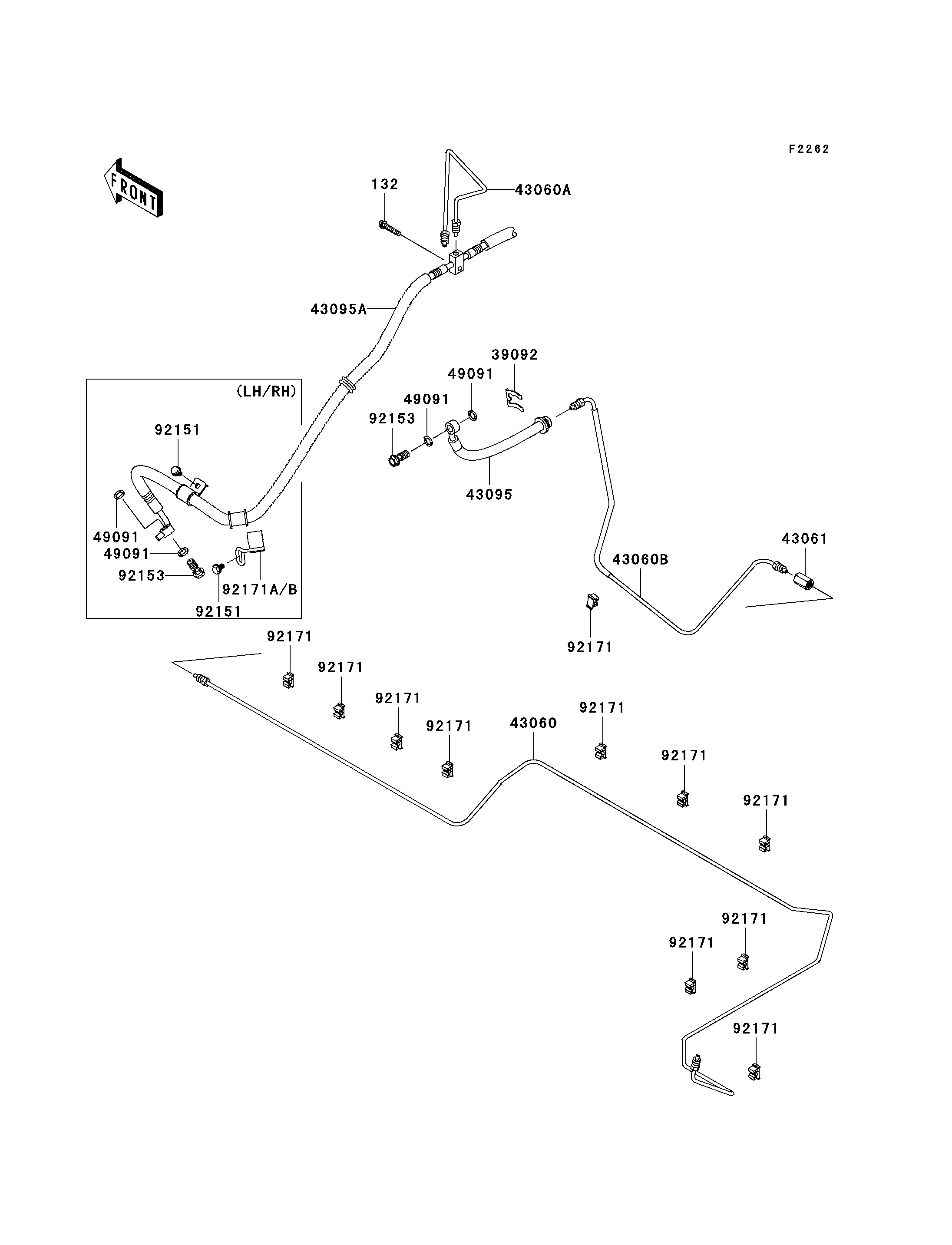

132
39092
43060
43060A
43060B
43061
43095
43095A
49091
49091
49091
49091
92151
92151
92153
92153
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171A
92171B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL,6X30 | 132 | 132BB0630 | 1 | ||
| PIN-HAIR | 39092 | 39092-1052 | 1 | ||
| PIPE-BRAKE,RR,RR | 43060 | 43060-0054 | 1 | ||
| PIPE-BRAKE,FR | 43060A | 43060-0058 | 1 | ||
| PIPE-BRAKE,RR,FR | 43060B | 43060-0066 | 1 | ||
| JOINT-BRAKE | 43061 | 43061-0003 | 1 | ||
| HOSE-BRAKE,RR | 43095 | 43095-0313 | 1 | ||
| HOSE-BRAKE,FR | 43095A | 43095-0429 | 1 | ||
| WASHER-SEAL,10.1X14.5X1.5 | 49091 | 49091-0001 | 6 | ||
| BOLT,6X10 | 92151 | 92151-1344 | 4 | ||
| BOLT,OIL,L=23 | 92153 | 92153-0627 | 3 | ||
| CLAMP | 92171 | 92171-0805 | 11 | ||
| CLAMP,BRAKE HOSE,LH | 92171A | 92171-1841 | 1 | ||
| CLAMP,BRAKE HOSE,RH | 92171B | 92171-1842 | 1 |
| BOLT-FLANGED-SMALL,6X30 | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN-HAIR | |
| REF # | 39092 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE-BRAKE,RR,RR | |
| REF # | 43060 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE-BRAKE,FR | |
| REF # | 43060A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE-BRAKE,RR,FR | |
| REF # | 43060B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| JOINT-BRAKE | |
| REF # | 43061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-BRAKE,RR | |
| REF # | 43095 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-BRAKE,FR | |
| REF # | 43095A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER-SEAL,10.1X14.5X1.5 | |
| REF # | 49091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X10 | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,OIL,L=23 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 11 |
| DESTINATION | |
| REMARKS | |
| CLAMP,BRAKE HOSE,LH | |
| REF # | 92171A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,BRAKE HOSE,RH | |
| REF # | 92171B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
