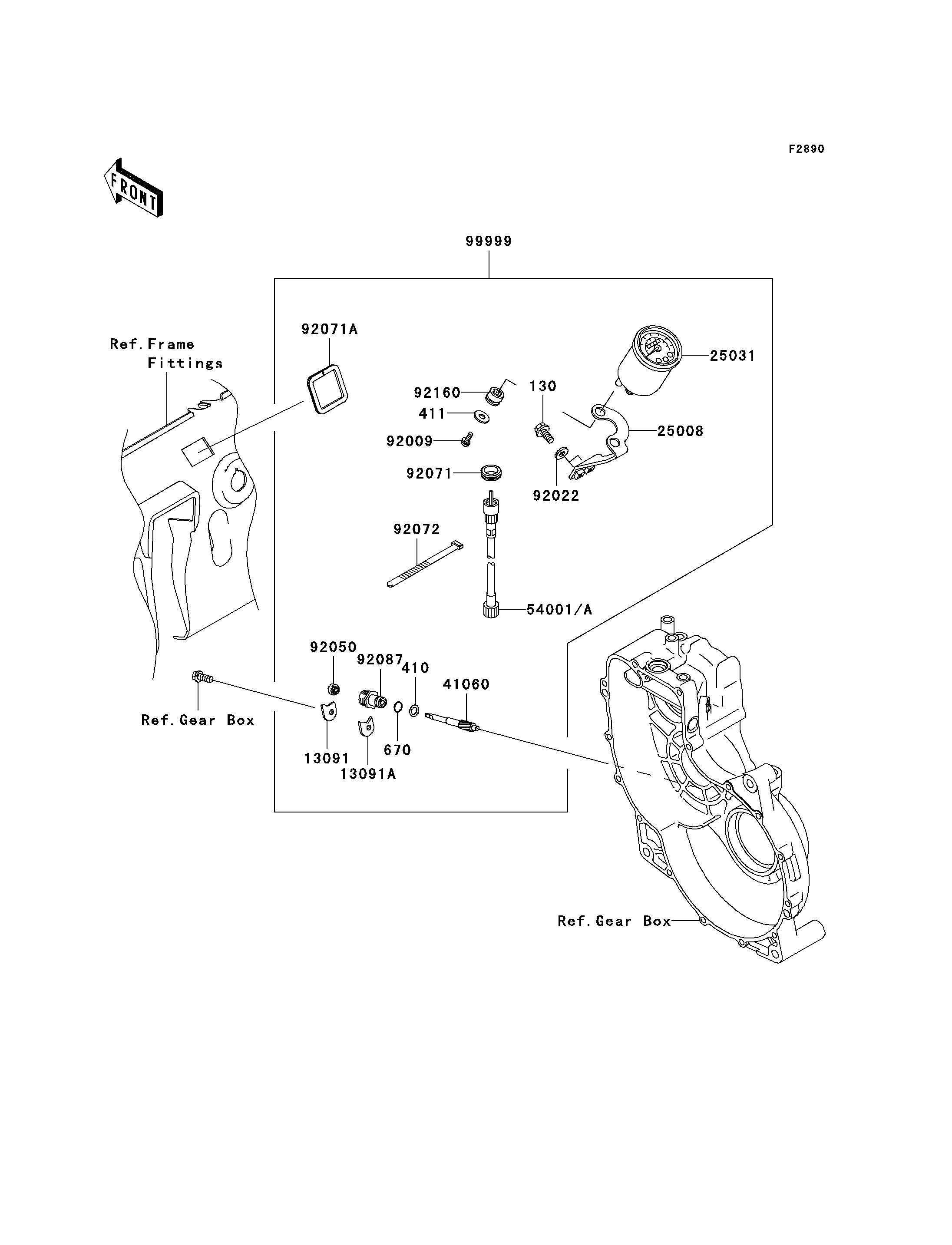

2008 Mule 3010 Trans4x4 Hardwoods Green HD - Optional Parts

DOWNLOAD PDF
SELECT A NEW PART
130
410
411
670
13091
13091A
25008
25031
41060
54001A
92009
92022
92050
92071
92071A
92072
92087
92160
99999
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14 130 130BB0614 2
WASHER-PLAIN-SMALL,6MM 410 410B0600 1
WASHER-PLAIN,8MM 411 411B0800 2
O RING,10MM 670 670D1510 1
HOLDER,T=2.3 13091 13091-1008 1
HOLDER,T=3.2 13091A 13091-1009 1
BRACKET-METER 25008 25008-1228 1
METER-ASSY,MPH 25031 25031-1190 1
GEAR-METER SCREW 41060 41060-1148 1
CABLE-SPEEDMETER 54001A 54001-7502 1
SCREW,5X12 92009 92009-3740 2
WASHER,6.5X16X1.0 92022 92022-1093 2
SEAL-OIL 92050 92050-075 1
GROMMET 92071 92071-1027 1
GROMMET 92071A 92071-7504 1
BAND,L=188 92072 92072-1239 4
BUSHING-METER GEAR 92087 92087-010 1
DAMPER 92160 92160-1461 2
KIT.,SPEEDOMETER 99999 99999-7505 1
