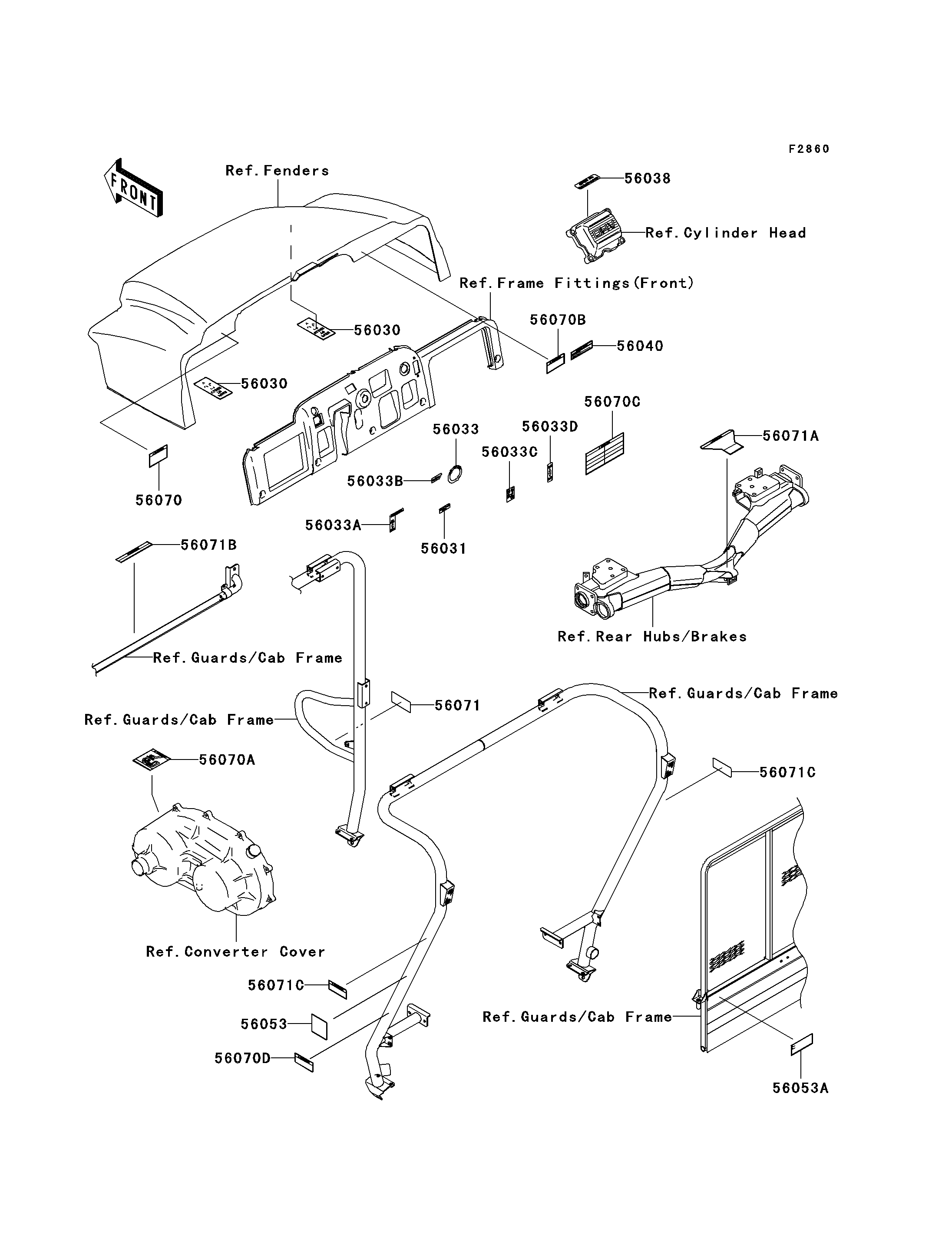

2008 Mule 3010 Trans4x4 Hardwoods Green HD - Labels

DOWNLOAD PDF
SELECT A NEW PART
56030
56030
56031
56033
56033A
56033B
56033C
56033D
56038
56040
56053
56053A
56070
56070A
56070B
56070C
56070D
56071
56071A
56071B
56071C
56071C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL,BONNET OPERATION 56030 56030-1240 2
LABEL-MANUAL,BRAKE FLUID LEVEL 56031 56031-1818 1
LABEL-MANUAL,IGNITION,ON/OFF 56033 56033-0162 1
LABEL-MANUAL,DIFF MODE 56033A 56033-1183 1
LABEL-MANUAL,IGNITION 56033B 56033-1184 1
LABEL-MANUAL,SHIFT 56033C 56033-1186 1
LABEL-MANUAL,2WD/4WD 56033D 56033-1187 1
LABEL-BRAND 56038 56038-2782 1
LABEL-WARNING,SHIFT CAUTION 56040 56040-1342 1
LABEL-SPECIFICATION,TIRE 56053 56053-7506 1
LABEL-SPECIFICATION,CARGO BED 56053A 56053-7528 1
LABEL-WARNING,OFF-HIGHWAY 56070 56070-0050 1
LABEL-WARNING,HOT SURFACES 56070A 56070-0051 1
LABEL-WARNING,BONNET OPERATION 56070B 56070-0053 1
LABEL-WARNING,GENERAL 56070C 56070-7507 1
LABEL-WARNING,BED RAISED 56070D 56070-7515 1
LABEL-WARNING,GASOLINE 56071 56071-7501 1
LABEL-WARNING,TRAILER HITCH 56071A 56071-7511 1
LABEL-WARNING,REAR SEAT 56071B 56071-7513 1
LABEL-WARNING,CAB FRAME 56071C 56071-7514 2
