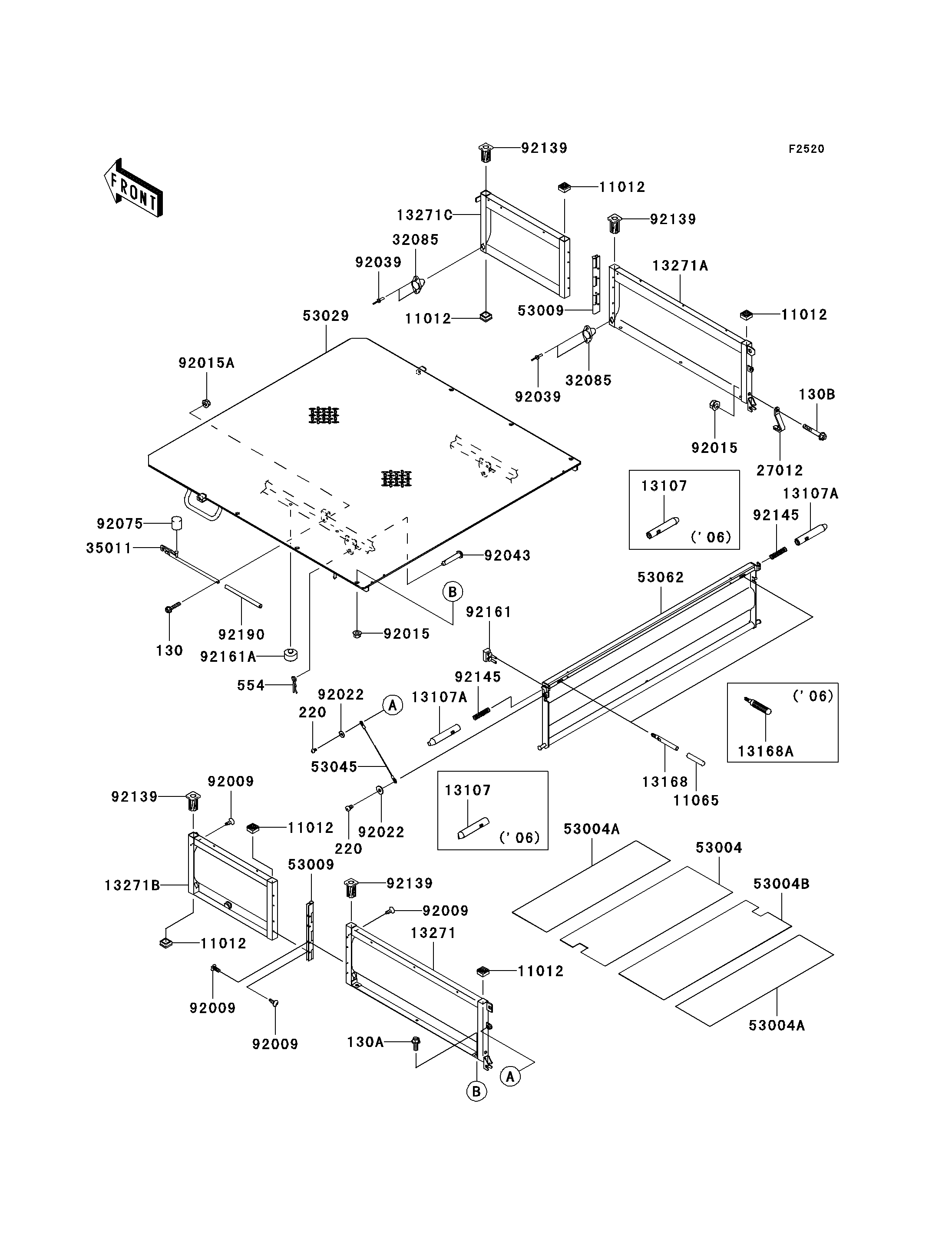

2008 Mule 3010 Trans4x4 Hardwoods Green HD - Carrier(s)

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130B
220
220
554
11012
11012
11012
11012
11012
11012
11065
13107A
13107A
13168
13271
13271A
13271B
13271C
27012
32085
32085
35011
53004
53004A
53004A
53004B
53009
53009
53029
53045
53062
92009
92009
92009
92009
92015
92015
92015A
92022
92022
92039
92039
92043
92075
92139
92139
92139
92139
92145
92145
92161
92161A
92190
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X30 130 130BA0630 1
BOLT-FLANGED,8X20 130A 130BB0820 6
BOLT-FLANGED,8X50 130B 130BB0850 2
SCREW-PAN-CROSS,6X10 220 220AB0610 4
PIN-SNAP,12MM 554 554A1200 2
CAP 11012 11012-1784 6
CAP 11065 11065-0126 2
SHAFT 13107A 13107-0082 2
LEVER 13168 13168-0090 2
PLATE,SIDE,RR,LH,C.H.GREEN 13271 13271-7563-374 1
PLATE,SIDE,RR,RH,C.H.GREEN 13271A 13271-7564-374 1
PLATE,SIDE,FR,LH,C.H.GREEN 13271B 13271-7565-374 1
PLATE,SIDE,FR,RH,C.H.GREEN 13271C 13271-7566-374 1
HOOK,TAIL GATE 27012 27012-0022 2
STOPPER 32085 32085-7501 4
STAY,CARRIER STOPPER 35011 35011-1648 1
MAT 53004 53004-1158 1
MAT 53004A 53004-1160 2
MAT 53004B 53004-7501 1
HINGE,CARRIER 53009 53009-7501 2
CARRIER,BLACK 53029 53029-7512-10 1
HOOK-ASSY,TAIL GATE 53045 53045-0004 2
GATE-TAIL,C.H.GREEN 53062 53062-7504-374 1
SCREW,TAPPING,6X16 92009 92009-1166 20
NUT,FLANGED,8MM 92015 92015-1408 8
NUT,LOCK,FLANGED,6MM 92015A 92015-1675 1
WASHER,7X18X1.2 92022 92022-1545 4
RIVET 92039 92039-1150 8
PIN,12X65 92043 92043-1428 2
DAMPER 92075 92075-1817 1
BUSHING,REAR SCREEN 92139 92139-7501 4
SPRING,TENSIONER 92145 92145-1215 2
DAMPER 92161 92161-0258 2
DAMPER 92161A 92161-7510 8
TUBE,13X16X200 92190 92190-1401 1
