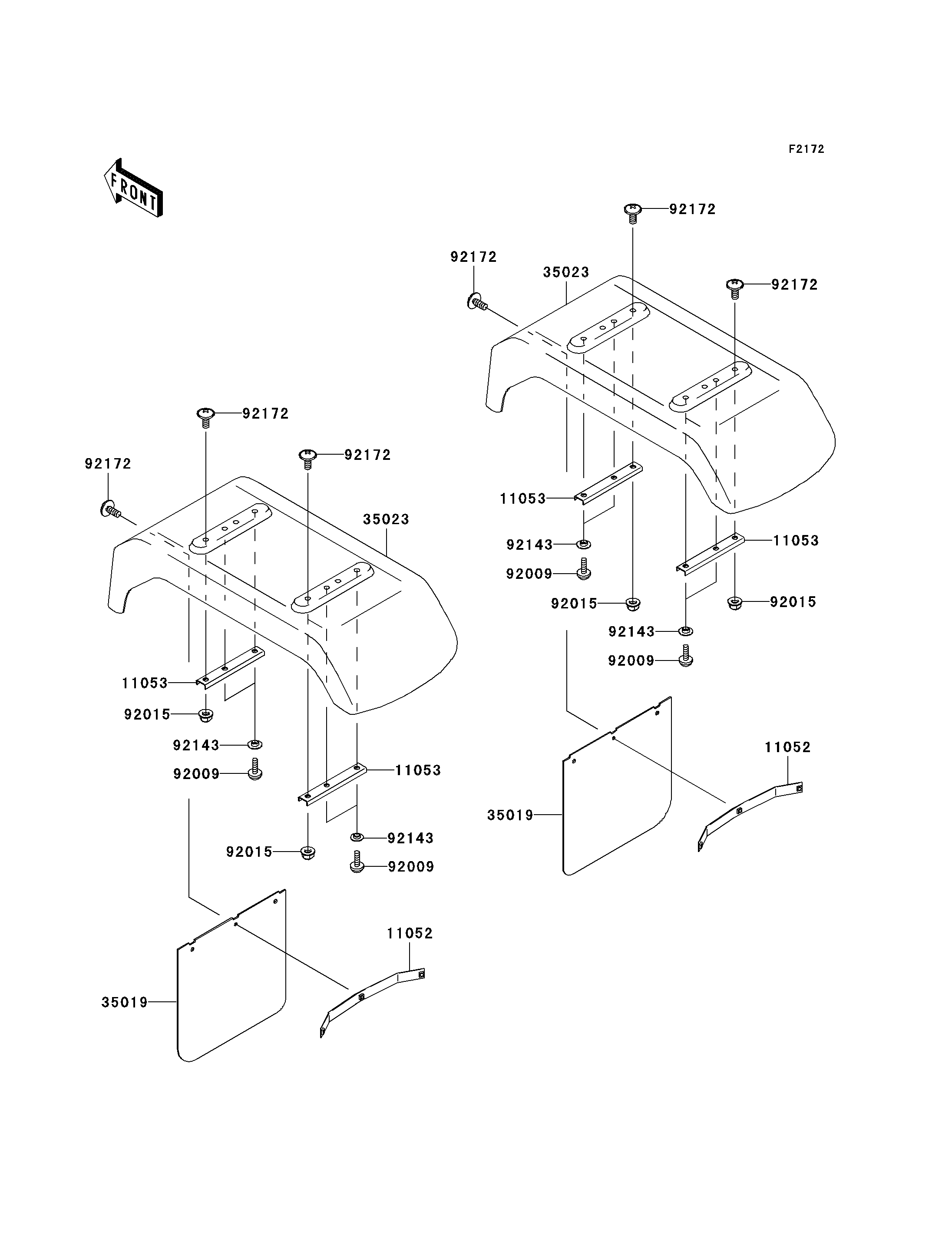

2008 Mule 3010 Trans4x4 Hardwoods Green HD - Rear Fender(s)
11052
11052
11053
11053
11053
11053
35019
35019
35023
35023
92009
92009
92009
92009
92015
92015
92015
92015
92143
92143
92143
92143
92172
92172
92172
92172
92172
92172
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,REAR FLAP | 11052 | 11052-1313 | 2 | ||
| BRACKET,RR FENDER | 11053 | 11053-7558 | 4 | ||
| FLAP,REAR FENDER | 35019 | 35019-1244 | 2 | ||
| FENDER-REAR | 35023 | 35023-1557 | 2 | ||
| SCREW,TAPPING,6X16 | 92009 | 92009-1166 | 8 | ||
| NUT,LOCK,FLANGED,6MM | 92015 | 92015-1675 | 4 | ||
| COLLAR | 92143 | 92143-1087 | 8 | ||
| SCREW,6X14 | 92172 | 92172-0004 | 10 |
| BRACKET,REAR FLAP | |
| REF # | 11052 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BRACKET,RR FENDER | |
| REF # | 11053 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| FLAP,REAR FENDER | |
| REF # | 35019 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| FENDER-REAR | |
| REF # | 35023 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,6X16 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,FLANGED,6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X14 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
