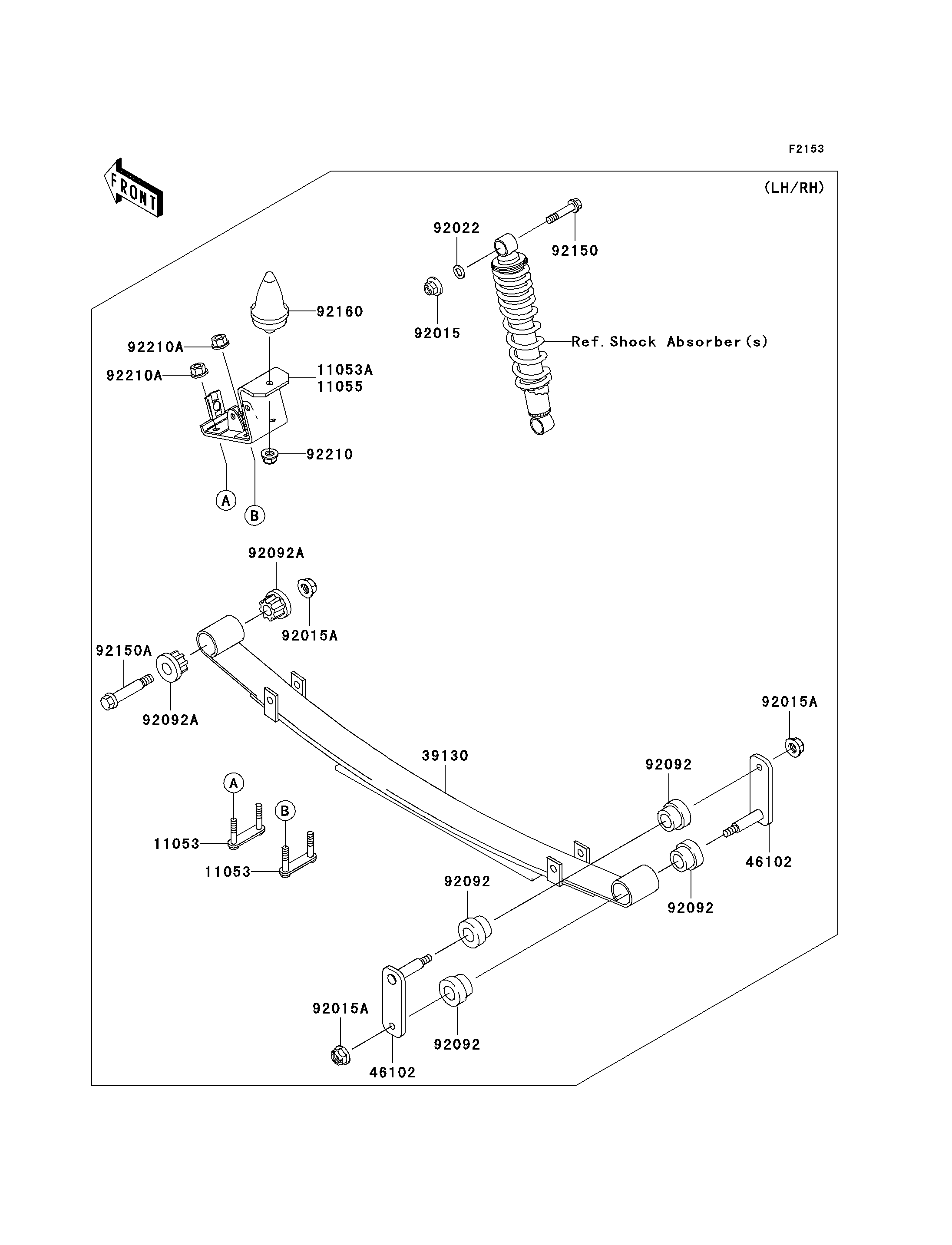

2008 Mule 3010 Trans4x4 Hardwoods Green HD - Rear Suspension
11053
11053
11055
39130
46102
46102
92015
92015A
92015A
92015A
92022
92092
92092
92092
92092
92092A
92092A
92150
92150A
92160
92210
92210A
92210A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,LEAF SPRING | 11053 | 11053-7564 | 4 | ||
| BRACKET,LEAF SPRING | 11055 | 11055-7504 | 2 | ||
| SPRING-LEAF | 39130 | 39130-1066 | 2 | ||
| ROD,LEAF SPRING,RR | 46102 | 46102-1338 | 4 | ||
| NUT,LOCK,10MM | 92015 | 92015-1597 | 4 | ||
| NUT,12MM | 92015A | 92015-1706 | 6 | ||
| WASHER,11.5X20.5X1.6 | 92022 | 92022-1768 | 4 | ||
| BUSHING-RUBBER | 92092 | 92092-1083 | 8 | ||
| BUSHING-RUBBER | 92092A | 92092-1084 | 4 | ||
| BOLT,FLANGED,10X57 | 92150 | 92150-1227 | 4 | ||
| BOLT,12MM | 92150A | 92150-1284 | 2 | ||
| DAMPER,BUMP STOPPER | 92160 | 92160-1136 | 2 | ||
| NUT,LOCK,FLANGED,10MM | 92210 | 92210-0276 | 2 | ||
| NUT,LOCK,10MM | 92210A | 92210-1204 | 8 |
| BRACKET,LEAF SPRING | |
| REF # | 11053 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BRACKET,LEAF SPRING | |
| REF # | 11055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPRING-LEAF | |
| REF # | 39130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| ROD,LEAF SPRING,RR | |
| REF # | 46102 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,10MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,12MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| WASHER,11.5X20.5X1.6 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BUSHING-RUBBER | |
| REF # | 92092 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| BUSHING-RUBBER | |
| REF # | 92092A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X57 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,12MM | |
| REF # | 92150A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,BUMP STOPPER | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,FLANGED,10MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,10MM | |
| REF # | 92210A |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
