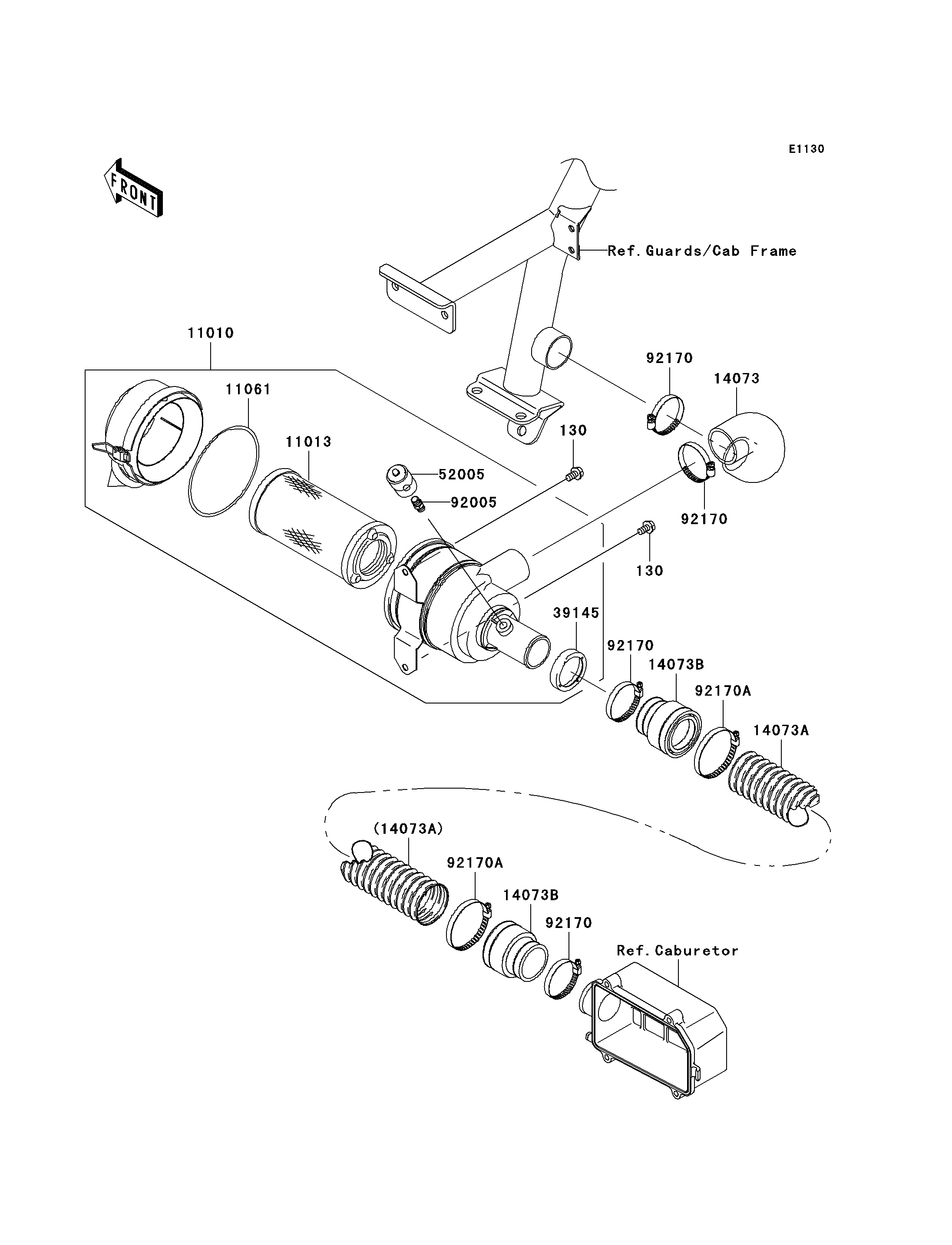

2008 Mule 3010 Trans4x4 Hardwoods Green HD - Air Cleaner
130
130
11010
11013
11061
14073
14073A
14073B
14073B
39145
52005
92005
92170
92170
92170
92170
92170A
92170A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,8X14 | 130 | 130BB0814 | 2 | ||
| FILTER-ASSY-AIR | 11010 | 11010-7501 | 1 | ||
| ELEMENT-AIR FILTER | 11013 | 11013-1290 | 1 | ||
| GASKET,AIR FILTER | 11061 | 11061-1078 | 1 | ||
| DUCT,BAR-AIR FILTER | 14073 | 14073-7501 | 1 | ||
| DUCT | 14073A | 14073-7504 | 1 | ||
| DUCT,ADAPTER | 14073B | 14073-7505 | 2 | ||
| TRIM-SEAL | 39145 | 39145-1133 | 1 | ||
| GAUGE,AIR | 52005 | 52005-7502 | 1 | ||
| FITTING,AIR FILTER | 92005 | 92005-1386 | 1 | ||
| CLAMP | 92170 | 92170-1674 | 4 | ||
| CLAMP | 92170A | 92170-1764 | 2 |
