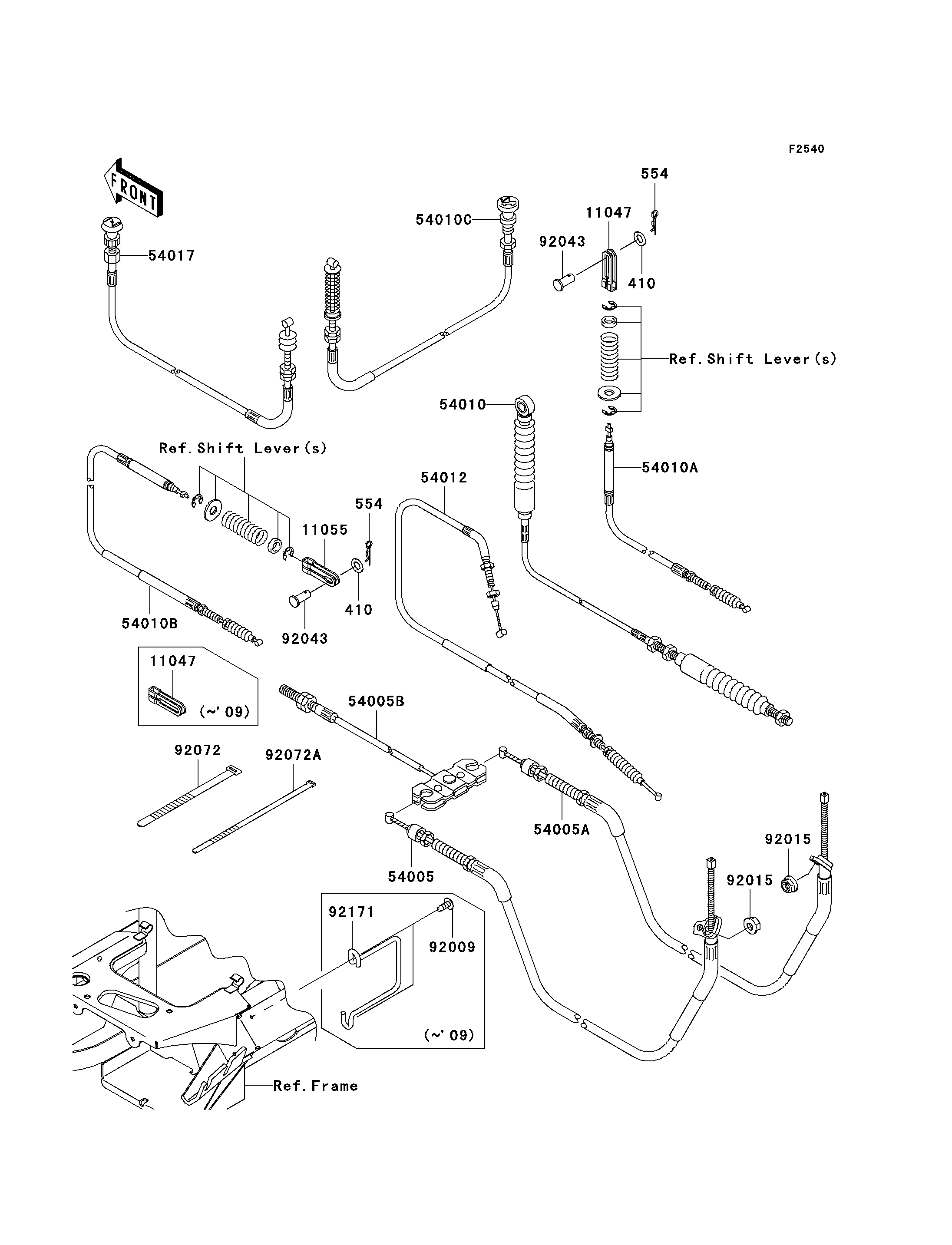

2008 Mule 610 4x4 Hardwoods Green HD - Cables

DOWNLOAD PDF
SELECT A NEW PART
410
410
554
554
11047
11047
54005
54005A
54005B
54010
54010A
54010B
54010C
54012
54017
92009
92015
92015
92043
92043
92072
92072A
92171
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WASHER-PLAIN-SMALL 410 410AA0600 2
PIN-SNAP 554 554DA0600 2
BRACKET,DIFF LOCK 11047 11047-1043 2
CABLE-BRAKE,PARKING,LH 54005 54005-0007 1
CABLE-BRAKE,PARKING,RH 54005A 54005-0008 1
CABLE-BRAKE,PARKING,FR 54005B 54005-1198 1
CABLE,SHIFT CONTROL 54010 54010-0014 1
CABLE,2-4WD 54010A 54010-0015 1
CABLE,DIFF LOCK 54010B 54010-0017 1
CABLE,HOOD 54010C 54010-0026 1
CABLE-THROTTLE 54012 54012-0127 1
CABLE-STARTER 54017 54017-0012 1
SCREW,TAPPING,6X16 92009 92009-1166 2
NUT,LOCK,FLANGED,6MM 92015 92015-1339 2
PIN,6X11 92043 92043-092 2
BAND,L=149 92072 92072-031 2
BAND,L=188 92072A 92072-1239 3
CLAMP 92171 92171-0300 1
