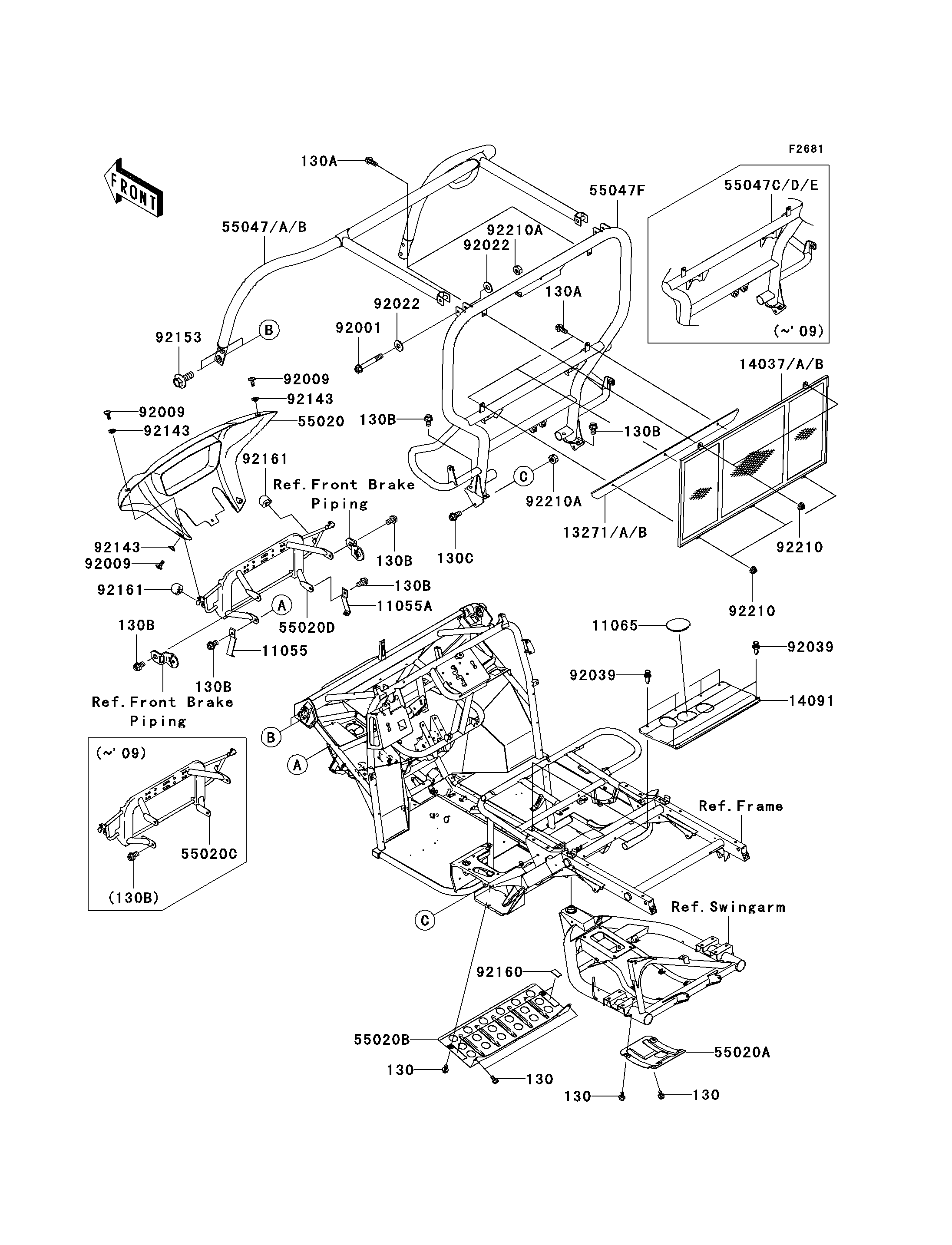

2008 Mule™ 600 - Guards/Cab Frame

DOWNLOAD PDF
SELECT A NEW PART
11065
11065
13271B
13271B
14037B
14037B
14091
14091
55020
55020
55020A
55020A
55020B
55020B
55020C
55020C
55047B
55047B
55047E
55047E
92001
92001
92009
92009
92009
92009
92009
92009
92022
92022
92022
92022
92039
92039
92039
92039
92143
92143
92143
92143
92143
92143
92153
92153
92160
92160
92161
92161
92161
92161
92210
92210
92210
92210
92210A
92210A
92210A
92210A
130
130
130
130
130
130
130
130
130A
130A
130A
130A
130B
130B
130B
130B
130B
130B
130B
130B
130B
130B
130B
130B
130C
130C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,F.BLACK 11065 11065-1053-6Z 1
PLATE,SCREEN,A.RED 13271B 13271-0560-467 1
SCREEN,A.RED 14037B 14037-0035-467 1
COVER 14091 14091-0355 1
GUARD,FRONT BUMPER,F.BLACK 55020 55020-0090-6Z 1
GUARD,DIFF 55020A 55020-0141 1
GUARD 55020B 55020-0143 1
GUARD,FRONT 55020C 55020-0163 1
BAR-COMP,FR,A.RED 55047B 55047-0006-467 1
BAR-COMP,RR,A.RED 55047E 55047-0008-467 1
BOLT,FLANGED,10X70 92001 92001-1618 2
SCREW,6X16 92009 92009-1621 5
WASHER,10.5X26X2.3,BLACK 92022 92022-1396 4
RIVET 92039 92039-1229 6
COLLAR 92143 92143-1087 5
BOLT,FLANGED,14X36 92153 92153-1282 4
DAMPER 92160 92160-1102 2
DAMPER 92161 92161-0157 2
NUT,FLANGED,LOCK,8MM 92210 92210-0005 5
NUT,LOCK,10MM 92210A 92210-1204 4
BOLT-FLANGED,6X12 130 130BB0612 8
BOLT-FLANGED,8X20 130A 130BB0820 5
BOLT-FLANGED,10X16 130B 130BB1016 8
BOLT-FLANGED,10X20 130C 130BB1020 2
PLATE,SCREEN,W.GREEN 13271A 13271-0560-398 1 CAUS
SCREEN,W.GREEN 14037A 14037-0035-398 1 CAUS
BAR-COMP,FR,W.GREEN 55047A 55047-0006-398 1 CAUS
BAR-COMP,RR,W.GREEN 55047D 55047-0008-398 1 CAUS
