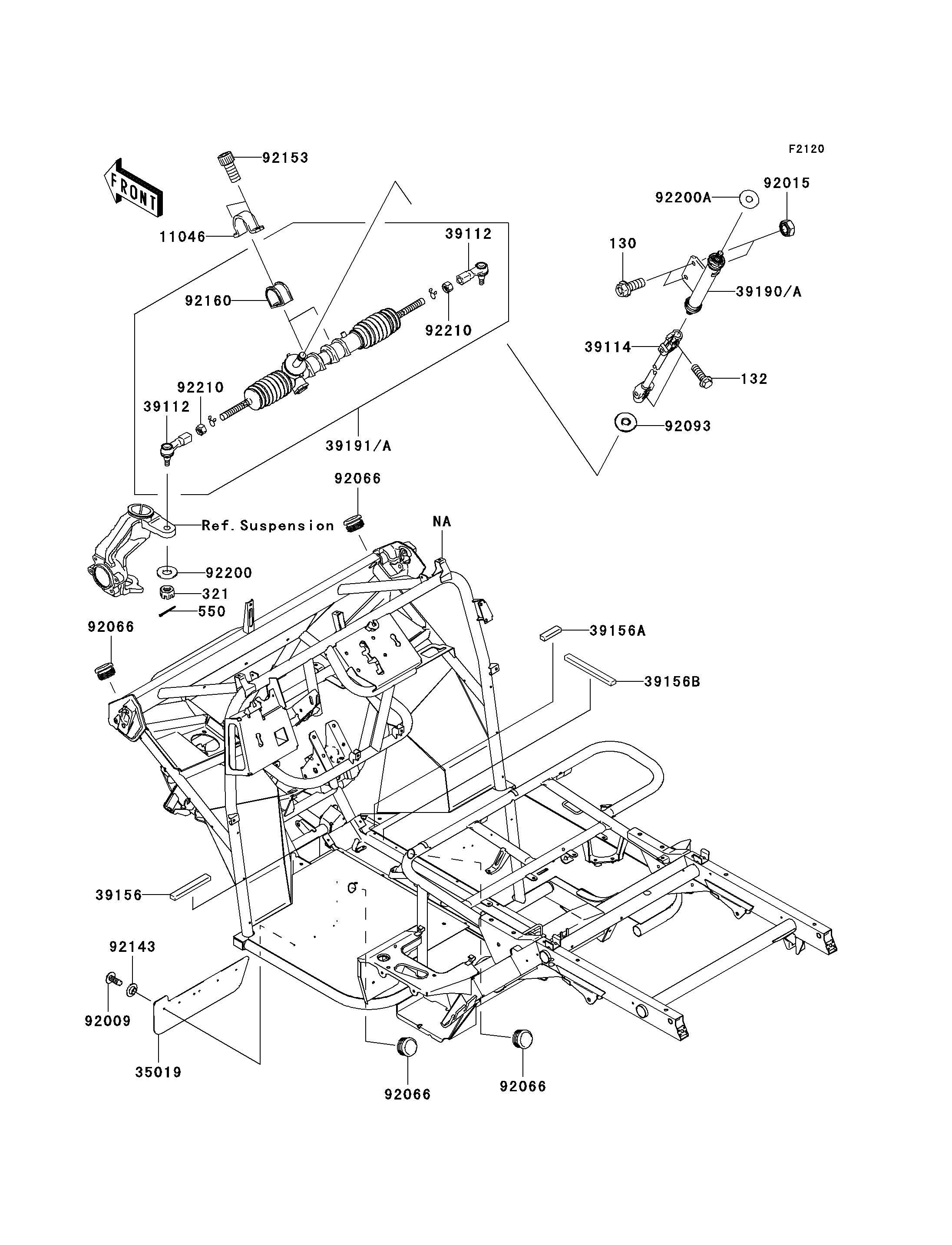

2008 Mule™ 600 - Frame

DOWNLOAD PDF
SELECT A NEW PART
130
132
321
550
11046
35019
39112
39112
39114
39156
39156A
39156B
39190A
39191
92009
92015
92066
92066
92066
92066
92093
92143
92153
92160
92200
92200A
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,10X25 130 130BB1025 2
BOLT-FLANGED-SMALL,8X25 132 132BB0825 2
NUT-CASTLE 321 321BA1000 2
PIN-COTTER,2.0X22 550 550AA2022 2
BRACKET,STEERING GEAR 11046 11046-1858 2
FLAP,FR 35019 35019-0037 2
RODEND-TIE,STEERING GEAR 39112 39112-0008 2
SHAFT-COMP-STRG 39114 39114-0003 1
PAD 39156 39156-0068 1
PAD 39156A 39156-0069 1
PAD 39156B 39156-0070 1
SHAFT-ASSY-STEERING 39190A 39190-0004 1
GEAR-ASSY-STEERING 39191 39191-0014 1
SCREW,TAPPING,6X16 92009 92009-1166 12
NUT,LOCK,10MM,BLACK 92015 92015-1189 2
PLUG 92066 92066-0036 4
SEAL 92093 92093-1313 1
COLLAR 92143 92143-1087 12
BOLT,SOCKET,10X23 92153 92153-1269 4
DAMPER,STEERING GEAR 92160 92160-1084 2
WASHER,10.3X23X1.6 92200 92200-0140 2
WASHER,15X45X0.6 92200A 92200-1130 1
NUT,14MM 92210 92210-0217 2
