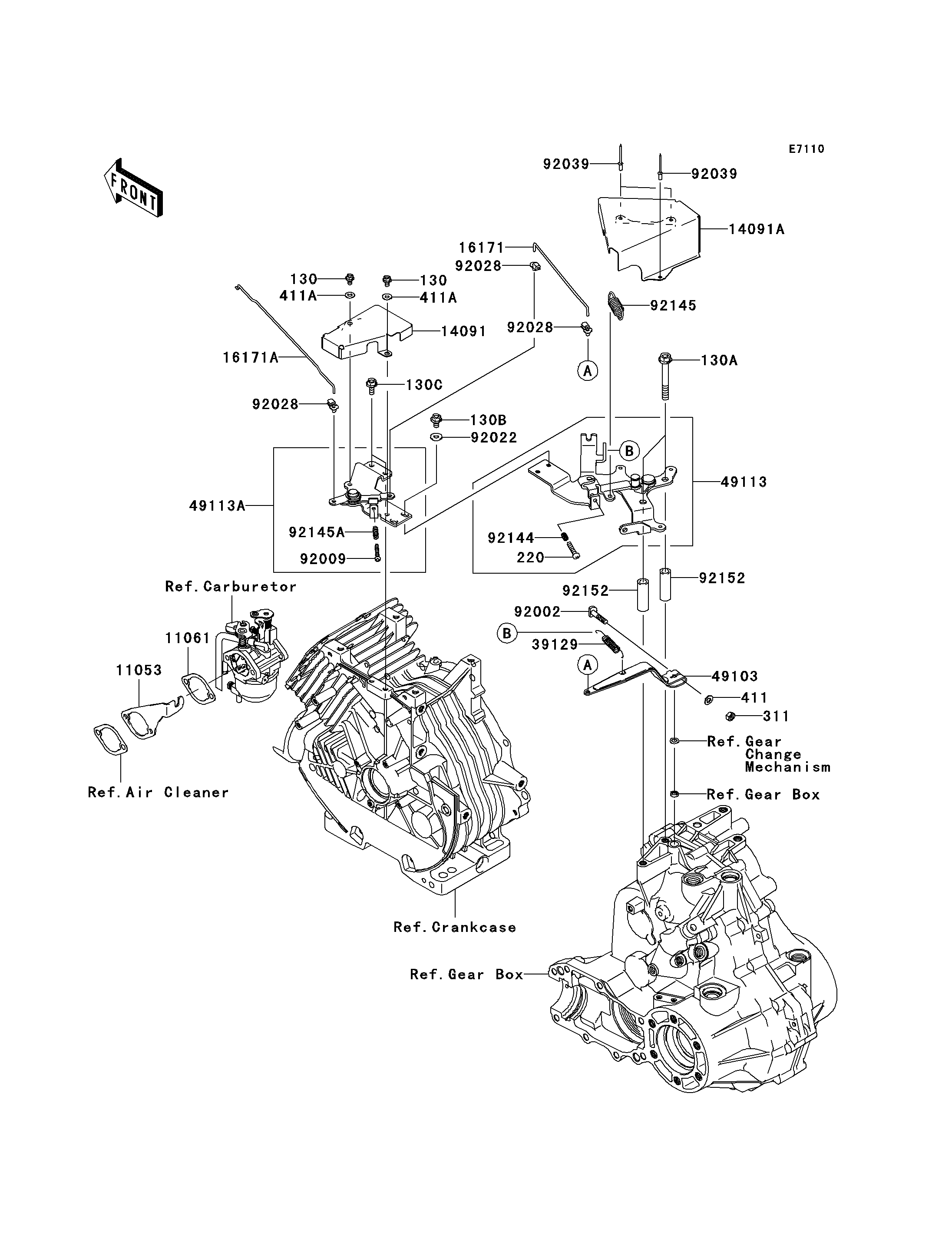

Parts Diagrams |
130
130
130A
130B
130C
220
311
411
411A
411A
11053
11061
14091
14091A
16171
16171A
39129
49103
49113
49113A
92002
92009
92022
92028
92028
92028
92039
92039
92144
92145
92145A
92152
92152
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,5X8 | 130 | 130BA0508 | 2 | ||
BOLT-FLANGED,8X60 | 130A | 130BA0860 | 2 | ||
BOLT-FLANGED,6X10 | 130B | 130BB0610 | 2 | ||
BOLT-FLANGED,6X14 | 130C | 130BB0614 | 2 | ||
SCREW-PAN-CROS,5X22 | 220 | 220AA0522 | 1 | ||
NUT-HEX,6MM | 311 | 311AA0600 | 1 | ||
WASHER-PLAIN,6.5X13X1 | 411 | 411AA0600 | 1 | ||
WASHER-PLAIN,5MM,BLACK | 411A | 411AB0500 | 2 | ||
BRACKET | 11053 | 11053-7026 | 1 | ||
GASKET | 11061 | 11061-7026 | 1 | ||
COVER,FR | 14091 | 14091-0401 | 1 | ||
COVER,RR | 14091A | 14091-0402 | 1 | ||
LINK | 16171 | 16171-0007 | 1 | ||
LINK | 16171A | 16171-2104 | 1 | ||
SPRING-GOVERNOR | 39129 | 39129-0006 | 1 | ||
ARM-GOVERNOR | 49103 | 49103-1055 | 1 | ||
PANEL-COMP-CONTROL | 49113 | 49113-0004 | 1 | ||
PANEL-COMP-CONTROL | 49113A | 49113-2196 | 1 | ||
BOLT,6X28 | 92002 | 92002-2269 | 1 | ||
SCREW,4X30 | 92009 | 92009-7002 | 1 | ||
WASHER,6.2X15.0X1.2 | 92022 | 92022-2373 | 2 | ||
BUSHING,GOVERNOR | 92028 | 92028-2156 | 3 | ||
RIVET,BLIND,4.0X9.2 | 92039 | 92039-1163 | 3 | ||
SPRING | 92144 | 92144-2266 | 1 | ||
SPRING,RETURN | 92145 | 92145-0301 | 1 | ||
SPRING | 92145A | 92145-7005 | 1 | ||
COLLAR,9.1X13.95X42 | 92152 | 92152-7501 | 2 |
BOLT-FLANGED,5X8 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,8X60 | |
REF # | 130A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,6X10 | |
REF # | 130B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED,6X14 | |
REF # | 130C |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW-PAN-CROS,5X22 | |
REF # | 220 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
NUT-HEX,6MM | |
REF # | 311 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER-PLAIN,6.5X13X1 | |
REF # | 411 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER-PLAIN,5MM,BLACK | |
REF # | 411A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BRACKET | |
REF # | 11053 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GASKET | |
REF # | 11061 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,FR | |
REF # | 14091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,RR | |
REF # | 14091A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LINK | |
REF # | 16171 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LINK | |
REF # | 16171A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING-GOVERNOR | |
REF # | 39129 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ARM-GOVERNOR | |
REF # | 49103 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PANEL-COMP-CONTROL | |
REF # | 49113 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PANEL-COMP-CONTROL | |
REF # | 49113A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,6X28 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW,4X30 | |
REF # | 92009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,6.2X15.0X1.2 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BUSHING,GOVERNOR | |
REF # | 92028 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
RIVET,BLIND,4.0X9.2 | |
REF # | 92039 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
SPRING | |
REF # | 92144 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,RETURN | |
REF # | 92145 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING | |
REF # | 92145A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR,9.1X13.95X42 | |
REF # | 92152 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
