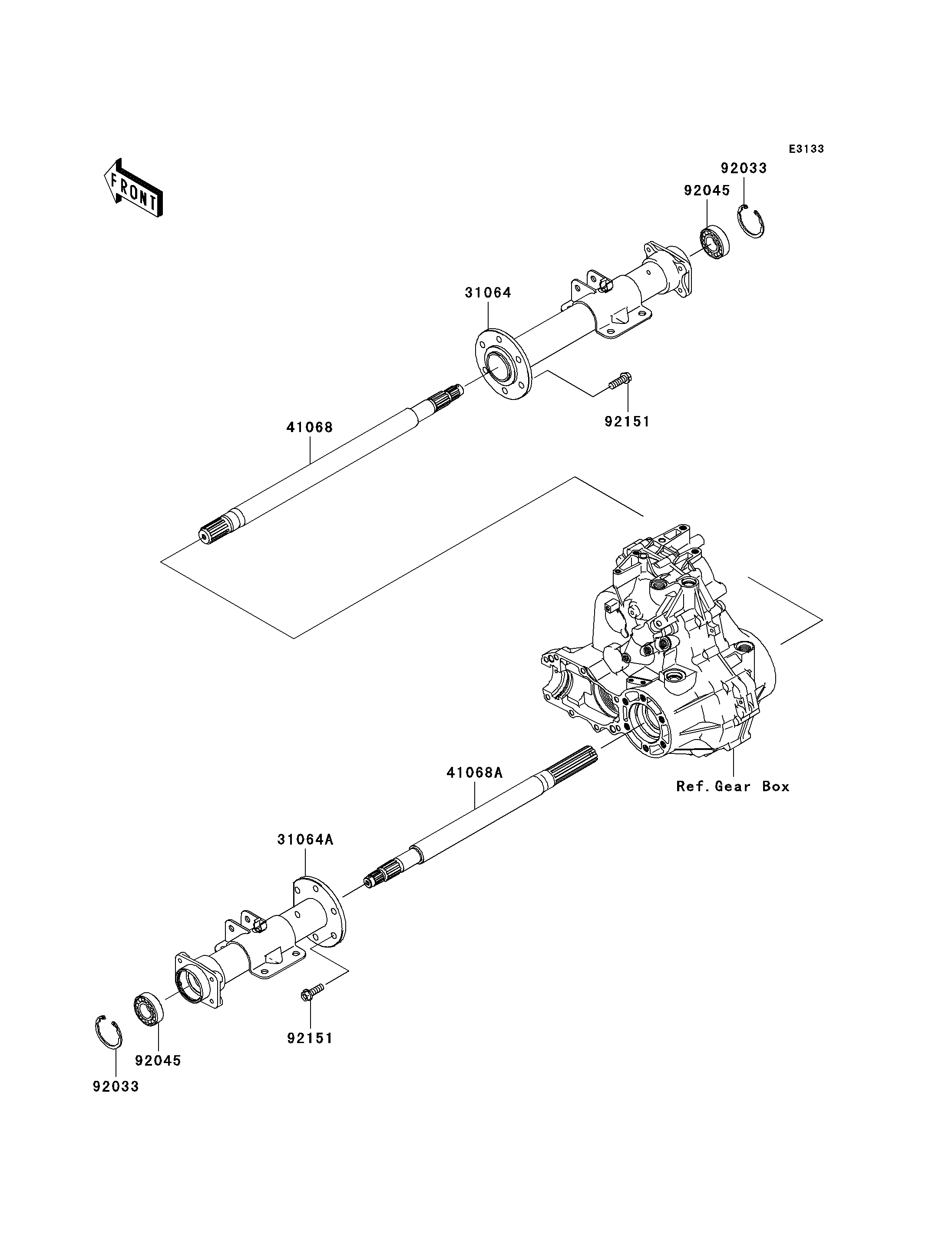

31064
31064A
41068
41068A
92033
92033
92045
92045
92151
92151
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIPE-COMP,RH 31064 31064-0037 1
PIPE-COMP,LH 31064A 31064-0038 1
AXLE,RH 41068 41068-0036 1
AXLE,LH 41068A 41068-0037 1
RING-SNAP 92033 92033-2149 2
BEARING-BALL,6205A26DDU2 92045 92045-0044 2
BOLT,10X28 92151 92151-2142 12
