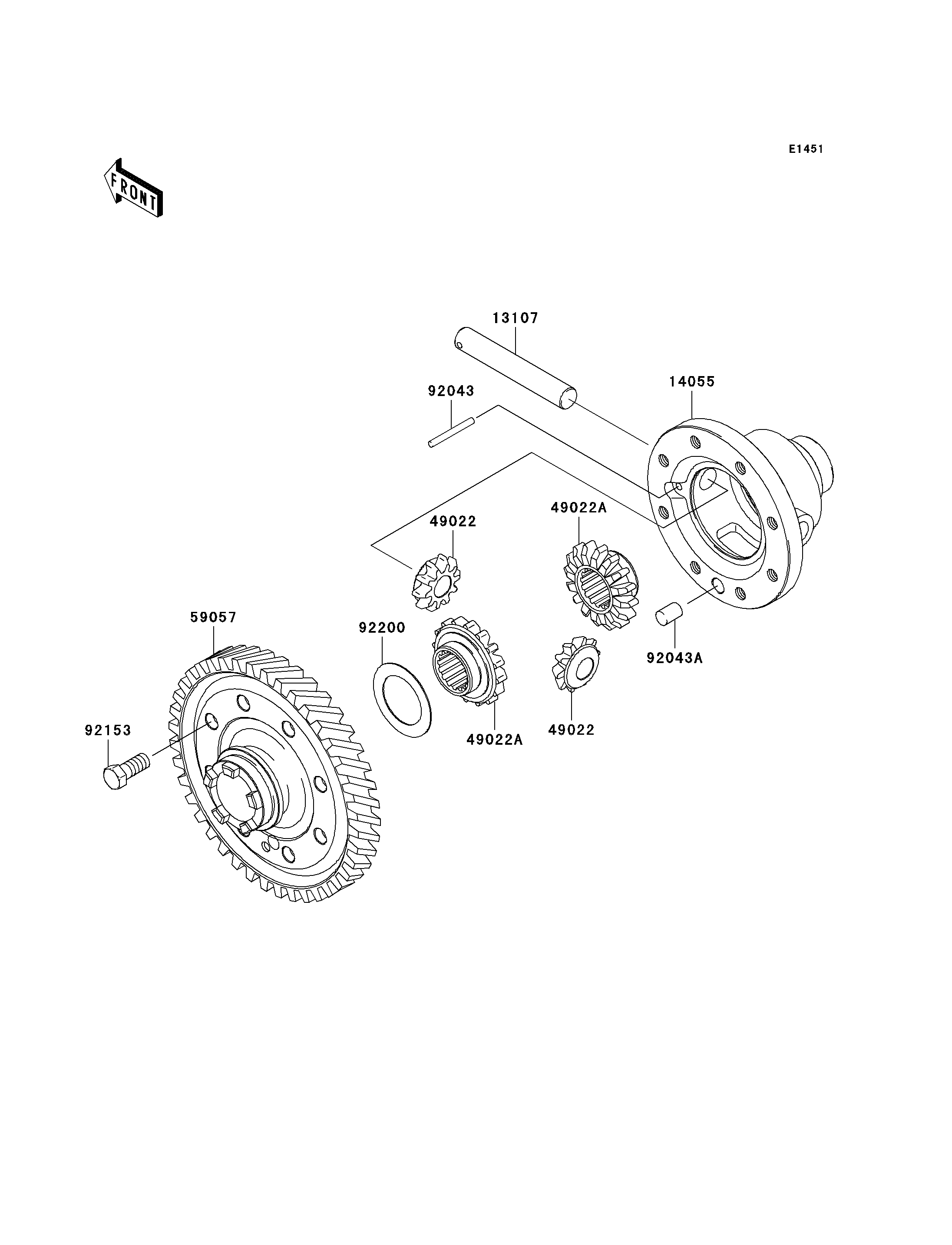

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT,DIFF-GEAR CASE 13107 13107-0042 1
CASE-GEAR,DIFF 14055 14055-0016 1
GEAR-BEVEL,10T 49022 49022-0018 2
GEAR-BEVEL,16T 49022A 49022-0019 2
GEAR-HELICAL,64T 59057 59057-0005 1
PIN,4X37.8 92043 92043-0052 1
PIN,10X14 92043A 92043-1506 1
BOLT,10X22 92153 92153-0590 8
WASHER 92200 92200-1077 1
